Speed Camera for Students Safety

We are inspired by a case that called "세월호(MV Sewol)." So we made this camera for students safety.

IntermediateShowcase (no instructions)10 hours1,821

Things used in this project

Hardware components

LED (generic)

Jumper wires (generic)

Arduino UNO

Ultrasonic Sensor - HC-SR04 (Generic)

Buzzer

Hand tools and fabrication machines

Laser cutter (generic)

3D Printer (generic)

Story

Development motivation

Do you hear "Insensitivity to Safety"?

Insensitivity to Safety is a symptom of people who believe that all things are safe and that there is no danger.

And here is a famous example.

It is "Sinking of MV Sewol".

This incident hurt the hearts of many people.

And we found out that the incident occurred because of other factors and Insensitivity to Safety.

By the way, at lunchtime in school, we saw a lot of students rushing to the hall in order to get meal to get more quickly.

And we thought that these students would be badly hurt.

So we made this speed camera to contribute to the safety of the students.

Why should we walk?

According to the "학교 안전사고 원인의 심층분석에 관한 연구", Most of safety accidents in school have occured during the break and lunch time.

The safety accident in moving (17.1%) are the largest portion of accidents, excepting for the accident in playing soccer (26.6%).

This is why we should walk in the school.

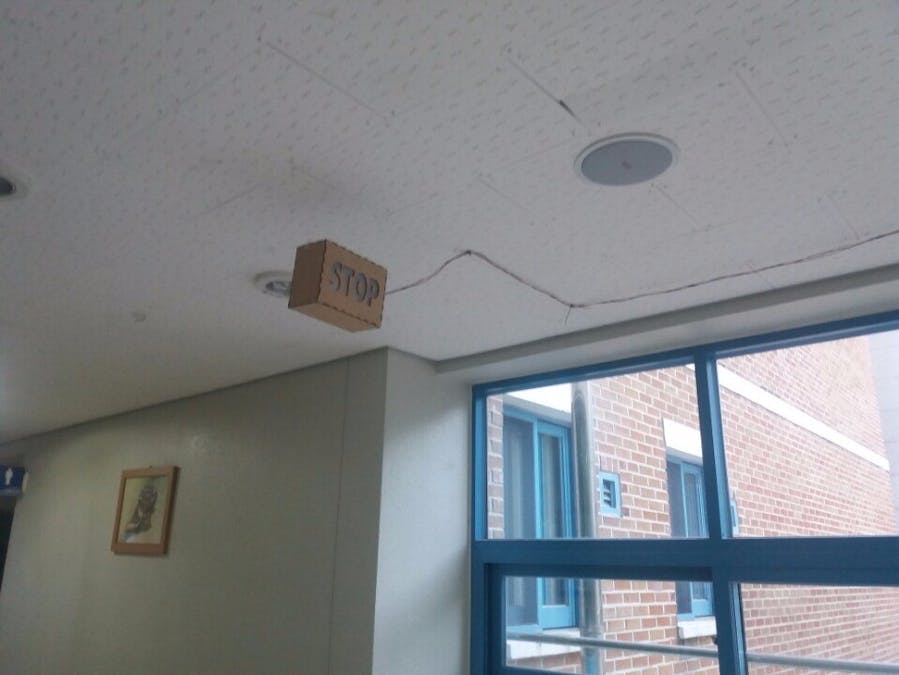

How to use it?

When a group of students is running

When student is running

When student is walking

Buzzer and LED(left top), Sensor(middle)

Production process

1 / 3 • Buzzer and LED(test)

Testing video

Expected effect

This device will be attract students to reduce speed with sounds of warning tones and catchy glare.

Code

speed camera code

#include <Servo.h>

#define BUZZ 2
#define T1 3
#define T2 4
#define E1 5
#define E2 6
#define servoPin 9
#define LED 13

Servo servo;

float wall1, wall2;
int school = 0;

void setup()
{
  Serial.begin(9600);
  pinMode(BUZZ, OUTPUT);
  pinMode(T1, OUTPUT);
  pinMode(T2, OUTPUT);
  pinMode(E1, INPUT);
  pinMode(E2, INPUT);
  pinMode(LED, OUTPUT);
  servo.attach(servoPin);
  get_dis(T1, E1);get_dis(T2, E2);get_dis(T1, E1);get_dis(T2, E2);
  get_dis(T1, E1);get_dis(T2, E2);get_dis(T1, E1);get_dis(T2, E2);
  Serial.println(wall1 = get_dis(T1, E1));
  Serial.println(wall2 = get_dis(T2, E2));
}

void loop()
{
  bool B = false;
  long Time = 0;
  while (1)
  {
    if (check_super(T1, E1, wall1) == 1)
      { B = true; Time = millis(); break; }
    else if (check_super(T2, E2, wall2) == 1)
      { B = false; Time = millis(); break; }
    if (check_super(T1, E1, wall1) == 2)
      { return; }
    else if (check_super(T2, E2, wall2) == 2)
      { return; }
  }
  delay(50);
  if (B)
    while (1)
    {
      if (check_super(T2, E2, wall2) == 1)
      {
        Time = millis() - Time;
        break;
      }
      else if (millis() - Time > 1000)
        break;
    if (check_super(T1, E1, wall1) == 2)
      { return; }
    }
  else
    while (1)
    {
      if (check_super(T1, E1, wall1) == 1)
      {
        Time = millis() - Time;
        break;
      }
      else if (millis() - Time > 1000)
        break;
    else if (check_super(T2, E2, wall2) == 2)
      { return; }
    }
  if (Time < 300)
  {
    BUZZER(2000);
    digitalWrite(LED, LOW);
  }
  delay(1000);
}

int check_super(int tri, int echo, float wall)
{
  delay(10);
  float F = get_dis(tri, echo);
  Serial.println(F);
  int B = ((wall * (float)4) / (float)5 > F) ? 1 : 0;
  B = (F > (float)1000) ? 2 : B;
  delay(10);
  return B;
}

float get_dis(int tri, int echo)
{
  digitalWrite(tri, HIGH);
  delayMicroseconds(15);
  digitalWrite(tri, LOW);
  delayMicroseconds(10);
  float dis = 0.017 * pulseIn(echo, HIGH);
  return dis;
}

void BUZZER(int T)
{
  long Time = T + millis();
  int delayed_T = 0, LED_state = HIGH;
  while(1)
  {
    digitalWrite(BUZZ, HIGH);
    delay(1);
    digitalWrite(BUZZ, LOW);
    delay(1);
    if (millis() > Time)
      break;
    delayed_T += 2;
    if (delayed_T > 100)
    {
      digitalWrite(LED, LED_state);
      LED_state = (LED_state == HIGH) ? LOW : HIGH;
      delayed_T = 0;
    }
  }
}
