Counting Steps using Arduino and Accelerometer

Let's see how to build an easy DIY Pedometer with the help of Arduino and accelerometer.

Counting Steps using Arduino and Accelerometer

Things used in this project

Hardware components

Arduino Nano R3
Arduino Nano R3
×1
ADXL 335 Accelerometer
×1
16*2 LCD
×1
I2C 16x2 Arduino LCD Display Module
DFRobot I2C 16x2 Arduino LCD Display Module
×1

Software apps and online services

Arduino IDE
Arduino IDE

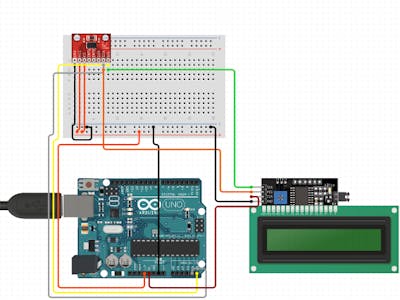

Story

Read more

Code

Run a Program

Arduino
#include <LiquidCrystal_I2C.h>
LiquidCrystal_I2C lcd(0x27, 16, 2);
const int xpin = A1;
const int ypin = A2;
const int zpin = A3;
byte p[8] = {
  0x1F,
  0x1F,
  0x1F,
  0x1F,
  0x1F,
  0x1F,
  0x1F,
  0x1F
};
float threshold = 6;
float xval[100] = {0};
float yval[100] = {0};
float zval[100] = {0};
float xavg, yavg, zavg;
int steps, flag = 0;
void setup()
{
  Serial.begin(9600);
  lcd.begin();
  lcd.backlight();
  lcd.clear();
  calibrate();
}
void loop()
{
  for (int w = 0; w < 16; w++) {
    lcd.write(byte(0));
    delay(500);
  }
  int acc = 0;
  float totvect[100] = {0};
  float totave[100] = {0};
  float xaccl[100] = {0};
  float yaccl[100] = {0};
  float zaccl[100] = {0};
  for (int a = 0; a < 100; a++)
  {
    xaccl[a] = float(analogRead(xpin) - 345);
    delay(1);
    yaccl[a] = float(analogRead(ypin) - 346);
    delay(1);
    zaccl[a] = float(analogRead(zpin) - 416);
    delay(1);
    totvect[a] = sqrt(((xaccl[a] - xavg) * (xaccl[a] - xavg)) + ((yaccl[a] - yavg) * (yaccl[a] - yavg)) + ((zval[a] - zavg) * (zval[a] - zavg)));
    totave[a] = (totvect[a] + totvect[a - 1]) / 2 ;
    Serial.println("totave[a]");
    Serial.println(totave[a]);
    delay(100);
    if (totave[a] > threshold && flag == 0)
    {
      steps = steps + 1;
      flag = 1;
    }
    else if (totave[a] > threshold && flag == 1)
    {
      // Don't Count
    }
    if (totave[a] < threshold   && flag == 1)
    {
      flag = 0;
    }
    if (steps < 0) {
      steps = 0;
    }
    Serial.println('\n');
    Serial.print("steps: ");
    Serial.println(steps);
    lcd.print("Steps: ");
    lcd.print(steps);
    delay(1000);
    lcd.clear();
  }
  delay(1000);
}
void calibrate()
{
  float sum = 0;
  float sum1 = 0;
  float sum2 = 0;
  for (int i = 0; i < 100; i++) {
    xval[i] = float(analogRead(xpin) - 345);
    sum = xval[i] + sum;
  }
  delay(100);
  xavg = sum / 100.0;
  Serial.println(xavg);
  for (int j = 0; j < 100; j++)
  {
    yval[j] = float(analogRead(ypin) - 346);
    sum1 = yval[j] + sum1;
  }
  yavg = sum1 / 100.0;
  Serial.println(yavg);
  delay(100);
  for (int q = 0; q < 100; q++)
  {
    zval[q] = float(analogRead(zpin) - 416);
    sum2 = zval[q] + sum2;
  }
  zavg = sum2 / 100.0;
  delay(100);
  Serial.println(zavg);
}
