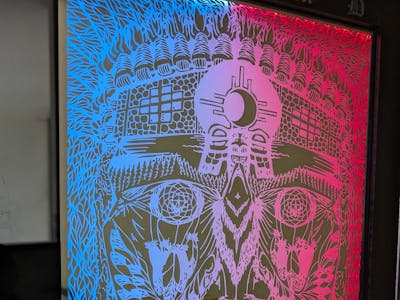

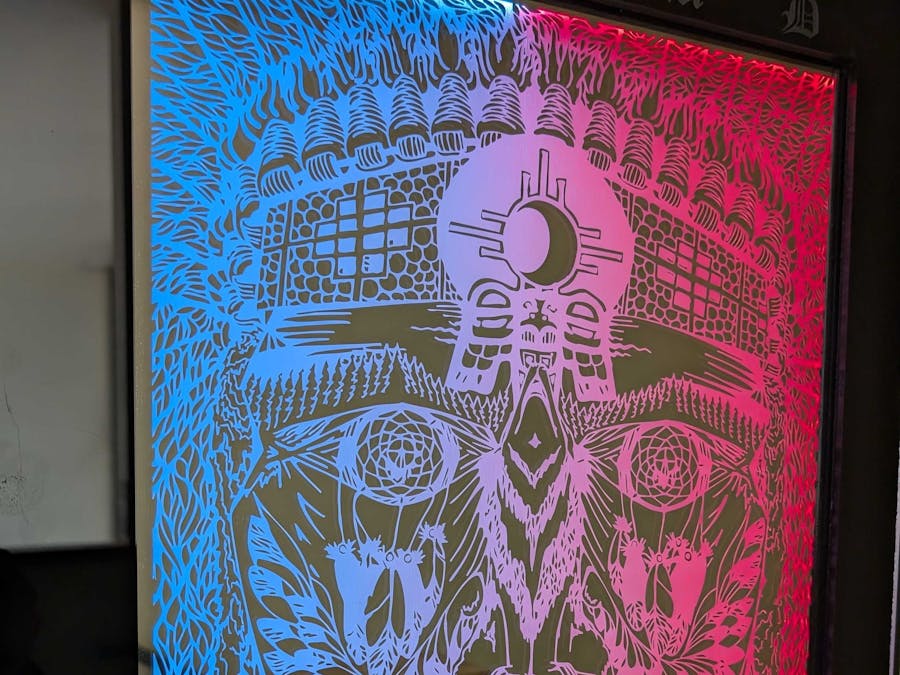

Tread Lightly

#include "Particle.h"
#include "IoTClassroom_CNM.h"
#include "Button.h"
#include "colors.h"
#include <math.h>
#include <neopixel.h>
#include <credentials.h>
#include "Adafruit_MQTT.h"
#include "Adafruit_MQTT/Adafruit_MQTT_SPARK.h"
#include "Adafruit_MQTT/Adafruit_MQTT.h"

unsigned int last, lastTime;
float buttonOnOff;
float pirsensorValue;
const int PIXELCOUNT = 113;
const int PIR_SENSOR_OUTPUT_PIN = D4;
int some_long_process_within_loop;
const float amplitude = 127.5;
const float offset = 127.5;
float frequency = .2;
float t;
float brightness;

TCPClient TheClient;
Adafruit_MQTT_SPARK mqtt(&TheClient,AIO_SERVER,AIO_SERVERPORT,AIO_USERNAME,AIO_KEY);
Adafruit_MQTT_Subscribe buttonOnOffFeed = Adafruit_MQTT_Subscribe(&mqtt, AIO_USERNAME "/feeds/buttonOnOff");
Adafruit_MQTT_Publish pirsensorFeed = Adafruit_MQTT_Publish(&mqtt, AIO_USERNAME "/feeds/pirsensor");

Adafruit_NeoPixel pixel (PIXELCOUNT,SPI1,WS2812B);
void PixelFill(int startPixel, int endPixel, int color);

ApplicationWatchdog *wd;
void watchdogHandler() {
   System.reset(RESET_NO_WAIT);
}

void MQTT_connect();
bool MQTT_ping();
void WebPublish();

SYSTEM_MODE(AUTOMATIC);


void setup() {
pinMode (PIXELCOUNT,OUTPUT);
pinMode(PIR_SENSOR_OUTPUT_PIN, INPUT);

Serial.begin(9600);
waitFor(Serial.isConnected,10000);

pixel.begin();
pixel.setBrightness(255);
pixel.show();

mqtt.subscribe(&buttonOnOffFeed);

wd = new ApplicationWatchdog(60000, watchdogHandler, 1536);

}


void loop() {

int sensor_output;
sensor_output = digitalRead(PIR_SENSOR_OUTPUT_PIN);

MQTT_connect();
MQTT_ping();

Adafruit_MQTT_Subscribe *subscription;
  while ((subscription = mqtt.readSubscription(100))) {
    if (subscription == &buttonOnOffFeed) {
      buttonOnOff = atof((char *)buttonOnOffFeed.lastread);
    }
  }

//Button
   if(buttonOnOff == true) {
      PixelFill(19,69,turquoise);
      PixelFill(70,113,red);
      PixelFill(0,18,red);
      Serial.printf("FEAST DAY %f\n",buttonOnOff);
      }
   pixel.show();
   delay(2500);
   pixel.clear();

//Narrative:
if(sensor_output == HIGH) {
Serial.printf("Sunrise %i\n",sensor_output);
PixelFill(86,113,red);
   delay(1000);
      PixelFill(0,13,red);
      PixelFill(74,85,red);
      delay(1000);
       PixelFill(14,28,blue);
       PixelFill(60,73,blue);
       delay(1000);
         PixelFill(29,59,yellow);
         delay(1000);

         delay(2000);
         pixel.clear();

   PixelFill(98,113,yellow);
   delay(1000);
   PixelFill(0,18,red);
   delay(1000);
   PixelFill(19,31,red);
   delay(1000);
   PixelFill(32,44,violet);
   delay(1000);
      PixelFill(45,54,violet);
      delay(1000);
      PixelFill(55,69,red);
      delay(1000);
      PixelFill(70,84,red);
      delay(1000);
      PixelFill(85,97,yellow);
      delay(1000);

      delay(2000);
      pixel.clear();

Serial.printf("Time Warp Reverse %i\n",sensor_output);
         PixelFill(98,113,green);
         PixelFill(0,44,green);
         PixelFill(45,97,red);
         delay(1000);

         delay(2000);
         pixel.clear();

PixelFill(0,55,yellow);
PixelFill(56,113,purple);
delay(2000);
pixel.clear();

   PixelFill(20,68,olive);
   PixelFill(69,113,chocolate);
   PixelFill(0,19,chocolate);
   delay(2000);
   pixel.clear();

PixelFill(0,32,blue);
PixelFill(33,86,orange);
PixelFill(87,113,blue);
delay(2000);
pixel.clear();

Serial.printf("Ceremony Dance %i\n",sensor_output);
PixelFill(20,68,red);
PixelFill(69,113,orange);
PixelFill(0,19,orange);
delay(500);
pixel.clear();
   PixelFill(20,68,orange);
   PixelFill(69,113,yellow);
   PixelFill(0,19,yellow);
   delay(500);
   pixel.clear();
      PixelFill(20,68,yellow);
      PixelFill(69,113,green);
      PixelFill(0,19,green);
      delay(500);
      pixel.clear();
         PixelFill(20,68,green);
         PixelFill(69,113,blue);
         PixelFill(0,19,blue);
         delay(500);
         pixel.clear();
            PixelFill(20,68,blue);
            PixelFill(69,113,indigo);
            PixelFill(0,19,indigo);
            delay(500);
            pixel.clear();
               PixelFill(20,68,indigo);
               PixelFill(69,113,violet);
               PixelFill(0,19,violet);
               delay(500);
               pixel.clear();

Serial.printf("Time Warp Present %i\n",sensor_output);
         PixelFill(98,113,red);
         PixelFill(0,44,red);
         PixelFill(45,97,green);
         delay(1000);

         delay(2000);
         pixel.clear();

PixelFill(56,113,yellow);
PixelFill(0,55,purple);
delay(2000);
pixel.clear();

   PixelFill(20,68,chocolate);
   PixelFill(69,113,olive);
   PixelFill(0,19,olive);
   delay(2000);
   pixel.clear();

PixelFill(0,32,orange);
PixelFill(33,86,blue);
PixelFill(87,113,orange);
delay(2000);
pixel.clear();

Serial.printf("Sunset %i\n",sensor_output);
      PixelFill(85,97,yellow);
      delay(1000);
      PixelFill(70,84,red);
      delay(1000);
      PixelFill(55,69,red);
      delay(1000);
      PixelFill(45,54,violet);
      delay(1000);
   PixelFill(32,44,violet);
   delay(1000);
   PixelFill(19,31,red);
   delay(1000);
   PixelFill(0,18,red);
   delay(1000);
   PixelFill(98,113,yellow);
   delay(1000);

   delay(2000);
   pixel.clear();

         PixelFill(29,59,yellow);
         delay(1000);
       PixelFill(14,28,blue);
       PixelFill(60,73,blue);
       delay(1000);
      PixelFill(0,13,red);
      PixelFill(74,85,red);
      delay(1000);
   PixelFill(86,113,red);
   delay(1000);

   delay(2000);
   pixel.clear();

t = millis()/1000.0;
brightness = amplitude*sin(2*M_PI*frequency*t)+offset;
analogWrite (PIXELCOUNT,brightness);
}
pixel.show();

//OFF
      if(sensor_output == LOW) {
         PixelFill(0,113,black);
            Serial.printf("shapeShift = %i\n",sensor_output);
      }
      pixel.show();

//Data Dashboard
if((millis()-lastTime > 6000)) {
    if(mqtt.Update()) {

      pirsensorFeed.publish(sensor_output);
      Serial.printf("7 Generations = %i \n",sensor_output);
      }
    lastTime = millis();
  }

while (some_long_process_within_loop) {
   ApplicationWatchdog::checkin();
  }

 WebPublish();

}


//END

void PixelFill(int startPixel, int endPixel, int color) {
    int litPixel;;

   for(litPixel=startPixel;litPixel<=endPixel;litPixel++) {
      pixel.setPixelColor(litPixel,color);
   }
   pixel.show();
   delay(100);

}

void MQTT_connect() {
  int8_t ret;

  if (mqtt.connected()) {
    return;
  }

  while ((ret = mqtt.connect()) != 0) {
       Serial.printf("Error Code %s\n",mqtt.connectErrorString(ret));
       Serial.printf("Retrying MQTT connection in 5 seconds...\n");
       mqtt.disconnect();
       delay(5000);  // wait 5 seconds and try again
  }
  Serial.printf("MQTT Connected!\n");
}

bool MQTT_ping() {
  static unsigned int last;
  bool pingStatus;

  if ((millis()-last)>120000) {
      Serial.printf("Pinging MQTT \n");
      pingStatus = mqtt.ping();
      if(!pingStatus) {
        Serial.printf("Disconnecting \n");
        mqtt.disconnect();
      }
      last = millis();
  }
  return pingStatus;
}

void WebPublish() {
  static int PIRSensorTimer;

if((millis()-PIRSensorTimer>5000)) {
    if (mqtt.Update()) {
      pirsensorFeed.publish(PIR_SENSOR_OUTPUT_PIN);
      }

  PIRSensorTimer = millis();
  }
}
