Sequential LED Lighting

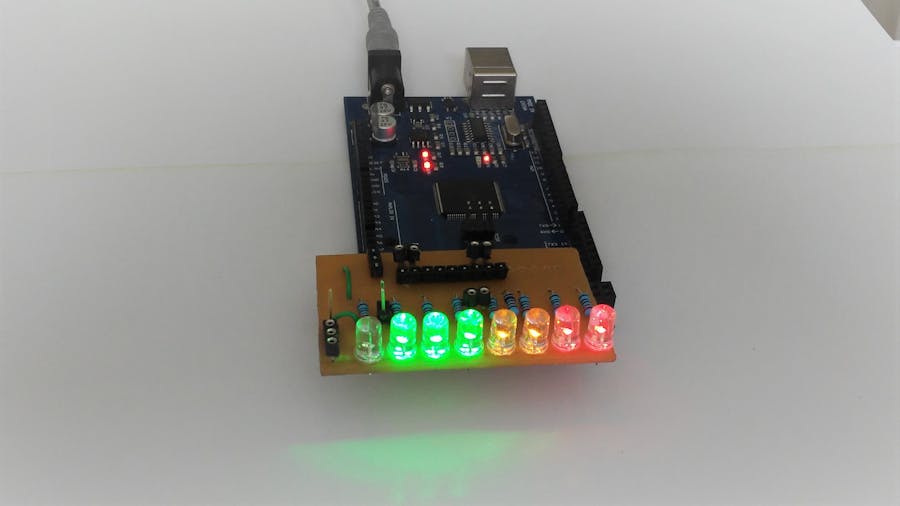

A sequential LED lights that come and go.

BeginnerFull instructions provided9,025
Sequential LED Lighting

Things used in this project

Hardware components

Arduino Mega 2560
Arduino Mega 2560
×1
Resistor 221 ohm
Resistor 221 ohm
×8
LED (generic)
LED (generic)
×8
Breadboard (generic)
Breadboard (generic)
×1

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Schematics

Protoboard schematic

In this image we have how to link the wires, resistors, LEDS to the arduino board.

Esquema

Code

Sequential LEDS

Arduino
just open on your IDE Arduino
/* SEQUENTIAL LEDS
 * by Jomar B Amaral
 * jomar.amaral@gmail.com for more information
 * with small modifications on this code many different sequences are possible
 */

int ledPin[] = {38, 40, 42, 44, 46, 48, 50, 52}; //pins used, you can modify to you arduino board
int i = 38; //you can modify to you arduino board, i is the first pin your led is connected
int x = 52; //you can modify to you arduino board, x is the last pin your led is connected

void setup()
{
  for (int j=0; j<9; j++)
  {
   pinMode(ledPin[j], OUTPUT); // configura pino digital como sada
  }
}

void loop()
{
   for (i; i <= 52; i++)
    {
   digitalWrite(i,HIGH);
   delay(100);  // optional delay, in this case leds turn on one by one by 100 ms
    }
  {
    for (x; x >= 38; x--)
    {
    digitalWrite(x,LOW);
    delay(100);  //leds turn off one by one by 100 ms
    }
     {
      x=52; //optional
      i=38; //optional
      }
   }
}
