Texas Instruments RSLK / MeArm

Control a 4 degrees of freedom robotic clamping arm over Wi-Fi using the TI RSLK and two MSP432s!

AdvancedWork in progressOver 1 day189

Things used in this project

Hardware components

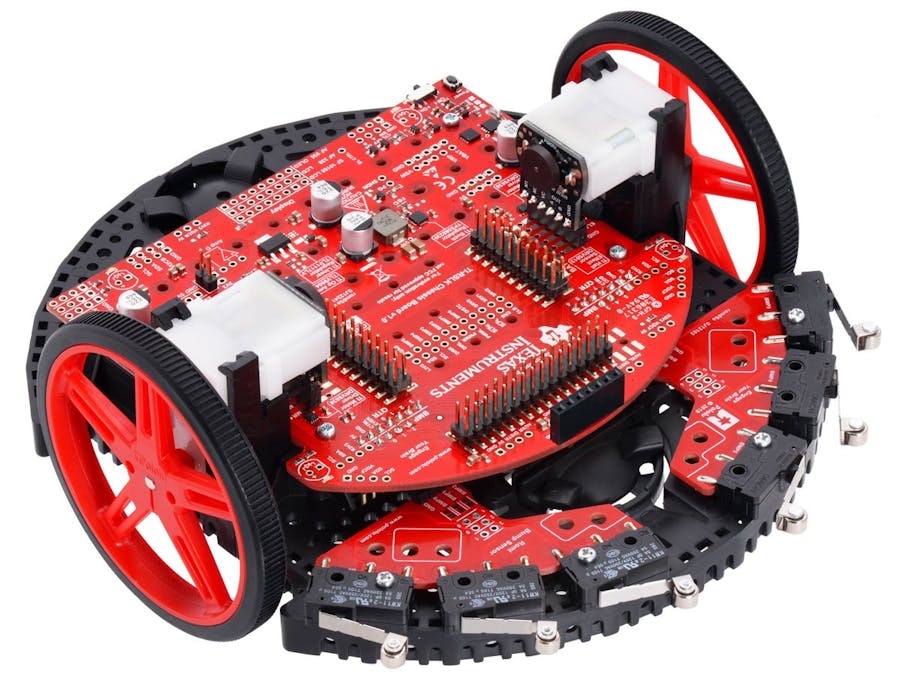

Texas Instruments TI Robotics System Learning Kit TI-RSLK

Texas Instruments MSP-EXP432P401R SimpleLink MSP432 LaunchPad

Texas Instruments CC3100BOOST SimpleLink CC3100 Wi-Fi BoosterPack

Analog joystick (Generic)

Button

MeArm

Software apps and online services

Texas Instruments Code Composer Studio

Story

This robot was created to be an extension project of a university level embedded processing course, and is not a tutorial on how to complete the entire project from scratch. Code for necessary functions of the robot are included, but the RTOS written from scratch is not provided per university policy.

Video Demo:

MeArm Controlled By MSP432 Controller Over Wi-Fi

1. Project Structure

Create a remote controlled robot that functions as movable and can control an extendable clamping arm. Use of the robot should include Wi-Fi via the CC3100 booster pack from Texas Instruments. Implement the PWM signals for the wheels and arm dependent on an analog joystick and buttons from the controller. Implement the preceded ideas into the RTOS created from scratch.

2. MeArm

The MeArm should be constructed and mounted onto the TI RSLK in any form that could be accessible to 4 excess GPIO pins. These 4 pins control the 4 servos for the arm: base, height, reach, and claw. The 5V source from the RSLK chassis is the supply for the MeArm. The PWM signals for the MeArm control one direction of movement at a time, which are controlled by 4 buttons and 1 joystick. The algorithm creates a delta from the joystick position, updates the duty cycle, and sends this value over Wi-Fi, where the client will then create the correct PWM to move the correct servo.

3. MSP432s/RSLK

The microcontrollers are fundamental building block for this project, and it is important to note their function. Each MSP432 will have a role, either host or client. This is indicated by the press of a button upon boot. The two devices will then acknowledge each other over Wi-Fi. From there, both will light blue, initialize their respective RTOS, then begin running. Each has only four threads, a more simple program. For the host, there is a create game thread, which initializes the entire sequence of events. Then, the joystick and button data is read in, with data manipulation applied. Next, there is a thread to transmit this data to the client. For the client, there is a join game thread, which waits for the host to create the game and acknowledge it. Then, the Wi-Fi package is received from the host. Finally, the client creates the correct PWM for the selected mode from the buttons. Both client and host have a dummy thread to avoid deadlock. It is important to note that the PWM signal is 20ms period. 10ms of this generated signal, the PWM generation thread is sleeping to allow the receive data thread to run. Wi-Fi mutexes are also implemented in order to avoid disruption in a transmission. The PWM also has a higher priority in the scheduler than the receive data, as we want the PWM to be as accurate as possible. Missing a packet is not a huge problem, since there are 2 active threads, there will be plenty of time to quickly adjust.

4. Future Work

The wheels for the TI RSLK currently do not have code for this project. In the future, a joystick to differential wheeled robot algorithm will be implemented in the same way the MeArm controls were. The wheel button will be pressed to indicate this mode, the joystick will be read in by the host, data manipulation will occur, then a packet will be sent over Wi-Fi, then the client will send the PWM signal needed for the wheels to move in a good direction.

Code

#include <G8RTOS.h>
#include <driverlib.h>
#include "BSP.h"
#include "i2c_driver.h"
#include "BoardSupportPackage\inc\Clock.h"


/* Client Threads */
extern void JoinGame();
extern void ReceiveDataFromHost();
extern void UpdatePWM();

/* Host Threads */
extern void CreateGame();
extern void SendDataToClient();
extern void ReadJoystickHost();

/* Shared Threads */
extern void IdleThread();

/* Helper Functions */
extern playerType GetPlayerRole();

/* Prevent Interruptions */
extern semaphore_t WifiMutex;

void main(void)
{
    /* Initialize The Board And Peripherals */
    /* Disable Watchdog */
    WDT_A_clearTimer();
    WDT_A_holdTimer();

    /* Initialize Clock And Timer */
    Clock_Init48MHz();

    /* Init i2c */
    initI2C();

    /* Initialize The RTOS And Semaphores */
    G8RTOS_Init();
    G8RTOS_InitSemaphore(&WifiMutex, 1);

    /* Decide Which User We Are */
    playerType role = GetPlayerRole();

    /* Connect The Users And Initialize WiFi Accordingly */
    initCC3100(role);

    /* Add Correct Starting Thread */
    if(role == Host){G8RTOS_AddThread(CreateGame, 1, "Create Game");}
    else if(role == Client){G8RTOS_AddThread(JoinGame, 1, "Join Game");}

    /* Launch The RTOS */
    G8RTOS_Launch();
    while(1);
}

#ifndef ROBOT_H_
#define ROBOT_H_

/*********************************************** Includes ********************************************************************/
#include <stdbool.h>
#include <stdint.h>
#include "G8RTOS_Lab5/G8RTOS.h"
#include "CC3100SupportPackage\cc3100_usage\cc3100_usage.h"
/*********************************************** Includes ********************************************************************/

/*********************************************** Externs ********************************************************************/
extern semaphore_t WifiMutex;
/*********************************************** Externs ********************************************************************/

/*********************************************** Global Defines ********************************************************************/
/* Used as status LEDs for Wi-Fi */
#define RED_LED_ON    P2->OUT  |= 1
#define RED_LED_OFF   P2->OUT  &= ~1
#define GREEN_LED_ON  P2->OUT  |= 2
#define GREEN_LED_OFF P2->OUT  &= ~2
#define BLUE_LED_ON   P2->OUT  |= 4
#define BLUE_LED_OFF  P2->OUT  &= ~4
#define ALL_LEDS_OFF  P2->OUT  &= ~7
#define ALL_LEDS_ON   P2->OUT  |= 7

typedef enum
{
    BASE = 0,
    UPDOWN = 1,
    FORWARDBACK = 2,
    CLAW = 3
}controlType;
/*********************************************** Global Defines ********************************************************************/

/*********************************************** Data Structures ********************************************************************/
#pragma pack ( push, 1)
/*
 * Struct to be sent from the client to the host
 */
typedef struct
{
    uint32_t IP_address;
    bool joined;
    bool acknowledge;
} DeviceInfo_t;

/*
 * Struct to be sent from the host to the client
 */
typedef struct
{
    uint8_t mode;
    uint16_t pulse;
} State_t;
#pragma pack ( pop )
/*********************************************** Data Structures ********************************************************************/


/*********************************************** Client Threads *********************************************************************/
/*
 * Thread for client to join game
 */
void JoinGame();

/*
 * Thread that receives game state packets from host
 */
void ReceiveDataFromHost();

/*
 * Updates the PWM pulses of all motors.
 */
void UpdatePWM();
/*********************************************** Client Threads *********************************************************************/


/*********************************************** Host Threads *********************************************************************/
/*
 * Thread for the host to create a game
 */
void CreateGame();

/*
 * Thread that sends game state to client
 */
void SendDataToClient();


/*
 * Thread to read host's joystick
 */
void ReadJoystickHost();

/*
 * APERIODIC
 * ISR For New Game Button
 * Should Just Set A Flag Saying A Touch Occurred
 */
//void ButtonTap4();
//void ButtonTap5();

/*********************************************** Host Threads *********************************************************************/


/*********************************************** Common Threads *********************************************************************/
/*
 * Idle thread
 */
void IdleThread();
/*********************************************** Common Threads *********************************************************************/


/*********************************************** Public Functions *********************************************************************/
/*
 * Returns either Host or Client depending on button press
 */
playerType GetPlayerRole();
/*********************************************** Public Functions *********************************************************************/

#endif /* ROBOT_H_ */

#include <G8RTOS.h>
#include <G8RTOS_Scheduler.h>

/* Struct For Host To Hold Game Data */
State_t data = {0, 200};

/* Struct For Client To Hold Its Personal Data */
DeviceInfo_t clientInfo = {0, false, false};

/* JoyStick Coordinates */
int16_t X, Y;
int16_t delta = 0;

/* Pulses */
uint16_t Base = 200;
uint16_t UpDown = 200;
uint16_t ForwardBack = 200;
uint16_t Claw = 200;

/* Mutexes For Both Host And Client To Update */
semaphore_t WifiMutex;

/*********************************************** Client Threads *********************************************************************/
/*
 * Thread for client to join game
 */
void JoinGame()
{
    /* Initialize Client */
    clientInfo.IP_address = getLocalIP();

    /* Send Player To The Host */
    _i32 returnVal = -1;
    while((returnVal == -1) || (clientInfo.acknowledge == false))
    {
        clientInfo.acknowledge = true;
        SendData((uint8_t *) &clientInfo, HOST_IP_ADDR, sizeof(clientInfo));
        clientInfo.acknowledge = false;
        returnVal = ReceiveData((uint8_t *) &clientInfo, sizeof(clientInfo));
    }

    /* Join Game */
    clientInfo.joined = true;
    SendData((uint8_t *)&clientInfo, HOST_IP_ADDR, sizeof(clientInfo));

    /* If Joined, Acknowledge Joined To Host And Show Connection With Blue LED */
    RED_LED_OFF;
    BLUE_LED_ON;

    /* PWM Pin 7.4 */
    P7->SEL0 &= ~BIT4;
    P7->SEL1 &= ~BIT4;
    P7->DIR  |=  BIT4;
    P7->OUT  &= ~BIT4;

    /* PWM Pin 7.5 */
    P7->SEL0 &= ~BIT5;
    P7->SEL1 &= ~BIT5;
    P7->DIR  |=  BIT5;
    P7->OUT  &= ~BIT5;

    /* PWM Pin 7.6 */
    P7->SEL0 &= ~BIT6;
    P7->SEL1 &= ~BIT6;
    P7->DIR  |=  BIT6;
    P7->OUT  &= ~BIT6;

    /* PWM Pin 7.7 */
    P7->SEL0 &= ~BIT7;
    P7->SEL1 &= ~BIT7;
    P7->DIR  |=  BIT7;
    P7->OUT  &= ~BIT7;

    /* Add Starting Threads */
    G8RTOS_AddThread(ReceiveDataFromHost, 4, "Receive Data");
    G8RTOS_AddThread(UpdatePWM, 3, "Receive Data");
    G8RTOS_AddThread(IdleThread, 255, "Idle");

    /* Kill Self */
    G8RTOS_KillSelf();
}

/*
 * Thread that receives game state packets from host
 */
void ReceiveDataFromHost()
{
    while(1)
    {
        data.pulse = 150;
        /* Receive Updated Mode And Pulse Number */
        _i32 returnVal = -1;
        while(returnVal == -1)
        {
            G8RTOS_WaitSemaphore(&WifiMutex);
            returnVal = ReceiveData((uint8_t *) &data, sizeof(data));
            G8RTOS_SignalSemaphore(&WifiMutex);
            sleep(2);
        }
        /* Save Packet */
        if(data.mode == BASE)
        {
            Base = data.pulse;
        }
        else if(data.mode == UPDOWN)
        {
            UpDown = data.pulse;
        }
        else if(data.mode == FORWARDBACK)
        {
            ForwardBack = data.pulse;
        }
        else if(data.mode == CLAW)
        {
            Claw = data.pulse;
        }
    }
}

/*
 * Updates the PWM pulses of all motors.
 */
void UpdatePWM()
{
    uint16_t iBase, iUpDown, iForwardBack, iClaw = 0;
    uint16_t jBase, jUpDown, jForwardBack, jClaw = 0;
    while(1)
    {
        G8RTOS_WaitSemaphore(&WifiMutex);
        if(data.mode == BASE)
        {
            P7->OUT  |= BIT4;
            jBase = Base;
            for(iBase = 0; iBase < 3400 + jBase; iBase++);
            P7->OUT  &= ~BIT4;
            G8RTOS_SignalSemaphore(&WifiMutex);
            sleep(10);
        }
        else if(data.mode == UPDOWN)
        {
            P7->OUT  |= BIT5;
            jUpDown = UpDown;
            for(iUpDown = 0; iUpDown < 3400 + jUpDown; iUpDown++);
            P7->OUT  &= ~BIT5;
            G8RTOS_SignalSemaphore(&WifiMutex);
            sleep(10);
        }
        else if(data.mode == FORWARDBACK)
        {
            P7->OUT  |= BIT6;
            jForwardBack = ForwardBack;
            for(iForwardBack = 0; iForwardBack < 3400 + jForwardBack; iForwardBack++);
            P7->OUT  &= ~BIT6;
            G8RTOS_SignalSemaphore(&WifiMutex);
            sleep(10);
        }
        else if(data.mode == CLAW)
        {
            P7->OUT  |= BIT7;
            jClaw = Claw;
            for(iClaw = 0; iClaw < 3400 + jClaw; iClaw++);
            P7->OUT  &= ~BIT7;
            G8RTOS_SignalSemaphore(&WifiMutex);
            sleep(10);
        }
    }
}
/*********************************************** Client Threads *********************************************************************/


/*********************************************** Host Threads *********************************************************************/
/*
 * Thread for the host to create a game.
 * Only Thread Created Before Launching OS
 */
void CreateGame()
{
    /* Wait For Client To Sent Specific Player Information */
    _i32 returnVal = -1;
    while((returnVal == -1) || (clientInfo.acknowledge == false))
    {
        returnVal = ReceiveData((uint8_t *)&clientInfo, sizeof(clientInfo));
    }

    /* Acknowledge That We Have Connected With Client */
    SendData((uint8_t *)&clientInfo, clientInfo.IP_address, sizeof(clientInfo));
    clientInfo.acknowledge = false;

    /* Wait For Client To Join */
    returnVal = -1;
    while((returnVal == -1) || (clientInfo.joined == false))
    {
        returnVal = ReceiveData((uint8_t *)&clientInfo, sizeof(clientInfo));
    }

    /* Blue LED Indicating Good Connection */
    RED_LED_OFF;
    BLUE_LED_ON;

    /* Initialize Buttons */
    P4->DIR &= ~BIT4;
    P4->REN |= BIT4;
    P4->OUT |= BIT4;

    P4->DIR &= ~BIT5;
    P4->REN |= BIT5;
    P4->OUT |= BIT5;

    P5->DIR &= ~BIT4;
    P5->REN |= BIT4;
    P5->OUT |= BIT4;

    P5->DIR &= ~BIT5;
    P5->REN |= BIT5;
    P5->OUT |= BIT5;

    /* Init joystick without interrupts */
    Joystick_Init_Without_Interrupt();

    /* Add Starting Threads */
    G8RTOS_AddThread(ReadJoystickHost, 5, "JoyStick");
    G8RTOS_AddThread(SendDataToClient, 5, "Send Data");
    G8RTOS_AddThread(IdleThread, 255, "Idle");

    /* Kill Self */
    G8RTOS_KillSelf();
}

/*
 * Thread that sends game state to client
 */
void SendDataToClient()
{
    while(1)
    {
        /* Fill And Send Packet For Client */
        SendData((uint8_t *)&data, clientInfo.IP_address, sizeof(data));

        /* Sleep For 25ms (Experimentally For Synchronization) */
        //sleep(5);
    }
}

/*
 * Thread to read host's joystick
 */
void ReadJoystickHost()
{
    uint16_t pos = 0;
    while(1)
    {
        /* Read Buttons */
        if(!(P4->IN & BIT4)){data.mode = CLAW;}
        if(!(P4->IN & BIT5)){data.mode = FORWARDBACK;}
        if(!(P5->IN & BIT4)){data.mode = BASE;}
        if(!(P5->IN & BIT5)){data.mode = UPDOWN;}

        /* Read Joystick Coordinates */
        GetJoystickCoordinates(&X, &Y);

        /* Update PWM */
        if(data.mode == BASE)
        {
            pos = Base;
            delta = X / 1000;
            if(((int16_t)pos >= (delta * -1)) && (((int16_t)pos + delta) <= 3400))
            {
                pos += delta;
                Base = pos;
            }
        }
        else if(data.mode == UPDOWN)
        {
            pos = UpDown;
            delta = Y / -1000;
            if(((int16_t)pos >= (delta * -1)) && (((int16_t)pos + delta) <= 3400))
            {
                pos += delta;
                UpDown = pos;
            }
        }
        else if(data.mode == FORWARDBACK)
        {
            pos = ForwardBack;
            delta = Y / -1000;
            if(((int16_t)pos >= (delta * -1)) && (((int16_t)pos + delta) <= 3400))
            {
                pos += delta;
                ForwardBack = pos;
            }
        }
        else if(data.mode == CLAW)
        {
            pos = Claw;
            delta = X / -1000;
            if(((int16_t)pos >= (delta * -1)) && (((int16_t)pos + delta) <= 3400))
            {
                pos += delta;
                Claw = pos;
            }
        }

        data.pulse = pos;
        sleep(2);
    }
}
/*********************************************** Host Threads *********************************************************************/


/*********************************************** Common Threads *********************************************************************/
/*
 * Idle thread
 */
void IdleThread()
{
    while(1);
}
/*********************************************** Common Threads *********************************************************************/

/*********************************************** Public Functions *********************************************************************/
/*
 * Returns either Host or Client depending on button press
 */
playerType GetPlayerRole()
{
    /* Initialize Top Button S1 P1.1 For Client */
    P1->DIR &= ~BIT1;
    P1->REN |= BIT1;
    P1->OUT |= BIT1;

    /* Initialize Bottom Button S2 P1.4 For Host */
    P1->DIR &= ~BIT4;
    P1->REN |= BIT4;
    P1->OUT |= BIT4;

    /* Initialize WiFi Connection LEDs For Both Roles */
    P2->SEL1 &= ~7;
    P2->SEL0 &= ~7;
    P2->DIR  |= 7;
    ALL_LEDS_OFF;
    RED_LED_ON;

    while(1)
    {
        if(!(P1->IN & BIT1)){return Client;}
        if(!(P1->IN & BIT4)){return Host;}
    }
}
/*********************************************** Public Functions *********************************************************************/

Texas Instruments RSLK / MeArm

Things used in this project

Hardware components

Software apps and online services

Story

Schematics

MG90S Servo Documentation

MSP432P401 Datasheet

MSP432P4xx Technical Reference Manual

CC3100 SimpleLink Wi-Fi Boosterpack Datasheet

CC3100 SimpleLink Wi-Fi Boosterpack User's Guide

Code

main.c

RTOS Threads Header

RTOS Threads Source

Credits

Justin Schubeck

Comments

Embed the widget on your own site

Texas Instruments RSLK / MeArm

Texas Instruments RSLK / MeArm

Things used in this project

Hardware components

Software apps and online services

Story

Schematics

MG90S Servo Documentation

MSP432P401 Datasheet

MSP432P4xx Technical Reference Manual

CC3100 SimpleLink Wi-Fi Boosterpack Datasheet

CC3100 SimpleLink Wi-Fi Boosterpack User's Guide

Code

main.c

RTOS Threads Header

RTOS Threads Source

Credits

Justin Schubeck

Comments

Related channels and tags
