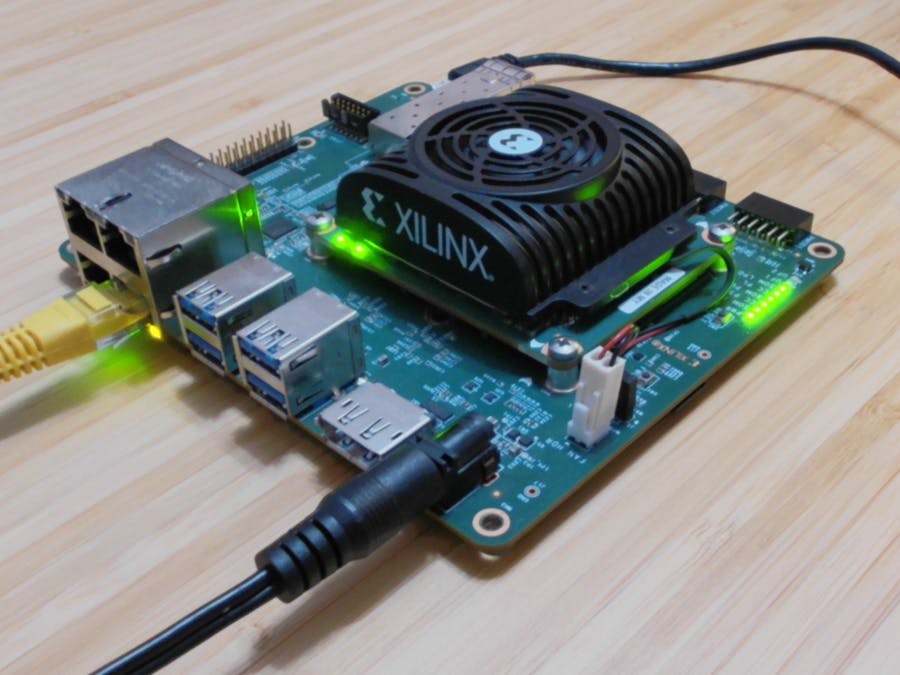

The KR260 is a powerful AMD development board boasting the K26 SOM (System on Module), designed for robotics and edge AI but also capable of many other uses.
This is the first of a series of two tutorials that will show you how to accelerate a software function in the PL (Programmable Logic) using the Vitis flow. In this tutorial, the hardware platform creation with Vivado 24.2 is described. The next one will cover the software and application creatin with Vitis 24.2
To start with this tutorial, your KR260 needs a bootable SD card that you can prepare following this. Here we will be using Vivado and Vitis 24.2 on Ubuntu 2024.4 LTS.
Start the hw project in VivadoIn the home folder I create folders as below for Vivado and Vitis work:
mkdir workspace
cd workspace
mkdir vivado
mkdir vitisNote: if you don't want to reproduce the project manually, you can use the Tcl script attached: kr260_pfm.tcl
Start Vivado and create a project in ~/workspace/vivado. I call it kr260_pfm
Select that it is an extensible Vitis platform:
Next, click on Boards and select the Kria KR260 Robotics Starter Kit
Click on Connections and select the SOM connectors as below
Click OK, Next and Finish. The project will appear.
Create and populate the block diagramOn Flow Navigator, click Create Block Design and leave the default name design_1
In the block diagram, add the PS by clicking on the '+' sign
Once added, click on Run Block Automation
Keep the Apply Board Preset box ticked and click OK
Now add a cloking wizard, also by clicking on the plus sign. Once on the block diagram double click on it to configure it. In the Output Clocks tab, create 3 clocks at 100, 200 and 400 MHz
At the bottom, change the reset polarity to Active Low and click OK
Now add a Processor System Reset block and rename it as proc_sys_reset_1
Copy paste it two times (CTRL-C + CTRL-V) to have three copies:
Make the following connections:
- MPSoC pl_resetn0 to Clock wizard resetn
- MPSoC pl_clk0 to Clock Wizard clk_in1
- Eack Clock wizard clk_out to each Processor rest slowest_sync_clk
Now connect:
- MPSoC pl_resetn0 to all ext_reset_in in the Processor reset blocks
- Clock wizard locked to all dcm_locked in the Processor reset blocks
Add an AXI interrupt controller and double click on it to configure it, Change the Interrupt Output Connection on the Basic tab to Single. Connect:
- The irq output to the MPSoC pl_ps_irq0 input
- The s_axi_aclk input to clk_out2 in Clock wizard
- The s_axi_aresetn input to the peripheral_aresetn from proc_sys_reset_2
Now add an AXI SmartConnect block and double click on it to configure. Change to 1 slave and 1 master port.
The AXI ports in the MPSoC need to be changed from the default, double click on the MPSoC block and go to the PS-PL Configuration tab. Unselect AXI HPM0 FPD and AXI HPM1 FPD and enable AXI HPM LPD:
For the remaining connections, click on Run Connection Automation
And for the clocks, select the clk_out2 source as below
At that point it should look like this
Click on Validate, you should have a Critical warning about the unconnected interrupt input, but that can be ignored
IN the Sources panel, right click on the block diagram (design_1) and select Create HDL Wrapper. Accept the default option and ignore the warning again.
Open the Platform Setup tab and select the Clock tab. Mark clk_out1 to clk_out3 as Enabled, change their IDs to 0, 1 and 2 and select clk_out2 as Default.
On the interrupt tab, enable the intr entry
On the AXI Port tab, enable from M01_AXI to M07_AXI
On the bottom of the tab, enable the M_AXI and S_AXI ports shown, change the MEmport type of the HPC to S_AXI_HP (as coherency is not used here) and type the SP Tag values as shown.
Now click on Generate Block Design in the Navigator panel
Select Global for the synthesis options and click Generate
Then click on Generate Bitstream
Bitstream generation should end without problems, click on Cancel (as no additional option there is needed)
Last step is to click on Export Platform in the Flow Navigator panel
I am exporting only hardware but you have the option of exporting for hardware emulation
Next, make sure you tick the Include Bitstream box, select Pre-Synthesis and click Next
Next you can include some informative details
Next I change the XSA file name to kr260_pfm and note the path where it will be generated
Last bit is to check the XSA has been created
That file will be the hardware base to create the rest of the application in Vitis
#*****************************************************************************************
