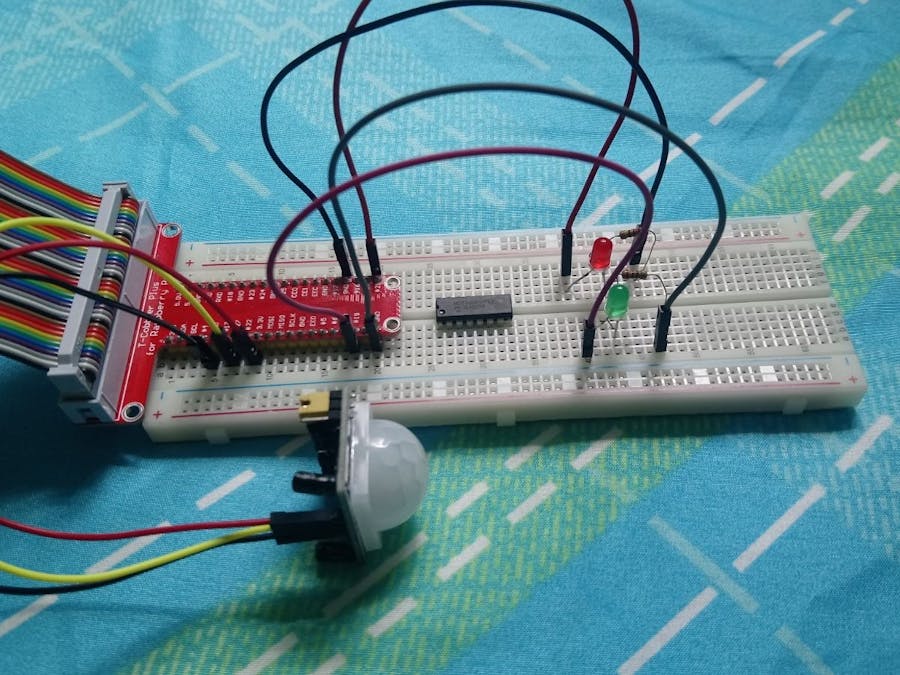

Office Security System

Our surveillance system aims to deliver security through real-time motion detection and smart notification through Twilio messaging.

IntermediateProtip5 hours2,291

Things used in this project

Hardware components

Raspberry Pi 3 Model B

Breadboard (generic)

Adafruit T-Cobbler Kit

Male/Male Jumper Wires

Male/Female Jumper Wires

Raspberry Pi Camera Module

Used to capture images.

Adafruit Standard LCD - 16x2 White on Blue

Used to display if the alarm is on or off.

LED (generic)

One LED will be used by the publisher to check for connection while the other will be used on the subscribers as an alarm indicator.

SparkFun Greed LED

Used by the publisher to check for connection.

PIR Motion Sensor (generic)

Used to detect motion.

Buzzer

Will be sounded once motion is detected.

Resistor 2.21k ohm

Used by the LEDs.

Software apps and online services

MySQL

Which is used as our database.

Amazon Web Services AWS RDS

Used to create an instance for MySQL

Microsoft Azure

Used to store our images captured by the camera.

Story

Project Overview

Our project is a security and IoT based system which uses motion sensing 'triggers' and MQTT technology for sending/receiving messages

We will be utilizing a motion sensor to sense movement and outputs catering to audio and visuals will be triggered once movements are detected. Phone alerts would also be triggered in the event. A pi-cam would also be used to capture images.

One raspberry pi will act as the sensor to capture image while the other raspberry pi will act as the actuator to send notifications and alert the office.
