Kaleb's Smart Room Controller

Overview

The purpose of this project is to increase automation within Blink (my cat)'s living environment.

• Turn on the air freshener and hue lights when the cat is detected entering her litter box
• Detect the temperature of the cat's room and light up LED's on the board accordingly. -flash hue lights when the temperature changes enough to change LED colors
• 3D model a button knob for the encoder using this link: https://www.sparkfun.com/products/15141 -click on the features tab in the link
• Full user input to adjust hue lights -Change brightness via potentiometer -Change active light via encoder -Turn on active light with a single click -Change active light color with a long press
• Keypad that takes in a passcode input -locks all user inputs when code is not entered -unlocks when correct passcode is entered -keypad can be re-locked via the '#' key
• Display lock/unlock status on OLED

The controller will have the ability to be manually controlled ontop of the automatic triggers.

Details

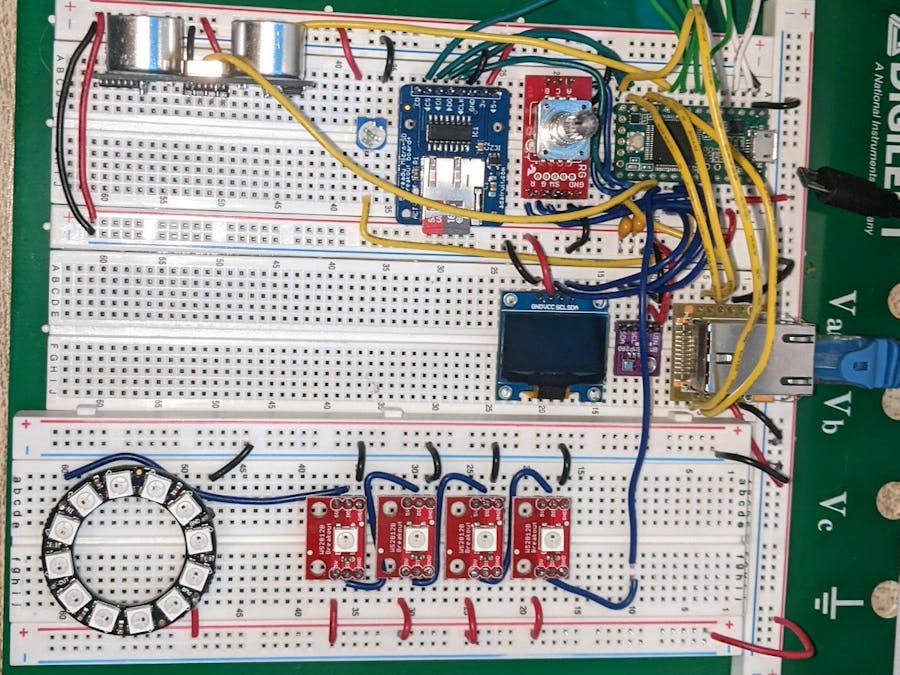

This project uses the following components:

• Phillips hue lights
• Breadboard
• Wires
• Teensy 3.2 microcontroller
• Ultrasonic Sensor (the 2x giant silver circles) | Sends signal, encounters obstacle, then comes back and calculates distance

Can look into more parts: https://www.elegoo.com/products/elegoo-37-in-1-sensor-kit?_pos=1&_sid=ba0552267&_ss=r

Summary

Automated hue lights, automated air-freshener through a Wemo outlet and fully adjustable hue lights through user input on the board.
