Published April 29, 2020

Wi-Fi Controlled LCD Screen Using ESP RainMaker

Build a Wi-Fi LCD screen and control it from a phone app.

BeginnerProtip2 hours1,186

Wi-Fi Controlled LCD Screen Using ESP RainMaker

Things used in this project

Hardware components

Espressif ESP32-WROVER-Kit

Software apps and online services

Espressif ESPRainMaker

Story

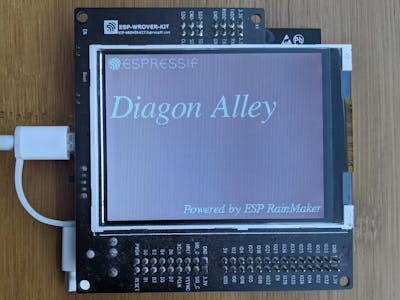

Wi-Fi controlled LCD screen using ESP RainMaker

This is a Wi-Fi controlled LCD screen. Put it up on your desk, door, shop, grocery aisles or conference rooms. Easy to change using an iOS/Android phone app.

Requirements

Hardware

ESP32-WROVER-KIT

Software

ESP RainMaker: Set up your development host as mentioned here: https://rainmaker.espressif.com/docs/get-started.html

Build and Flash

$ git clone https://github.com/kedars/rainmaker-lcd-screen
$ git clone https://github.com/kedars/rainmaker-lcd-screen

$ cd rainmaker-lcd-screen
$ cd rainmaker-lcd-screen

$ RAINMAKER_PATH=/path/to/where/esp-rainmaker/exists idf.py build flash monitor
$ RAINMAKER_PATH=/path/to/where/esp-rainmaker/exists idf.py build flash monitor

Using the screen

Enter the status you want to display by hitting the Edit button

Download the ESP RainMaker iOS/Android phone app
Boot up the ESP32-WROVER-KIT
Configure the ESP32-WROVER-KIT using the phone app

1 / 2

/* Callback to handle commands received from RainMaker */
static esp_err_t lcd_callback(const char *dev_name,
                              const char *name,
                              esp_rmaker_param_val_t val,
                              void *priv_data)
{
    if (strcmp(name, "string") == 0) {
        ESP_LOGI(TAG, "Received value = %s for %s - %s",
                val.val.s, dev_name, name);
        if (app_lcd_write(val.val.s) == ESP_OK) {
            esp_rmaker_update_param(dev_name, name, val);
        }
    }
    return ESP_OK;
}

Credits

Kedar Sovani

1 project • 1 follower

Application Frameworks at Espressif
