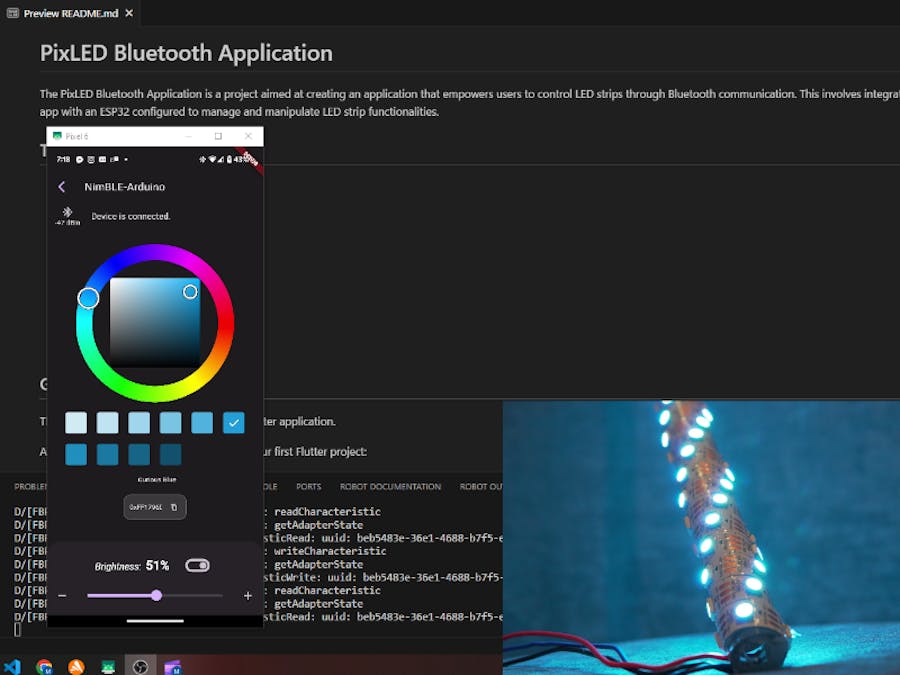

PixLED Bluetooth Application

/** PIXLED Bluetooth Demo
 *
 *  Demonstrates a custom bluetooth application with a WS2811 LED strip
 *
 *  Date : 2024-12-07
 *  Author: Marc-Antoine Doyon @madoyon
 *
 *  Based on the NimBLE_Server Demo written by H2zero
 *
*/

#include <NimBLEDevice.h>
#include <FastLED.h>

// Generated service and characteristic UUID
#define SERVICE_UUID        "4fafc201-1fb5-459e-8fcc-c5c9c331914b"
#define CHARACTERISTIC_UUID "beb5483e-36e1-4688-b7f5-ea07361b26a8"

// How many leds in your strip?
#define NUM_LEDS 100

// Data GPIO on the ESP32
#define DATA_PIN 2

static NimBLEServer* pServer;
uint8_t dataToSend[6] = {0, 213,0,49,127,1};
uint8_t* dataReceived;

enum {
    ISINITIALIZED,
    COLOR_HEX_FF0000,
    COLOR_HEX_00FF00,
    COLOR_HEX_0000FF,
    BRIGHTNESS,
    STATE
};

// Defaults values
uint8_t brightness = 127; // 50% brightness
uint8_t colorHex[3] = {213,0,49}; //Red ish default color
uint8_t isInitialized = 0;
uint8_t state = 0;

// Define the array of leds
CRGB leds[NUM_LEDS];

/**  None of these are required as they will be handled by the library with defaults. **
 **                       Remove as you see fit for your needs                        */
class ServerCallbacks: public NimBLEServerCallbacks {
    void onConnect(NimBLEServer* pServer) {
        Serial.println("Client connected");
        Serial.println("Multi-connect support: start advertising");
        NimBLEDevice::startAdvertising();
    };
    /** Alternative onConnect() method to extract details of the connection.
     *  See: src/ble_gap.h for the details of the ble_gap_conn_desc struct.
     */
    void onConnect(NimBLEServer* pServer, ble_gap_conn_desc* desc) {
        Serial.print("Client address: ");
        Serial.println(NimBLEAddress(desc->peer_ota_addr).toString().c_str());
        /** We can use the connection handle here to ask for different connection parameters.
         *  Args: connection handle, min connection interval, max connection interval
         *  latency, supervision timeout.
         *  Units; Min/Max Intervals: 1.25 millisecond increments.
         *  Latency: number of intervals allowed to skip.
         *  Timeout: 10 millisecond increments, try for 5x interval time for best results.
         */
        pServer->updateConnParams(desc->conn_handle, 24, 48, 0, 60);
    };
    void onDisconnect(NimBLEServer* pServer) {
        Serial.println("Client disconnected - start advertising");
        NimBLEDevice::startAdvertising();
        dataToSend[ISINITIALIZED] = 0;
        // pBeefCharacteristic->setValue(dataToSend);
    };
    void onMTUChange(uint16_t MTU, ble_gap_conn_desc* desc) {
        Serial.printf("MTU updated: %u for connection ID: %u\n", MTU, desc->conn_handle);
    };

/********************* Security handled here **********************
****** Note: these are the same return values as defaults ********/
    uint32_t onPassKeyRequest(){
        Serial.println("Server Passkey Request");
        /** This should return a random 6 digit number for security
         *  or make your own static passkey as done here.
         */
        return 123456;
    };

    bool onConfirmPIN(uint32_t pass_key){
        Serial.print("The passkey YES/NO number: ");Serial.println(pass_key);
        /** Return false if passkeys don't match. */
        return true;
    };

    void onAuthenticationComplete(ble_gap_conn_desc* desc){
        /** Check that encryption was successful, if not we disconnect the client */
        if(!desc->sec_state.encrypted) {
            NimBLEDevice::getServer()->disconnect(desc->conn_handle);
            Serial.println("Encrypt connection failed - disconnecting client");
            return;
        }
        Serial.println("Starting BLE work!");
    };
};

/** Handler class for characteristic actions */
class CharacteristicCallbacks: public NimBLECharacteristicCallbacks {
    void onRead(NimBLECharacteristic* pCharacteristic){
        Serial.print(pCharacteristic->getUUID().toString().c_str());
        Serial.print(": onRead(), value: ");

        std::string value = pCharacteristic->getValue();
        uint8_t intValue = 0;
        Serial.println(value.c_str());
    };

    void onWrite(NimBLECharacteristic* pCharacteristic) {
        Serial.print(pCharacteristic->getUUID().toString().c_str());
        Serial.print(": onWrite(), value: ");

        std::string value = pCharacteristic->getValue();
        uint8_t intValue = 0;
        Serial.println(value.c_str());

        for(uint8_t i = 0; i < value.length(); i++)
        {
            intValue = static_cast<uint8_t>(value[i]);
            Serial.println(intValue);
        }

        // Extract the data from the bluetooth values
        brightness = value[BRIGHTNESS];
        state = value[STATE];
        colorHex[0] = value[COLOR_HEX_FF0000];
        colorHex[1] = value[COLOR_HEX_00FF00];
        colorHex[2] = value[COLOR_HEX_0000FF];
        isInitialized = value[ISINITIALIZED];
    };
    /** Called before notification or indication is sent,
     *  the value can be changed here before sending if desired.
     */
    void onNotify(NimBLECharacteristic* pCharacteristic) {
        Serial.println("Sending notification to clients");
    };


    /** The status returned in status is defined in NimBLECharacteristic.h.
     *  The value returned in code is the NimBLE host return code.
     */
    void onStatus(NimBLECharacteristic* pCharacteristic, Status status, int code) {
        String str = ("Notification/Indication status code: ");
        str += status;
        str += ", return code: ";
        str += code;
        str += ", ";
        str += NimBLEUtils::returnCodeToString(code);
        Serial.println(str);
    };

    void onSubscribe(NimBLECharacteristic* pCharacteristic, ble_gap_conn_desc* desc, uint16_t subValue) {
        String str = "Client ID: ";
        str += desc->conn_handle;
        str += " Address: ";
        str += std::string(NimBLEAddress(desc->peer_ota_addr)).c_str();
        if(subValue == 0) {
            str += " Unsubscribed to ";
        }else if(subValue == 1) {
            str += " Subscribed to notfications for ";
        } else if(subValue == 2) {
            str += " Subscribed to indications for ";
        } else if(subValue == 3) {
            str += " Subscribed to notifications and indications for ";
        }
        str += std::string(pCharacteristic->getUUID()).c_str();

        Serial.println(str);
    };
};

/** Handler class for descriptor actions */
class DescriptorCallbacks : public NimBLEDescriptorCallbacks {
    void onWrite(NimBLEDescriptor* pDescriptor) {
        std::string dscVal = pDescriptor->getValue();
        Serial.print("Descriptor witten value:");
        Serial.println(dscVal.c_str());
        Serial.println(dscVal[0]);
    };

    void onRead(NimBLEDescriptor* pDescriptor) {
        Serial.print(pDescriptor->getUUID().toString().c_str());
        Serial.print(pDescriptor->getUUID().toString()[0]);
        Serial.println(" Descriptor read");
    };
};


/** Define callback instances globally to use for multiple Charateristics \ Descriptors */
static DescriptorCallbacks dscCallbacks;
static CharacteristicCallbacks chrCallbacks;

//Synchronisation variables
unsigned long previousLEDTask = 0;
unsigned long previousBluetoothTask = 0;

void taskLED();
void taskBluetooth();

void setup() {
    Serial.begin(9600);
    Serial.println("Starting NimBLE Server");

    /** sets device name */
    NimBLEDevice::init("NimBLE-Arduino");

    /** Optional: set the transmit power, default is 3db */
#ifdef ESP_PLATFORM
    NimBLEDevice::setPower(ESP_PWR_LVL_P9); /** +9db */
#else
    NimBLEDevice::setPower(9); /** +9db */
#endif

    /** Set the IO capabilities of the device, each option will trigger a different pairing method.
     *  BLE_HS_IO_DISPLAY_ONLY    - Passkey pairing
     *  BLE_HS_IO_DISPLAY_YESNO   - Numeric comparison pairing
     *  BLE_HS_IO_NO_INPUT_OUTPUT - DEFAULT setting - just works pairing
     */
    //NimBLEDevice::setSecurityIOCap(BLE_HS_IO_DISPLAY_ONLY); // use passkey
    //NimBLEDevice::setSecurityIOCap(BLE_HS_IO_DISPLAY_YESNO); //use numeric comparison

    /** 2 different ways to set security - both calls achieve the same result.
     *  no bonding, no man in the middle protection, secure connections.
     *
     *  These are the default values, only shown here for demonstration.
     */
    //NimBLEDevice::setSecurityAuth(false, false, true);
    NimBLEDevice::setSecurityAuth(/*BLE_SM_PAIR_AUTHREQ_BOND | BLE_SM_PAIR_AUTHREQ_MITM |*/ BLE_SM_PAIR_AUTHREQ_SC);

    pServer = NimBLEDevice::createServer();
    pServer->setCallbacks(new ServerCallbacks());

    NimBLEService* pDeadService = pServer->createService(SERVICE_UUID);
    NimBLECharacteristic* pBeefCharacteristic = pDeadService->createCharacteristic(
                                               CHARACTERISTIC_UUID,
                                               NIMBLE_PROPERTY::READ |
                                               NIMBLE_PROPERTY::WRITE |
                                               NIMBLE_PROPERTY::NOTIFY |
                                               NIMBLE_PROPERTY::INDICATE
                               /** Require a secure connection for read and write access */
                                              //  NIMBLE_PROPERTY::READ_ENC |  // only allow reading if paired / encrypted
                                              //  NIMBLE_PROPERTY::WRITE_ENC   // only allow writing if paired / encrypted
                                              );

    pBeefCharacteristic->setValue(dataToSend);
    pBeefCharacteristic->setCallbacks(&chrCallbacks);

    /** Start the services when finished creating all Characteristics and Descriptors */
    pDeadService->start();

    NimBLEAdvertising* pAdvertising = NimBLEDevice::getAdvertising();
    /** Add the services to the advertisment data **/
    pAdvertising->addServiceUUID(pDeadService->getUUID());
    /** If your device is battery powered you may consider setting scan response
     *  to false as it will extend battery life at the expense of less data sent.
     */
    pAdvertising->setScanResponse(true);
    pAdvertising->start();

    Serial.println("Advertising Started");

     // Uncomment/edit one of the following lines for your leds arrangement.
    // ## Clockless types ##
    // FastLED.addLeds<NEOPIXEL, DATA_PIN>(leds, NUM_LEDS);  // GRB ordering is assumed
    // FastLED.addLeds<SM16703, DATA_PIN, RGB>(leds, NUM_LEDS);
    // FastLED.addLeds<TM1829, DATA_PIN, RGB>(leds, NUM_LEDS);
    // FastLED.addLeds<TM1812, DATA_PIN, RGB>(leds, NUM_LEDS);
    // FastLED.addLeds<TM1809, DATA_PIN, RGB>(leds, NUM_LEDS);
    // FastLED.addLeds<TM1804, DATA_PIN, RGB>(leds, NUM_LEDS);
    // FastLED.addLeds<TM1803, DATA_PIN, RGB>(leds, NUM_LEDS);
    // FastLED.addLeds<UCS1903, DATA_PIN, RGB>(leds, NUM_LEDS);
    // FastLED.addLeds<UCS1903B, DATA_PIN, RGB>(leds, NUM_LEDS);
    // FastLED.addLeds<UCS1904, DATA_PIN, RGB>(leds, NUM_LEDS);
    // FastLED.addLeds<UCS2903, DATA_PIN, RGB>(leds, NUM_LEDS);
    // FastLED.addLeds<WS2812, DATA_PIN, RGB>(leds, NUM_LEDS);  // GRB ordering is typical
    // FastLED.addLeds<WS2852, DATA_PIN, RGB>(leds, NUM_LEDS);  // GRB ordering is typical
    // FastLED.addLeds<WS2812B, DATA_PIN, RGB>(leds, NUM_LEDS);  // GRB ordering is typical
    // FastLED.addLeds<GS1903, DATA_PIN, RGB>(leds, NUM_LEDS);
    // FastLED.addLeds<SK6812, DATA_PIN, RGB>(leds, NUM_LEDS);  // GRB ordering is typical
    // FastLED.addLeds<SK6822, DATA_PIN, RGB>(leds, NUM_LEDS);
    // FastLED.addLeds<APA106, DATA_PIN, RGB>(leds, NUM_LEDS);
    // FastLED.addLeds<PL9823, DATA_PIN, RGB>(leds, NUM_LEDS);
    // FastLED.addLeds<SK6822, DATA_PIN, RGB>(leds, NUM_LEDS);
    FastLED.addLeds<WS2811, DATA_PIN, GRB>(leds, NUM_LEDS);
    // FastLED.addLeds<WS2813, DATA_PIN, RGB>(leds, NUM_LEDS);
    // FastLED.addLeds<APA104, DATA_PIN, RGB>(leds, NUM_LEDS);
    // FastLED.addLeds<WS2811_400, DATA_PIN, RGB>(leds, NUM_LEDS);
    // FastLED.addLeds<GE8822, DATA_PIN, RGB>(leds, NUM_LEDS);
    // FastLED.addLeds<GW6205, DATA_PIN, RGB>(leds, NUM_LEDS);
    // FastLED.addLeds<GW6205_400, DATA_PIN, RGB>(leds, NUM_LEDS);
    // FastLED.addLeds<LPD1886, DATA_PIN, RGB>(leds, NUM_LEDS);
    // FastLED.addLeds<LPD1886_8BIT, DATA_PIN, RGB>(leds, NUM_LEDS);
    // ## Clocked (SPI) types ##
    // FastLED.addLeds<LPD6803, DATA_PIN, CLOCK_PIN, RGB>(leds, NUM_LEDS);  // GRB ordering is typical
    // FastLED.addLeds<LPD8806, DATA_PIN, CLOCK_PIN, RGB>(leds, NUM_LEDS);  // GRB ordering is typical
    // FastLED.addLeds<WS2801, DATA_PIN, CLOCK_PIN, RGB>(leds, NUM_LEDS);
    // FastLED.addLeds<WS2803, DATA_PIN, CLOCK_PIN, RGB>(leds, NUM_LEDS);
    // FastLED.addLeds<SM16716, DATA_PIN, CLOCK_PIN, RGB>(leds, NUM_LEDS);
    // FastLED.addLeds<P9813, DATA_PIN, CLOCK_PIN, RGB>(leds, NUM_LEDS);  // BGR ordering is typical
    // FastLED.addLeds<DOTSTAR, DATA_PIN, CLOCK_PIN, RGB>(leds, NUM_LEDS);  // BGR ordering is typical
    // FastLED.addLeds<APA102, DATA_PIN, CLOCK_PIN, RGB>(leds, NUM_LEDS);  // BGR ordering is typical
    // FastLED.addLeds<SK9822, DATA_PIN, CLOCK_PIN, RGB>(leds, NUM_LEDS);  // BGR ordering is typical
}


void loop() {
    /** Do your thing here, this just spams notifications to all connected clients */
    if(millis() - previousBluetoothTask >= 1000)
    {
        taskBluetooth();
        previousBluetoothTask = millis();
    }

    if(millis() - previousLEDTask >= 100)
    {
        taskLED();
        previousLEDTask = millis();
    }
}

void taskBluetooth()
{
    if(pServer->getConnectedCount()) {
        NimBLEService* pSvc = pServer->getServiceByUUID(SERVICE_UUID);
        if(pSvc) {
            NimBLECharacteristic* pChr = pSvc->getCharacteristic(CHARACTERISTIC_UUID);
            if(pChr) {
                pChr->notify(true);

                // Prepare the initialization values if the connection is lost with the device
                if(dataToSend[ISINITIALIZED] == 0) {
                    dataToSend[BRIGHTNESS] = brightness;
                    dataToSend[COLOR_HEX_0000FF] = colorHex[2];
                    dataToSend[COLOR_HEX_00FF00] = colorHex[1];
                    dataToSend[COLOR_HEX_FF0000] = colorHex[0];
                    dataToSend[STATE] = state;
                    pChr->setValue(dataToSend);
                }
            }
        }
    }
}

void taskLED()
{
    // Update brightness
    FastLED.setBrightness(brightness);

    // Update color
    CRGB color = CRGB(colorHex[0], colorHex[1], colorHex[2]);

    // Update the state
    if(state == 0) color = CRGB::Black;

    // Set the color to the all LEDs
    fill_solid(leds, NUM_LEDS, color);

    FastLED.show();
}
