Modern agriculture is heading towards automation nowadays. In this project, we will make an Agri monitoring and irrigation system.

BeginnerProtip210

Agri Irrigation System using Magicbit-(ESP-32)

Things used in this project

Hardware components

magicbit

SparkFun Soil Moisture Sensor (with Screw Terminals)

Story

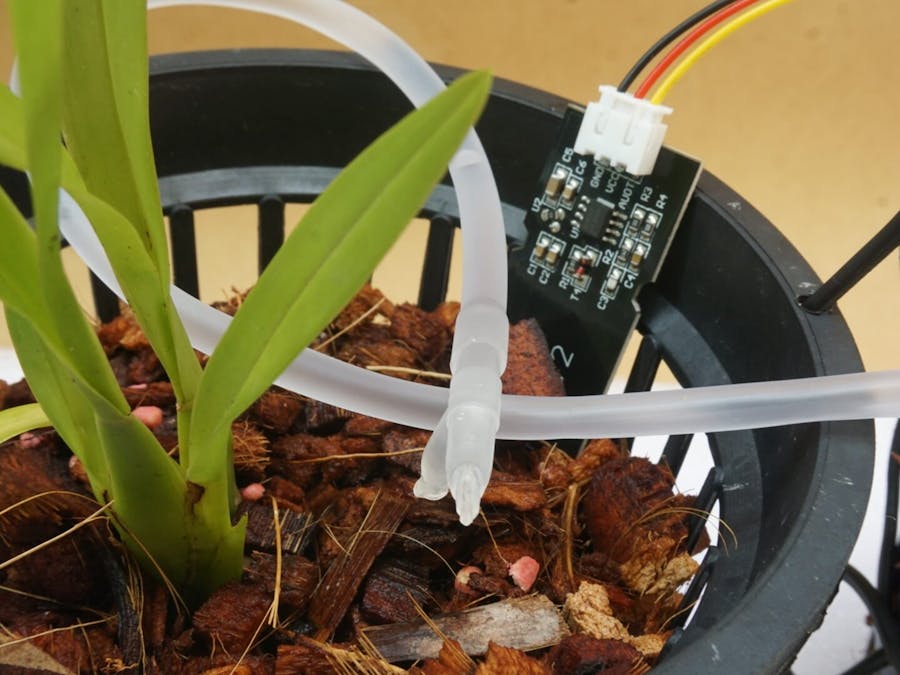

Modern agriculture is heading towards automation nowadays. In this project, we will make an Agri monitoring and irrigation system. We will use sensors to keep track of the moisture content in the soil. With this moisture data, we will try to operate a pump that will control water flow to plants. This will make sure that plants are getting the correct moisture levels that they need.

Instructions

make the setup using water pumps and tubes according to your plants. (You can use many plants as you want but you will have to use a powerful water pump and bigger tubing.

Copy the following code to Arduino IDE
Find the soil moisture range that your plants want. Here we have used the 40 – 70 range.
Edit the code according to your soil moisture range.

Upload the code.

Agri Irrigation System code

// Agri Irrigation System
// Magicbit


#include <ESP32Servo.h>

int SENSOR = 32;
int output_value ;
int upper_val = 70;
int lower_val = 40;

int M1A = 16; //motor drive input pins
int M1B = 17;

void setup() {
  pinMode(M1A, OUTPUT); //configure as inputs
  pinMode(M1B, OUTPUT);
  pinMode(32,INPUT);
}

void loop() {
    output_value= analogRead(SENSOR);
    output_value = map(output_value,550,0,0,100);
    if (lower_val>output_value && upper_val>output_value)
    analogWrite(M1A, 255);//pwm signal
    analogWrite(M1B, 0);
}
