mohammadsohail0008
Published © GPL3+

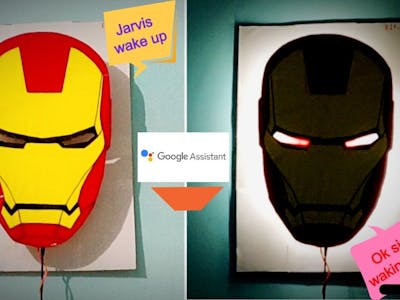

Jarvis via Google Assistant

Controlling Jarvis by Google Assistant

AdvancedFull instructions provided938
Jarvis via Google Assistant

Things used in this project

Hardware components

NodeMCU ESP8266 Breakout Board
NodeMCU ESP8266 Breakout Board
×1
Relay Module (Generic)
×1
5 mm LED: Red
5 mm LED: Red
×2
LED Strip, 1 m
LED Strip, 1 m
×1
Jumper wires (generic)
Jumper wires (generic)
×1

Software apps and online services

Arduino IDE
Arduino IDE
Maker service
IFTTT Maker service
Adafruit.io

Hand tools and fabrication machines

CardBoard
Hot glue gun (generic)
Hot glue gun (generic)
Tape, Clear
Tape, Clear

Story

Read more

Schematics

Circuit Diagram

Code

Code

Arduino
 // https://www.youtube.com/channel/UCaXI2PcsTlH5g0et67kdD6g  //
// Jaarvis via Google Assistant //
// By MOHD SOHAIL //


#include <ESP8266WiFi.h>
#include "Adafruit_MQTT.h"
#include "Adafruit_MQTT_Client.h"

#define ironman     D5

#define WLAN_SSID       "honor 9"             // Your SSID
#define WLAN_PASS       "87654321"        // Your password

/************************* Adafruit.io Setup *********************************/

#define AIO_SERVER      "io.adafruit.com"
#define AIO_SERVERPORT  1883                   // use 8883 for SSL
#define AIO_USERNAME    "your username"            // Replace it with your username
#define AIO_KEY         "your private key"   // Replace with your Project Auth Key

/************ Global State (you don't need to change this!) ******************/

// Create an ESP8266 WiFiClient class to connect to the MQTT server.
WiFiClient client;
// or... use WiFiFlientSecure for SSL
//WiFiClientSecure client;

// Setup the MQTT client class by passing in the WiFi client and MQTT server and login details.
Adafruit_MQTT_Client mqtt(&client, AIO_SERVER, AIO_SERVERPORT, AIO_USERNAME, AIO_KEY);

/****************************** Feeds ***************************************/


// Setup a feed called 'onoff' for subscribing to changes.
Adafruit_MQTT_Subscribe Light1 = Adafruit_MQTT_Subscribe(&mqtt, AIO_USERNAME"/feeds/ironman");

void MQTT_connect();

void setup() {
  Serial.begin(115200);

  pinMode(ironman, OUTPUT);

  // Connect to WiFi access point.
  Serial.println(); Serial.println();
  Serial.print("Connecting to ");
  Serial.println(WLAN_SSID);

  WiFi.begin(WLAN_SSID, WLAN_PASS);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println();

  Serial.println("WiFi connected");
  Serial.println("IP address: ");
  Serial.println(WiFi.localIP());


  // Setup MQTT subscription for onoff feed.
  mqtt.subscribe(&Light1);
}

void loop() {

  MQTT_connect();


  Adafruit_MQTT_Subscribe *subscription;
  while ((subscription = mqtt.readSubscription(20000))) {
    if (subscription == &Light1) {
      Serial.print(F("Got: "));
      Serial.println((char *)Light1.lastread);
      int Light1_State = atoi((char *)Light1.lastread);
      digitalWrite(ironman, Light1_State);
      }
      }
    }


void MQTT_connect() {
  int8_t ret;

  // Stop if already connected.
  if (mqtt.connected()) {
    return;
  }

  Serial.print("Connecting to MQTT... ");

  uint8_t retries = 3;

  while ((ret = mqtt.connect()) != 0) { // connect will return 0 for connected
    Serial.println(mqtt.connectErrorString(ret));
    Serial.println("Retrying MQTT connection in 5 seconds...");
    mqtt.disconnect();
    delay(5000);  // wait 5 seconds
    retries--;
    if (retries == 0) {
      // basically die and wait for WDT to reset me
      while (1);
    }
  }
  Serial.println("MQTT Connected!");

}
