Smart Garage Door Control

Garage doors are very heavy and our smart system enables user to control the door via mobile phone app, saving energy and time.

AdvancedShowcase (no instructions)2 days927

Things used in this project

Hardware components

Relay (generic)

Texas Instruments MSP-EXP430G2 MSP430 LaunchPad

HC-05 Bluetooth Module

General Purpose Transistor NPN

Software apps and online services

MIT App Inventor 2

Hand tools and fabrication machines

Laser cutter (generic)

Story

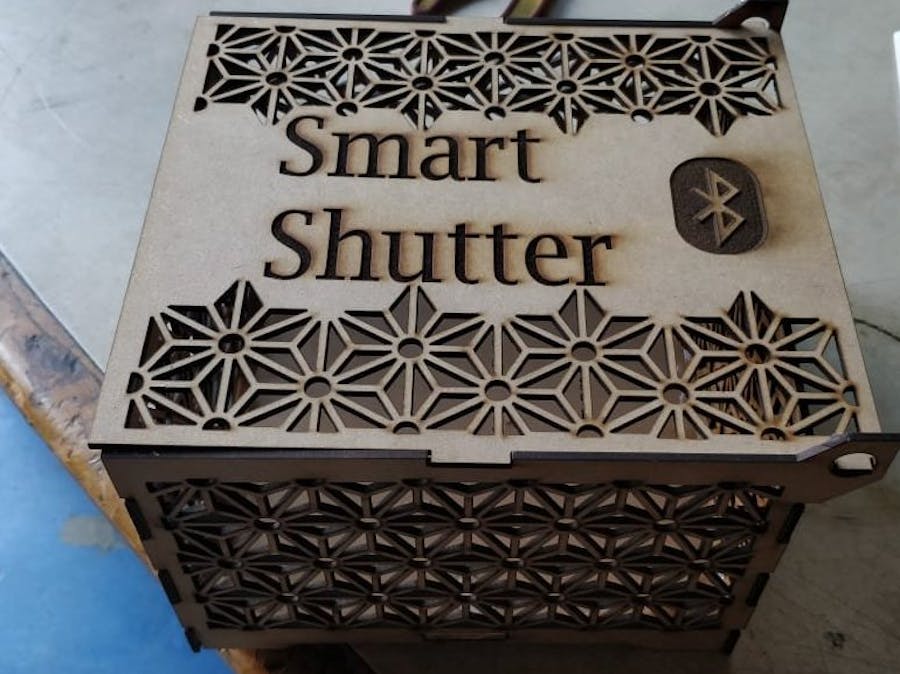

Every day we used to see our mechanical garage people struggling so much to open the garage door which has a motor and control of the motor is through the switch. They wanted only authentic users to open and close the garage door and this has motivated us to design a smart phone controlled garage door control system.

Live demonstration of the project using MSP430G2553 LaunchPad.

Code for Motor Control via bluetooth

unsigned char temp;
int up=6;
int down=7;
int n=20000; // time of 20 sec for shutter up and down
void setup() {
  // put your setup code here, to run once:
Serial.begin(9600);
pinMode(up,OUTPUT);
pinMode(down,OUTPUT);
digitalWrite(up,LOW);
digitalWrite(down,LOW);
}

void loop() {
  // put your main code here, to run repeatedly:

   while(!Serial.available());
   if(Serial.available()>0)
   {
    temp=Serial.read();
    if(temp=='A')
    {
      digitalWrite(up,HIGH);
      delay(n);
      digitalWrite(up,LOW);
    }
    if(temp=='B')
    {
      digitalWrite(down,HIGH);
      delay(n);
      digitalWrite(down,LOW);
    }
   }
}
