WiCardKit AVR HV Programmer and USBtoSerial (PIC18F4550)

The high voltage (parallel) programming method has been used for the WiCardKit Programmer which is the highest layer of access to the microcontroller memories and programming. This method can unlock the AVR/PIC chips which can’t be programmed by regular programmers while the chips work well.

The other feature is the “reset” pin in some the microcontrollers can be accessible as an IO with high voltage programming.

High voltage means a voltage a bit more than the typical voltage of the microcontroller which is 12V for the AVR microcontrollers and 13V for the PIC microcontrollers.

This voltage can only be applied on the “reset” pin under the specific condition.

The WiCardKit 1.0 contains tools for the programmable based circuit designs, such as the circuit with microcontrollers or arduino and etc.

In the current revision, in addition to the AVR parallel programmer, there is a USBtoSerial interface which lets the user to upload the programs on espressif modules.

The following AVR microcontrollers can be programmed with the high voltage method with WiCardKit 1.0:

ATtiny13A

ATmega48P

ATmega48V

ATmega8

ATmega8A

ATmega8L

ATmega88P

ATmega88V

ATmega16A

ATmega168P

ATmega168PV

ATmega32A

ATmega328P

The Hardware Project Link (Binary): Binary File and PCB plan of WiCardKit 1 programmer board

The Hardware Project Link (Source): Source code, Schematics and PCB plans of WiCardKit 1 programmer board

The Software Download Link: WiCardKit 1 Software (programmer UI)

The Software Project Source Code: Visual Basic Source Code of WiCardKit 1, programmer

WiCardKit Programmer Manual

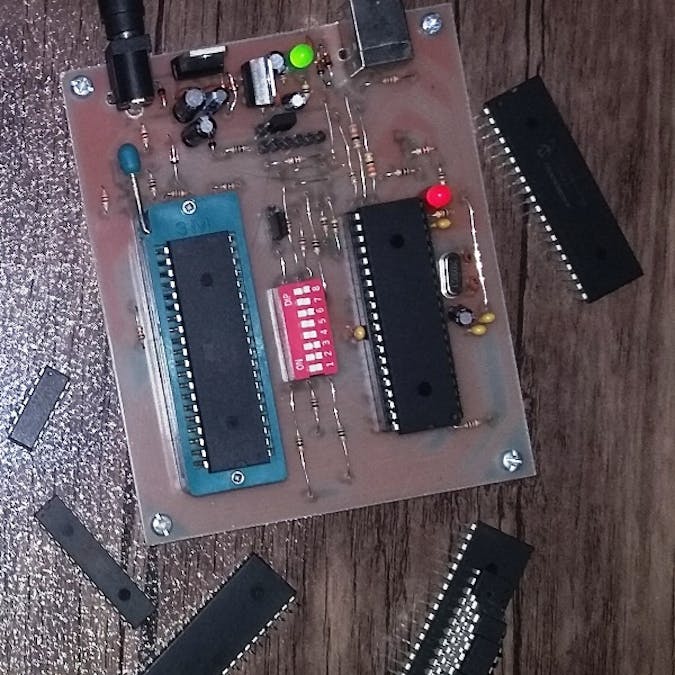

This board has a ZIF socket which an AVR Dip microcontroller can simply be placed on it. Also has a 6pin header for the PIC microcontrollers ICSP and UART Rx-Tx.

Con1 is for the USB B cable and Con2 is for the 5mm 12-15V power source jack.

• Always first plug the power jack, then the USB cable.
• Always first unplug the USB cable, then the power jack.
• The voltage under 12V of the power source, may cause error in programming.

To programming the microcontrollers, always place a jumper on pin 1 (square) and pin 2 of the H1 pin header.

The H2 pins:

• PIC microcontrollers reset (square pin)
• 5V or 3.3V power (selectable by H3)
• Ground
• UART RxD – PIC microcontrollers PGD
• UART TxD – PIC microcontrollers PGC
• PIC microcontrollers PGM

H3 is the ICSP voltage selector. Jumper on pin 1 (square) and pin 2 is 3.3V and on pin 2 and 3 is 5V.

• H3 can supply the circuit separate-ly
• More than 100mA current drain from 5V is not allowed.
• More than 700mA current drain from 3.3V (or 90mA in case of not using an external power source) is not allowed.

Dip Switch Configuration

Setting the dip switches correctly is the most important. To avoid hurting the programmer or the microcontroller, configure the switches carefully.

The Dip switch has 8 separate 0/1 switches which must be set before placing the microcontroller on the ZIF socket.

• First turn off all of the switches

The configuration will be shown in the manual picture of the WiCardKit Software which is the same as the following modes:

• ATtiny13A microcontrollers:

All off, only switch number 2 on

• ATmega8P-ATmega48V-ATmega8-ATmega8A-ATmega8L-ATmega88P-ATmega88V- ATmega168P-ATmega168PV-ATmega328P microcontrollers:

All off, only 2, 4, 6 on

• ATmega16A-ATmega32A:

All off, only 1, 4, 5, 7 on

PIC18F4550 Programming

This microcontroller can be programmed by MPLAB IDE or PICKit2 and the PICKit2 programmer.

The configuration bytes value:

CONFIG1L(300000) = 0x20

CONFIG1H(300001) = 0x0E

CONFIG2L(300002) = 0x39

CONFIG2H(300003) = 0x1E

CONFIG3L(300004) = —-

CONFIG3H(300005) = 0x01

CONFIG4L(300006) = 0x81

CONFIG4H(300007) = —-

CONFIG5L(300008) = 0x0F

CONFIG5H(300009) = 0xC0

CONFIG6L(30000A) = 0x0F

CONFIG6H(30000B) = 0xE0

CONFIG7L(30000C) = 0x0F

CONFIG7H(30000D) = 0x40

WiCardKit Programmer’s Driver Installation

In the “WiCard Kit 1.0 WinDriver” folder there is a driver installation file. After plugging the USB cable of the WiCardKit board, install the driver.

• Also you can install the driver manually from “Driver” folder and device manager
• After the driver installation, unplug the board’s USB cable then plug it again after 30 seconds

In case the driver has been installed probably, you can see the device’s COM port in the device manager window.

WiCardKit Programmer Software Installation

To installation go to “Software Bin” folder and click on “setup”, then in the installation window, click on “Install”.

The software will be installed automatically and a shortcut icon will be added on your desktop. It will run automatically right after setup and will ask you to select “COM” port.

WiCardKit Programmer Hardware Detection

After plugging the WiCardKit 1.0 board USB cable, select the COM port of the board.

In case everything is ok, “WiCardKit 1.0 Found” will be appeared in the bottom of the window.

Chip Programming

For the chip programming, first select your chip from “chip selection” drop down menu.

And also the “Dip Switch” configuration of the board will appear and configure the switches.

You can choose and select one of the.hex,.rom and also.bin forma files for the flash and.hex,.eep,.bin for the eeprom memory programming.

In the “Fuse and Config Bits” section you can see and set the lock and fuse bits value.

The “Device IDs and Status” section show microcontroller IDs and calibration bytes.

“Check” button reads the Device IDs, calibration, lock and fuse bytes.

“Erase and Unlock” erases the flash memory (and eeprom if eesave is not programmed) and then set the fuse bits to default, so the chip can be programmed with regular serial programmer.

“Program and Verify” erases the flash memory and then programs the selected files into the chip and finally will program the fuse bits if have been set.

“Read EEprom” reads the eeprom memory and saves it as a.bin file.

“Read Flash” reads the flash memory and saves it as a.bin file

“Write Config/Fuse” programs the fuse and lock bit data.
