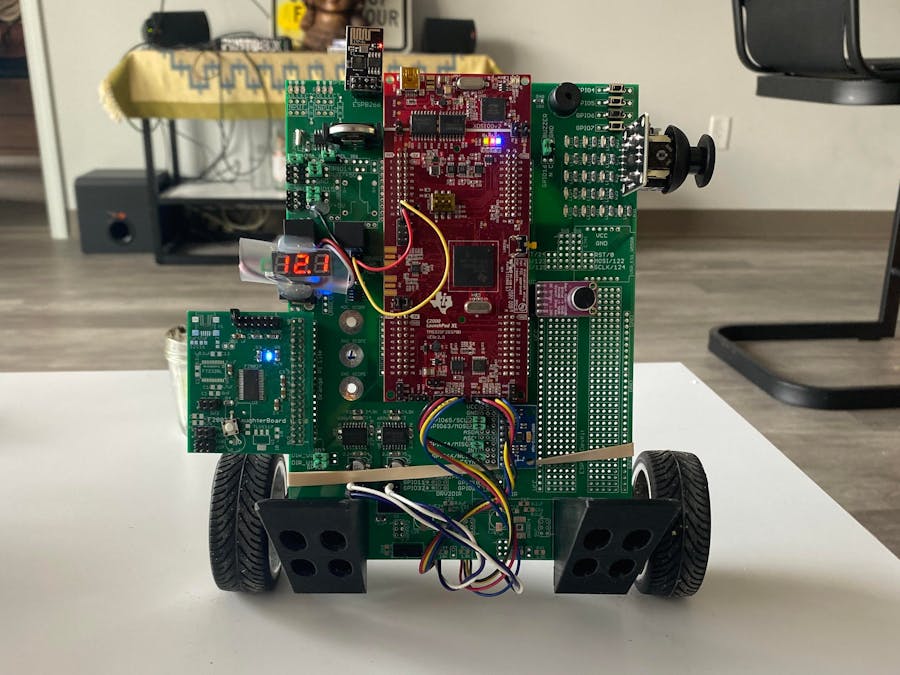

WIFI Controlled Segbot

//#############################################################################
// FILE:   labstarter_main.c
//
// TITLE:  Lab Starter
//#############################################################################

// Included Files
#include <stdio.h>
#include <stdlib.h>
#include <stdarg.h>
#include <string.h>
#include <math.h>
#include <limits.h>
#include "F28x_Project.h"
#include "driverlib.h"
#include "device.h"
#include "f28379dSerial.h"
#include "LEDPatterns.h"
#include "song.h"
#include "dsp.h"
#include "fpu32/fpu_rfft.h"

#define PI          3.1415926535897932384626433832795
#define TWOPI       6.283185307179586476925286766559
#define HALFPI      1.5707963267948966192313216916398
#define RADSTOFT    0.10788008 //   1/9.269552

// Interrupt Service Routines predefinition
__interrupt void cpu_timer0_isr(void);
__interrupt void cpu_timer1_isr(void);
__interrupt void cpu_timer2_isr(void);
__interrupt void SPIB_isr(void);
__interrupt void SWI_isr(void);
__interrupt void ADCA_ISR(void) ;

void serialRXA(serial_t *s, char data);
void serialRXC(serial_t *s, char data);

void setupSpib(void);
void init_eQEPs(void);
float readEncLeft(void);
float readEncRight(void);
void setEPWM2A(float ctreff);
void setEPWM2B(float ctreff);
void setDACA(float dacouta);
void setDACB(float dacoutb);

// Count variables
uint32_t numTimer0calls = 0;
uint32_t numTimer1calls = 0;
uint32_t numSPIcalls = 0;
uint32_t numSWIcalls = 0;
uint32_t numRXA = 0;
uint16_t UARTPrint = 0;
uint16_t LEDdisplaynum = 0;
uint32_t adcacount = 0;
int16_t ESP8266whichcommand = 0;
int16_t ESP8266insidecommands = 0;

//flags
int16_t updown = 1;

//encoder readings
float rightrads = 0.0;
float leftrads = 0.0;
float rightrads_1 = 0.0;
float leftrads_1 = 0.0;

//control eff
float uRight = 5.0;
float uLeft = 5.0;
float ubal = 0;

// reference / desired values
float Vref = 0.2;
float turn_ref = 0.5;
float turn_ref_1 = 0;

//gains
float K1 = -60.0;
float K2 = -6.0;
float K3 = -1.1;
float Kp = 3.0;
float Ki = 20.0;
float Kd = 0.08;

//wheel position
float pLeft_k = 0.0; //current position
float pLeft_k_1 = 0.0; //previous position
float pRight_k = 0.0;
float pRight_k_1 = 0.0;

//wheel velocities
float vLeft_k = 0.0;
float vLeft_k_1 = 0;
float vRight_k = 0.0;
float vRight_k_1=0;

//turn position, velocity
float WhlDiff = 0;
float vel_WhlDiff = 0;
float WhlDiff_1 = 0;
float vel_WhlDiff_1 = 0;
float turn = 0;
float turnrate = 0;
float turnrate_1 = 0;

//error terms
float e_Diff_k = 0;
float e_Diff_k_1 = 0;

//Integral terms
float I_Diff_k = 0;
float I_Diff_k_1 = 0;
float I_t_rate_k = 0;
float I_t_rate_k_1 = 0;

//adca readings
int16_t adca0result = 0;
int16_t adca1result = 0;
float adca0volts = 0;
float adca1volts = 0;

//gyro and accel readings
int16_t dummy = 0;
int16_t gyroXraw = 0;
int16_t gyroYraw = 0;
int16_t gyroZraw = 0;
int16_t acclXraw = 0;
int16_t acclYraw = 0;
int16_t acclZraw = 0;
float gyrox = 0.0;
float gyroy = 0.0;
float gyroz = 0.0;
float accelx = 0.0;
float accely = 0.0;
float accelz = 0.0;

//offsets
float accelx_offset = 0;
float accely_offset = 0;
float accelz_offset = 0;
float gyrox_offset  = 0;
float gyroy_offset  = 0;
float gyroz_offset  = 0;
float FB_offset = 0.27;

//calibration stuff
float accelzBalancePoint = -.773;
int16 IMU_data[9];
uint16_t temp=0;
int16_t doneCal = 0;
float tilt_value    = 0;
float tilt_array[4] = {0, 0, 0, 0};
float gyro_value    = 0;
float gyro_array[4] = {0, 0, 0, 0};
float LeftWheelArray[4] = {0,0,0,0};
float RightWheelArray[4] = {0,0,0,0};
float LeftWheel = 0;
float RightWheel = 0;

// Kalman Filter vars
float T = 0.001;        //sample rate, 1ms
float Q = 0.01; // made global to enable changing in runtime
float R = 25000;//50000;
float kalman_tilt = 0;
float kalman_P = 22.365;
int16_t SpibNumCalls = -1;
float pred_P = 0;
float kalman_K = 0;
int32_t timecount = 0;
int16_t calibration_state = 0;
int32_t calibration_count = 0;

void main(void)
{
    // PLL, WatchDog, enable Peripheral Clocks
    // This example function is found in the F2837xD_SysCtrl.c file.
    InitSysCtrl();

    InitGpio();

    // Blue LED on LuanchPad
    GPIO_SetupPinMux(31, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(31, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPASET.bit.GPIO31 = 1;

    // Red LED on LaunchPad
    GPIO_SetupPinMux(34, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(34, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPBSET.bit.GPIO34 = 1;

    // LED1 and PWM Pin
    GPIO_SetupPinMux(22, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(22, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPACLEAR.bit.GPIO22 = 1;

    // LED2
    GPIO_SetupPinMux(94, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(94, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPCCLEAR.bit.GPIO94 = 1;

    // LED3
    GPIO_SetupPinMux(95, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(95, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPCCLEAR.bit.GPIO95 = 1;

    // LED4
    GPIO_SetupPinMux(97, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(97, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPDCLEAR.bit.GPIO97 = 1;

    // LED5
    GPIO_SetupPinMux(111, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(111, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPDCLEAR.bit.GPIO111 = 1;

    // LED6
    GPIO_SetupPinMux(130, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(130, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPECLEAR.bit.GPIO130 = 1;

    // LED7
    GPIO_SetupPinMux(131, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(131, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPECLEAR.bit.GPIO131 = 1;

    // LED8
    GPIO_SetupPinMux(25, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(25, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPACLEAR.bit.GPIO25 = 1;

    // LED9
    GPIO_SetupPinMux(26, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(26, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPACLEAR.bit.GPIO26 = 1;

    // LED10
    GPIO_SetupPinMux(27, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(27, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPACLEAR.bit.GPIO27 = 1;

    // LED11
    GPIO_SetupPinMux(60, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(60, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPBCLEAR.bit.GPIO60 = 1;

    // LED12
    GPIO_SetupPinMux(61, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(61, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPBCLEAR.bit.GPIO61 = 1;

    // LED13
    GPIO_SetupPinMux(157, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(157, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPECLEAR.bit.GPIO157 = 1;

    // LED14
    GPIO_SetupPinMux(158, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(158, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPECLEAR.bit.GPIO158 = 1;

    // LED15
    GPIO_SetupPinMux(159, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(159, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPECLEAR.bit.GPIO159 = 1;

    // LED16
    GPIO_SetupPinMux(160, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(160, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPFCLEAR.bit.GPIO160 = 1;

    //WIZNET Reset
    GPIO_SetupPinMux(0, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(0, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPASET.bit.GPIO0 = 1;

    //ESP8266 Reset
    GPIO_SetupPinMux(1, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(1, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPASET.bit.GPIO1 = 1;

    //SPIRAM  CS  Chip Select
    GPIO_SetupPinMux(19, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(19, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPASET.bit.GPIO19 = 1;

    //DRV8874 #1 DIR  Direction
    GPIO_SetupPinMux(29, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(29, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPASET.bit.GPIO29 = 1;

    //DRV8874 #2 DIR  Direction
    GPIO_SetupPinMux(32, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(32, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPBSET.bit.GPIO32 = 1;

    //DAN28027  CS  Chip Select
    GPIO_SetupPinMux(9, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(9, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPASET.bit.GPIO9 = 1;

    //MPU9250  CS  Chip Select
    GPIO_SetupPinMux(66, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(66, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPCSET.bit.GPIO66 = 1;

    //WIZNET  CS  Chip Select
    GPIO_SetupPinMux(125, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(125, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPDSET.bit.GPIO125 = 1;

    //PushButton 1
    GPIO_SetupPinMux(4, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(4, GPIO_INPUT, GPIO_PULLUP);

    //PushButton 2
    GPIO_SetupPinMux(5, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(5, GPIO_INPUT, GPIO_PULLUP);

    //PushButton 3
    GPIO_SetupPinMux(6, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(6, GPIO_INPUT, GPIO_PULLUP);

    //PushButton 4
    GPIO_SetupPinMux(7, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(7, GPIO_INPUT, GPIO_PULLUP);

    //Joy Stick Pushbutton
    GPIO_SetupPinMux(8, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(8, GPIO_INPUT, GPIO_PULLUP);

    //EPWM2A
    GPIO_SetupPinMux(2, GPIO_MUX_CPU1, 1);

    //EPWM2B
    GPIO_SetupPinMux(3, GPIO_MUX_CPU1, 1);

    // Clear all interrupts and initialize PIE vector table:
    // Disable CPU interrupts
    DINT;

    EALLOW;
    //similar settings to epwm12
    EPwm2Regs.TBCTL.bit.FREE_SOFT = 0x2;
    EPwm2Regs.TBCTL.bit.PHSEN = 0;
    EPwm2Regs.TBCTL.bit.CTRMODE=0;
    EPwm2Regs.TBCTL.bit.CLKDIV = 0;
    EPwm2Regs.TBCTR = 0x0;
    //same 50us period
    EPwm2Regs.TBPRD = 2500;
    //start at full duty cycle
    EPwm2Regs.CMPA.bit.CMPA = 2500;
    EPwm2Regs.TBPHS.bit.TBPHS  =0;
    EPwm2Regs.AQCTLA.bit.CAU = 0x1;
    EPwm2Regs.AQCTLA.bit.ZRO = 0x2;
    EDIS;

    EALLOW;
    //set up the other motor, only need to specify registers specific to B
    EPwm2Regs.CMPB.bit.CMPB = 2500;
    EPwm2Regs.AQCTLB.bit.CBU = 0x1;
    EPwm2Regs.AQCTLB.bit.ZRO = 0x2;
    EDIS;

    EALLOW;
    EPwm5Regs.ETSEL.bit.SOCAEN = 0; // Disable SOC on A group
    EPwm5Regs.TBCTL.bit.CTRMODE = 3; // freeze counter
    EPwm5Regs.ETSEL.bit.SOCASEL = 0x2; // Select Event when counter equal to PRD
    EPwm5Regs.ETPS.bit.SOCAPRD = 0x1; // Generate pulse on 1st event (“pulse” is the same as “trigger”)
    EPwm5Regs.TBCTR = 0x0; // Clear counter
    EPwm5Regs.TBPHS.bit.TBPHS = 0x0000; // Phase is 0
    EPwm5Regs.TBCTL.bit.PHSEN = 0; // Disable phase loading
    EPwm5Regs.TBCTL.bit.CLKDIV = 0; // divide by 1  50Mhz Clock
    EPwm5Regs.TBPRD = 50000;  // Set Period to 1ms sample.  Input clock is 50MHz.
    // Notice here that we are not setting CMPA or CMPB because we are not using the PWM signal
    EPwm5Regs.ETSEL.bit.SOCAEN = 1; //enable SOCA
    EPwm5Regs.TBCTL.bit.CTRMODE = 0x0; //unfreeze, and enter up count mode
    EDIS;

    EALLOW;
    //write configurations for all ADCs  ADCA, ADCB, ADCC, ADCD
    AdcaRegs.ADCCTL2.bit.PRESCALE = 6; //set ADCCLK divider to /4
    AdcbRegs.ADCCTL2.bit.PRESCALE = 6; //set ADCCLK divider to /4
    AdccRegs.ADCCTL2.bit.PRESCALE = 6; //set ADCCLK divider to /4
    AdcdRegs.ADCCTL2.bit.PRESCALE = 6; //set ADCCLK divider to /4
    AdcSetMode(ADC_ADCA, ADC_RESOLUTION_12BIT, ADC_SIGNALMODE_SINGLE);  //read calibration settings
    AdcSetMode(ADC_ADCB, ADC_RESOLUTION_12BIT, ADC_SIGNALMODE_SINGLE);  //read calibration settings
    AdcSetMode(ADC_ADCC, ADC_RESOLUTION_12BIT, ADC_SIGNALMODE_SINGLE);  //read calibration settings
    AdcSetMode(ADC_ADCD, ADC_RESOLUTION_12BIT, ADC_SIGNALMODE_SINGLE);  //read calibration settings
    //Set pulse positions to late
    AdcaRegs.ADCCTL1.bit.INTPULSEPOS = 1;
    AdcbRegs.ADCCTL1.bit.INTPULSEPOS = 1;
    AdccRegs.ADCCTL1.bit.INTPULSEPOS = 1;
    AdcdRegs.ADCCTL1.bit.INTPULSEPOS = 1;
    //power up the ADCs
    AdcaRegs.ADCCTL1.bit.ADCPWDNZ = 1;
    AdcbRegs.ADCCTL1.bit.ADCPWDNZ = 1;
    AdccRegs.ADCCTL1.bit.ADCPWDNZ = 1;
    AdcdRegs.ADCCTL1.bit.ADCPWDNZ = 1;
    //delay for 1ms to allow ADC time to power up
    DELAY_US(1000);

    //ADCA
    AdcaRegs.ADCSOC0CTL.bit.CHSEL = 0x2;  //SOC0 will convert Channel you choose Does not have to be A0
    AdcaRegs.ADCSOC0CTL.bit.ACQPS = 99; //sample window is acqps + 1 SYSCLK cycles = 500ns
    AdcaRegs.ADCSOC0CTL.bit.TRIGSEL = 0xD;// EPWM5 ADCSOCA or another trigger you choose will trigger SOC0
    AdcaRegs.ADCSOC1CTL.bit.CHSEL = 0x3;  //SOC1 will convert Channel you choose Does not have to be A1
    AdcaRegs.ADCSOC1CTL.bit.ACQPS = 99; //sample window is acqps + 1 SYSCLK cycles = 500ns
    AdcaRegs.ADCSOC1CTL.bit.TRIGSEL = 0xD;// EPWM5 ADCSOCA or another trigger you choose will trigger SOC1
    AdcaRegs.ADCINTSEL1N2.bit.INT1SEL = 0x1; //set to last SOC that is converted and it will set INT1 flag ADCA1
    AdcaRegs.ADCINTSEL1N2.bit.INT1E = 1;   //enable INT1 flag
    AdcaRegs.ADCINTFLGCLR.bit.ADCINT1 = 1; //make sure INT1 flag is cleared
    EDIS;

    EALLOW;
    GpioCtrlRegs.GPAPUD.bit.GPIO2 = 1; // For EPWM2A
    GpioCtrlRegs.GPAPUD.bit.GPIO3 = 1; // For EPWM2B
    EDIS;

    // Initialize the PIE control registers to their default state.
    // The default state is all PIE interrupts disabled and flags
    // are cleared.
    // This function is found in the F2837xD_PieCtrl.c file.
    InitPieCtrl();

    // Disable CPU interrupts and clear all CPU interrupt flags:
    IER = 0x0000;
    IFR = 0x0000;

    // Initialize the PIE vector table with pointers to the shell Interrupt
    // Service Routines (ISR).
    // This will populate the entire table, even if the interrupt
    // is not used in this example.  This is useful for debug purposes.
    // The shell ISR routines are found in F2837xD_DefaultIsr.c.
    // This function is found in F2837xD_PieVect.c.
    InitPieVectTable();

    // Interrupts that are used in this example are re-mapped to
    // ISR functions found within this project
    EALLOW;  // This is needed to write to EALLOW protected registers
    PieVectTable.TIMER0_INT = &cpu_timer0_isr;
    PieVectTable.TIMER1_INT = &cpu_timer1_isr;
    PieVectTable.TIMER2_INT = &cpu_timer2_isr;
    PieVectTable.SCIA_RX_INT = &RXAINT_recv_ready;
    PieVectTable.SCIC_RX_INT = &RXCINT_recv_ready;
    PieVectTable.SCID_RX_INT = &RXDINT_recv_ready;
    PieVectTable.SCIA_TX_INT = &TXAINT_data_sent;
    PieVectTable.SCIC_TX_INT = &TXCINT_data_sent;
    PieVectTable.SCID_TX_INT = &TXDINT_data_sent;
    PieVectTable.SPIB_RX_INT = &SPIB_isr;
    PieVectTable.ADCA1_INT = &ADCA_ISR;

    PieVectTable.EMIF_ERROR_INT = &SWI_isr;
    EDIS;    // This is needed to disable write to EALLOW protected registers

    // Initialize the CpuTimers Device Peripheral. This function can be
    // found in F2837xD_CpuTimers.c
    InitCpuTimers();

    // Configure CPU-Timer 0, 1, and 2 to interrupt every second:
    // 200MHz CPU Freq, 1 second Period (in uSeconds)
    ConfigCpuTimer(&CpuTimer0, 200, 1000);
    ConfigCpuTimer(&CpuTimer1, 200, 4000);
    ConfigCpuTimer(&CpuTimer2, 200, 40000);

    // Enable CpuTimer Interrupt bit TIE
    CpuTimer0Regs.TCR.all = 0x4000;
    CpuTimer1Regs.TCR.all = 0x4000;
    CpuTimer2Regs.TCR.all = 0x4000;

    init_serial(&SerialA,115200,serialRXA);
    init_serial(&SerialC,115200,serialRXC);
    //    init_serial(&SerialD,115200,serialRXD);

    setupSpib();
    init_eQEPs();

    // Enable CPU int1 which is connected to CPU-Timer 0, CPU int13
    // which is connected to CPU-Timer 1, and CPU int 14, which is connected
    // to CPU-Timer 2:  int 12 is for the SWI.
    IER |= M_INT1;
    IER |= M_INT6;
    IER |= M_INT8;  // SCIC SCID
    IER |= M_INT9;  // SCIA
    IER |= M_INT12;
    IER |= M_INT13;
    IER |= M_INT14;

    // Enable TINT0 in the PIE: Group 1 interrupt 7
    PieCtrlRegs.PIEIER1.bit.INTx7 = 1;

    PieCtrlRegs.PIEIER1.bit.INTx1 = 1;
    // Enable SWI in the PIE: Group 12 interrupt 9
    PieCtrlRegs.PIEIER12.bit.INTx9 = 1;

    PieCtrlRegs.PIEIER6.bit.INTx3 = 1;

    // Enable global Interrupts and higher priority real-time debug events
    EINT;  // Enable Global interrupt INTM
    ERTM;  // Enable Global realtime interrupt DBGM


    serial_send(&SerialC,"AT\r\n",strlen("AT\r\n"));
    ESP8266whichcommand = 1;
    ESP8266insidecommands = 1;
    // IDLE loop. Just sit and loop forever (optional):
    while(1)
    {
        if (UARTPrint == 1 ) {
            //                serial_printf(&SerialA,"tilt val:%f gyro val:%f left:%f rads/s right:%f rads/s \r\n",tilt_value, gyro_value, LeftWheel, RightWheel);
            UARTPrint = 0;
        }
    }
}

// SWI_isr,  Using this interrupt as a Software started interrupt
__interrupt void SWI_isr(void) {
    // These three lines of code allow SWI_isr, to be interrupted by other interrupt functions
    // making it lower priority than all other Hardware interrupts.
    PieCtrlRegs.PIEACK.all = PIEACK_GROUP12;
    asm("       NOP");                    // Wait one cycle
    EINT;                                 // Clear INTM to enable interrupts
    ////////////

    pRight_k = RightWheel; //rads
    pLeft_k = LeftWheel; //rads
    WhlDiff = pLeft_k - pRight_k;

    turn_ref = turn_ref_1 + (0.004 * (turnrate + turnrate_1)*0.5);
    e_Diff_k = turn_ref - WhlDiff;
    I_Diff_k = I_Diff_k_1 + (0.004 * (e_Diff_k + e_Diff_k_1) * 0.5);

    vRight_k = (0.6*vRight_k_1) + 100*(pRight_k-pRight_k_1); //   rads/s
    vLeft_k = (0.6*vLeft_k_1) + 100*(pLeft_k-pLeft_k_1); //  rads/s
    vel_WhlDiff = (0.333*vel_WhlDiff_1)+ (166.667*(WhlDiff - WhlDiff_1));

    turn = (Kp*e_Diff_k) + (Ki*I_Diff_k) - (Kd*vel_WhlDiff);

    if (fabs(turn > 3)) {
        I_Diff_k = I_Diff_k_1;
    }
    if (fabs(turn > 4)) {
        turn = 4.0;
    }

    ubal = -(K1*tilt_value)-(K2*gyro_value)-(K3*(vLeft_k+vRight_k)/2.0);
    uRight = (ubal/2.0) - turn + FB_offset;
    uLeft = (ubal/2.0) + turn + FB_offset;

    setEPWM2A(uRight);
    setEPWM2B(-uLeft);

    pRight_k_1 = pRight_k;
    pLeft_k_1 = pLeft_k;
    vRight_k_1 = vRight_k;
    vLeft_k_1 = vLeft_k;
    WhlDiff_1 = WhlDiff;
    vel_WhlDiff_1 = vel_WhlDiff;
    e_Diff_k_1 = e_Diff_k;
    I_Diff_k_1 = I_Diff_k;
    turnrate_1 = turnrate;
    turn_ref_1 = turn_ref;

    ////////////
    numSWIcalls++;
    DINT;
}

// cpu_timer0_isr - CPU Timer0 ISR
__interrupt void cpu_timer0_isr(void)
{
    //    CpuTimer0.InterruptCount++;

    numTimer0calls++;

    // Acknowledge this interrupt to receive more interrupts from group 1
    PieCtrlRegs.PIEACK.all = PIEACK_GROUP1;
}

// cpu_timer1_isr - CPU Timer1 ISR
__interrupt void cpu_timer1_isr(void)
{
    numTimer1calls++;
}

// cpu_timer2_isr CPU Timer2 ISR
__interrupt void cpu_timer2_isr(void)
{
    CpuTimer2.InterruptCount++;
}

__interrupt void ADCA_ISR(void){
    adcacount++;

    //obtain bit vals
    adca0result = AdcaResultRegs.ADCRESULT0;
    adca1result = AdcaResultRegs.ADCRESULT1;

    //covert ADCIND0, ADCIND1 to volts
    adca0volts = adca0result*(3.0/4095.0);
    adca1volts = adca1result*(3.0/4095.0);

    //begin spi transmission
    //Clear GPIO9 Low to act as a Slave Select.  Right now, just to scope.  Later to select DAN28027 chip
    GpioDataRegs.GPCCLEAR.bit.GPIO66 = 1;
    SpibRegs.SPIFFRX.bit.RXFFIL = 8;  // Issue the SPIB_RX_INT when two values are in the RX FIFO
    SpibRegs.SPITXBUF = ( 0x8000 | 0x3A00 );  // accl
    SpibRegs.SPITXBUF = 0;
    SpibRegs.SPITXBUF = 0;
    SpibRegs.SPITXBUF = 0;
    SpibRegs.SPITXBUF = 0;
    SpibRegs.SPITXBUF = 0;  // something so you can see the pattern on the Oscilloscope
    SpibRegs.SPITXBUF = 0;
    SpibRegs.SPITXBUF = 0;

    AdcaRegs.ADCINTFLGCLR.bit.ADCINT1 = 1;  //clear interrupt flag
    PieCtrlRegs.PIEACK.all = PIEACK_GROUP1;

}

__interrupt void SPIB_isr(void){
    GpioDataRegs.GPCSET.bit.GPIO66 = 1;

    dummy = SpibRegs.SPIRXBUF;
    acclXraw = SpibRegs.SPIRXBUF;
    acclYraw = SpibRegs.SPIRXBUF;
    acclZraw = SpibRegs.SPIRXBUF;
    dummy = SpibRegs.SPIRXBUF; // Read first 16 bit value off RX FIFO. Probably is zero since no chip
    gyroXraw = SpibRegs.SPIRXBUF; // Read second 16 bit value off RX FIFO.  Again probably zero
    gyroYraw = SpibRegs.SPIRXBUF;
    gyroZraw = SpibRegs.SPIRXBUF;

    //    GpioDataRegs.GPASET.bit.GPIO9 = 1; // Set GPIO 9 high to end Slave Select.  Now to Scope. Later to deselect DAN28027
    // Later when actually communicating with the DAN28027 do something with the data.  Now do nothing.

    accelx = acclXraw*(4.0/32767.0);
    accely = acclYraw*(4.0/32767.0);
    accelz = acclZraw*(4.0/32767.0);
    gyrox = gyroXraw*(250.0/32767.0);
    gyroy = gyroYraw*(250.0/32767.0);
    gyroz = gyroZraw*(250.0/32767.0);

    if(calibration_state == 0){
        calibration_count++;
        if (calibration_count == 2000) {
            calibration_state = 1;
            calibration_count = 0;
        }
    }
    else if(calibration_state == 1){
        accelx_offset+=accelx;
        accely_offset+=accely;
        accelz_offset+=accelz;
        gyrox_offset+=gyrox;
        gyroy_offset+=gyroy;
        gyroz_offset+=gyroz;
        calibration_count++;
        if (calibration_count == 2000) {
            calibration_state = 2;
            accelx_offset/=2000.0;
            accely_offset/=2000.0;
            accelz_offset/=2000.0;
            gyrox_offset/=2000.0;
            gyroy_offset/=2000.0;
            gyroz_offset/=2000.0;
            calibration_count = 0;
            doneCal = 1;
        }
    }
    else if(calibration_state == 2){
        accelx -=(accelx_offset);
        accely -=(accely_offset);
        accelz -=(accelz_offset-accelzBalancePoint);
        gyrox -= gyrox_offset;
        gyroy -= gyroy_offset;
        gyroz -= gyroz_offset;

        /*--------------Kalman Filtering code start---------------------------------------------------------------------*/
        float tiltrate = (gyrox*PI)/180.0; // rad/s
        float pred_tilt, z, y, S;

        // Prediction Step
        pred_tilt = kalman_tilt + T*tiltrate;
        pred_P = kalman_P + Q;

        // Update Step
        z = -accelz;  // Note the negative here due to the polarity of AccelZ
        y = z - pred_tilt;
        S = pred_P + R;
        kalman_K = pred_P/S;
        kalman_tilt = pred_tilt + kalman_K*y;
        kalman_P = (1 - kalman_K)*pred_P;
        SpibNumCalls++;

        // Kalman Filter used
        tilt_array[SpibNumCalls] = kalman_tilt;
        gyro_array[SpibNumCalls] = tiltrate;
        LeftWheelArray[SpibNumCalls] = -readEncLeft();
        RightWheelArray[SpibNumCalls] = readEncRight();

        if (SpibNumCalls >= 3) {  // should never be greater than 3
            tilt_value = (tilt_array[0] + tilt_array[1] + tilt_array[2] + tilt_array[3])/4.0;
            gyro_value = (gyro_array[0] + gyro_array[1] + gyro_array[2] + gyro_array[3])/4.0;
            LeftWheel=(LeftWheelArray[0]+LeftWheelArray[1]+LeftWheelArray[2]+LeftWheelArray[3])/4.0;
            RightWheel=(RightWheelArray[0]+RightWheelArray[1]+RightWheelArray[2]+RightWheelArray[3])/4.0;
            SpibNumCalls = -1;

            PieCtrlRegs.PIEIFR12.bit.INTx9 = 1;  // Manually cause the interrupt for the SWI
        }
    }

    timecount++;
    if((timecount%200) == 0) {
        if(doneCal == 0) {
            GpioDataRegs.GPATOGGLE.bit.GPIO31 = 1;  // Blink Blue LED while calibrating
        }
        GpioDataRegs.GPBTOGGLE.bit.GPIO34 = 1;  // Always Block Red LED
        UARTPrint = 1;  // Tell While loop to print
    }

    SpibRegs.SPIFFRX.bit.RXFFOVFCLR = 1;      // Clear Overflow flag just in case of an overflow
    SpibRegs.SPIFFRX.bit.RXFFINTCLR = 1;      // Clear RX FIFO Interrupt flag so next interrupt will happen

    PieCtrlRegs.PIEACK.all = PIEACK_GROUP6;  // Acknowledge INT6 PIE interrupt

}

// This function is called each time a char is recieved over UARTA.
char sendto8266[10];
int16_t sendingto8266 = 0;
int16_t collect = 0;
void serialRXA(serial_t *s, char data) {
    numRXA ++;
    if (sendingto8266 == 0) {
        sendto8266[0] = data;
        sendingto8266 = 1;
        serial_send(&SerialC,"AT+CIPSEND=0,1\r\n",strlen("AT+CIPSEND=0,1\r\n"));
        //serial_send(&SerialC,sendto8266,1);
    }
}

char sendback[10];
char past4[4] = {'\0','\0','\0','\0'};
char gusarray[50] ;
float myfloat = 0;
uint16_t turnflag = 0;
uint16_t velflag = 0;
uint16_t fbflag = 0;
uint16_t g= 0;
// This function is called each time a char is received over UARTA.
void serialRXC(serial_t *s, char data) {

    if (ESP8266insidecommands == 1) {
        if (ESP8266whichcommand == 1) {
            past4[0] = data;
            if ((past4[0]=='\n') && (past4[1]=='\r') && (past4[2]=='K') && (past4[3]=='O')) {

                ESP8266whichcommand = 2;
                serial_send(&SerialC,"AT+CWMODE=3\r\n",strlen("AT+CWMODE=3\r\n"));
                past4[0] = '\0';
                past4[1] = '\0';
                past4[2] = '\0';
                past4[3] = '\0';
            }
            past4[3] = past4[2];
            past4[2] = past4[1];
            past4[1] = past4[0];
        } else if (ESP8266whichcommand == 2) {
            past4[0] = data;
            if ((past4[0]=='\n') && (past4[1]=='\r') && (past4[2]=='K') && (past4[3]=='O')) {

                ESP8266whichcommand = 3;
                serial_send(&SerialC,"AT+CWJAP=\"MECHNIGHT\",\"f33dback5\"\r\n",strlen("AT+CWJAP=\"MECHNIGHT\",\"f33dback5\"\r\n"));
                //serial_send(&SerialC,"AT+CWJAP=\"Jesusloves\",\"n8watchit\"\r\n",strlen("AT+CWJAP=\"JESUSLOVES\",\"n8watchit\"\r\n"));
                past4[0] = '\0';
                past4[1] = '\0';
                past4[2] = '\0';
                past4[3] = '\0';
            }
            past4[3] = past4[2];
            past4[2] = past4[1];
            past4[1] = past4[0];
        } else if (ESP8266whichcommand == 3) {
            past4[0] = data;
            if ((past4[0]=='\n') && (past4[1]=='\r') && (past4[2]=='K') && (past4[3]=='O')) {

                ESP8266whichcommand = 4;
                serial_send(&SerialC, "AT+CIPSTA=\"192.168.1.52\"\r\n", strlen("AT+CIPSTA=\"192.168.1.52\"\r\n"));
                past4[0] = '\0';
                past4[1] = '\0';
                past4[2] = '\0';
                past4[3] = '\0';
            }
            past4[3] = past4[2];
            past4[2] = past4[1];
            past4[1] = past4[0];
        } else if (ESP8266whichcommand == 4) {
            past4[0] = data;
            if ((past4[0]=='\n') && (past4[1]=='\r') && (past4[2]=='K') && (past4[3]=='O')) {

                ESP8266whichcommand = 5;
                serial_send(&SerialC,"AT+CIPMUX=1\r\n", strlen("AT+CIPMUX=1\r\n"));
                past4[0] = '\0';
                past4[1] = '\0';
                past4[2] = '\0';
                past4[3] = '\0';
            }
            past4[3] = past4[2];
            past4[2] = past4[1];
            past4[1] = past4[0];
        } else if (ESP8266whichcommand == 5) {
            past4[0] = data;
            if ((past4[0]=='\n') && (past4[1]=='\r') && (past4[2]=='K') && (past4[3]=='O')) {

                ESP8266whichcommand = 6;
                serial_send(&SerialC,"AT+CIPSERVER=1,1336\r\n", strlen("AT+CIPSERVER=1,1336\r\n"));
                past4[0] = '\0';
                past4[1] = '\0';
                past4[2] = '\0';
                past4[3] = '\0';
            }
            past4[3] = past4[2];
            past4[2] = past4[1];
            past4[1] = past4[0];
        } else if (ESP8266whichcommand == 6) {
            past4[0] = data;
            if ((past4[0]=='\n') && (past4[1]=='\r') && (past4[2]=='K') && (past4[3]=='O')) {

                ESP8266whichcommand = 12;  // should never get in 12
                ESP8266insidecommands = 0;
                past4[0] = '\0';
                past4[1] = '\0';
                past4[2] = '\0';
                past4[3] = '\0';
            }
            past4[3] = past4[2];
            past4[2] = past4[1];
            past4[1] = past4[0];

        } else if (ESP8266whichcommand == 12) {
            sendback[0] = ' ';
            sendback[1] = 'D';
            sendback[2] = 'a';
            sendback[3] = 'n';
            serial_send(&SerialA,sendback,4);
        }

        sendback[0] = data;
        serial_send(&SerialA,sendback,1);
    } else {  // ESP8266insidecommands == 0
        // for now just echo char
        if (sendingto8266 == 1) {
            if (data == '>') {
                serial_send(&SerialC,sendto8266,1);
                sendingto8266 = 0;
            }
        }
        sendback[0] = data;
        serial_send(&SerialA,sendback,1);

        if (collect==0){
            if (data == 't'){
                collect = 1;
                turnflag = 1;
            }
            else if (data == 'v'){
                collect = 1;
                velflag = 1;
            }
            else if (data == 'b'){
                collect = 1;
                fbflag = 1;
            }
        }
        else{
            if (data =='\n'){
                gusarray[g]='\0';
                sscanf(gusarray,"%f",&myfloat);
                if (turnflag == 1){
                    turnrate = myfloat;
                    turnflag = 0;
                }
                else if (velflag == 1){
                    Vref = myfloat;
                    velflag = 0;
                }
                else if (fbflag == 1){
                    FB_offset = myfloat;
                    fbflag = 0;
                }
                collect = 0;
                g=0;
            }
            else{
                gusarray[g]=data;
                g++;
                if (g>=50){
                    g = 0;
                }
            }
        }
//        if (gusarray[0] == 't'){
//            turnrate = myfloat;
//        }
//        else if (gusarray[0] == 'v'){
//            Vref = myfloat;
//        }
    }
}

void setupSpib(void) //Call this function in main() somewhere after the DINT; line of code.
{
    int16_t temp = 0;
    //Step 1.
    GPIO_SetupPinMux(9, GPIO_MUX_CPU1, 0);  // Set as GPIO9 and used as DAN28027 SS
    GPIO_SetupPinOptions(9, GPIO_OUTPUT, GPIO_PUSHPULL);  // Make GPIO9 an Output Pin
    GpioDataRegs.GPASET.bit.GPIO9 = 1;  //Initially Set GPIO9/SS High so DAN28027 is not selected

    GPIO_SetupPinMux(66, GPIO_MUX_CPU1, 0);  // Set as GPIO66 and used as MPU-9250 SS
    GPIO_SetupPinOptions(66, GPIO_OUTPUT, GPIO_PUSHPULL);  // Make GPIO66 an Output Pin
    GpioDataRegs.GPCSET.bit.GPIO66 = 1;  //Initially Set GPIO66/SS High so MPU-9250 is not selected

    GPIO_SetupPinMux(63, GPIO_MUX_CPU1, 15);  //Set GPIO63 pin to SPISIMOB
    GPIO_SetupPinMux(64, GPIO_MUX_CPU1, 15);  //Set GPIO64 pin to SPISOMIB
    GPIO_SetupPinMux(65, GPIO_MUX_CPU1, 15);  //Set GPIO65 pin to SPICLKB

    EALLOW;
    GpioCtrlRegs.GPBPUD.bit.GPIO63   = 0;  // Enable Pull-ups on SPI PINs Recommended by TI for SPI Pins
    GpioCtrlRegs.GPCPUD.bit.GPIO64   = 0;
    GpioCtrlRegs.GPCPUD.bit.GPIO65   = 0;
    GpioCtrlRegs.GPBQSEL2.bit.GPIO63 = 3;  // Set I/O pin to asynchronous mode recommended for SPI
    GpioCtrlRegs.GPCQSEL1.bit.GPIO64 = 3;  // Set I/O pin to asynchronous mode recommended for SPI
    GpioCtrlRegs.GPCQSEL1.bit.GPIO65 = 3;  // Set I/O pin to asynchronous mode recommended for SPI
    EDIS;

    // ---------------------------------------------------------------------------
    SpibRegs.SPICCR.bit.SPISWRESET = 0;  // Put SPI in Reset

    SpibRegs.SPICTL.bit.CLK_PHASE = 1;  //This happens to be the mode for both the DAN28027 and
    SpibRegs.SPICCR.bit.CLKPOLARITY = 0;  //The MPU-9250,  Mode 01.
    SpibRegs.SPICTL.bit.MASTER_SLAVE = 1;  // Set to SPI Master
    SpibRegs.SPICCR.bit.SPICHAR = 0xF;  // Set to transmit and receive 16 bits each write to SPITXBUF
    SpibRegs.SPICTL.bit.TALK = 1;  // Enable transmission
    SpibRegs.SPIPRI.bit.FREE = 1;  // Free run, continue SPI operation
    SpibRegs.SPICTL.bit.SPIINTENA = 0;  // Disables the SPI interrupt

    SpibRegs.SPIBRR.bit.SPI_BIT_RATE = 49; // Set SCLK bit rate to 1 MHz so 1us period.  SPI base clock is
    // 50MHZ.  And this setting divides that base clock to create SCLK’s period
    SpibRegs.SPISTS.all = 0x0000;  // Clear status flags just in case they are set for some reason

    SpibRegs.SPIFFTX.bit.SPIRST = 1;// Pull SPI FIFO out of reset, SPI FIFO can resume transmit or receive.
    SpibRegs.SPIFFTX.bit.SPIFFENA = 1;    // Enable SPI FIFO enhancements
    SpibRegs.SPIFFTX.bit.TXFIFO =  0;    // Write 0 to reset the FIFO pointer to zero, and hold in reset
    SpibRegs.SPIFFTX.bit.TXFFINTCLR = 1;    // Write 1 to clear SPIFFTX[TXFFINT] flag just in case it is set

    SpibRegs.SPIFFRX.bit.RXFIFORESET = 0;    // Write 0 to reset the FIFO pointer to zero, and hold in reset
    SpibRegs.SPIFFRX.bit.RXFFOVFCLR = 1;    // Write 1 to clear SPIFFRX[RXFFOVF] just in case it is set
    SpibRegs.SPIFFRX.bit.RXFFINTCLR = 1;    // Write 1 to clear SPIFFRX[RXFFINT] flag just in case it is set
    SpibRegs.SPIFFRX.bit.RXFFIENA = 1;   // Enable the RX FIFO Interrupt.  RXFFST >= RXFFIL

    SpibRegs.SPIFFCT.bit.TXDLY = 0; //Set delay between transmits to 16 spi clocks. Needed by DAN28027 chip

    SpibRegs.SPICCR.bit.SPISWRESET = 1;    // Pull the SPI out of reset

    SpibRegs.SPIFFTX.bit.TXFIFO = 1;    // Release transmit FIFO from reset.
    SpibRegs.SPIFFRX.bit.RXFIFORESET = 1;    // Re-enable receive FIFO operation
    SpibRegs.SPICTL.bit.SPIINTENA = 1;    // Enables SPI interrupt.  !! I don’t think this is needed.  Need to Test

    SpibRegs.SPIFFRX.bit.RXFFIL =0x10; //Interrupt Level to 16 words or more received into FIFO causes interrupt.  This is just the initial setting for the register.  Will be changed below
    //-----------------------------------------------------------------------------------------------------------------

    //Step 2.
    // perform a multiple 16 bit transfer to initialize MPU-9250 registers 0x13,0x14,0x15,0x16
    // 0x17, 0x18, 0x19, 0x1A, 0x1B, 0x1C 0x1D, 0x1E, 0x1F.  Use only one SS low to high for all these writes
    GpioDataRegs.GPCCLEAR.bit.GPIO66 = 1;  // Slave Select Low

    // To address 00x13 write 0x00
    SpibRegs.SPITXBUF = ( 0x1300 | 0x0000 );
    // To address 00x14 write 0x00
    // To address 00x15 write 0x00
    SpibRegs.SPITXBUF = ( 0x0000 | 0x0000 );
    // To address 00x16 write 0x00
    // To address 00x17 write 0x00
    SpibRegs.SPITXBUF = ( 0x0000 | 0x0000 );
    // To address 00x18 write 0x00
    // To address 00x19 write 0x13
    SpibRegs.SPITXBUF = ( 0x0000 | 0x0013 );
    // To address 00x1A write 0x02
    // To address 00x1B write 0x00
    SpibRegs.SPITXBUF = ( 0x0200 | 0x0000 );
    // To address 00x1C write 0x08
    // To address 00x1D write 0x06
    SpibRegs.SPITXBUF = ( 0x0800 | 0x0006 );
    // To address 00x1E write 0x00
    // To address 00x1F write 0x00
    SpibRegs.SPITXBUF = ( 0x0000 | 0x0000 );

    // wait for the correct number of 16 bit values to be received into the RX FIFO
    while(SpibRegs.SPIFFRX.bit.RXFFST !=7);
...

This file has been truncated, please download it to see its full contents.
