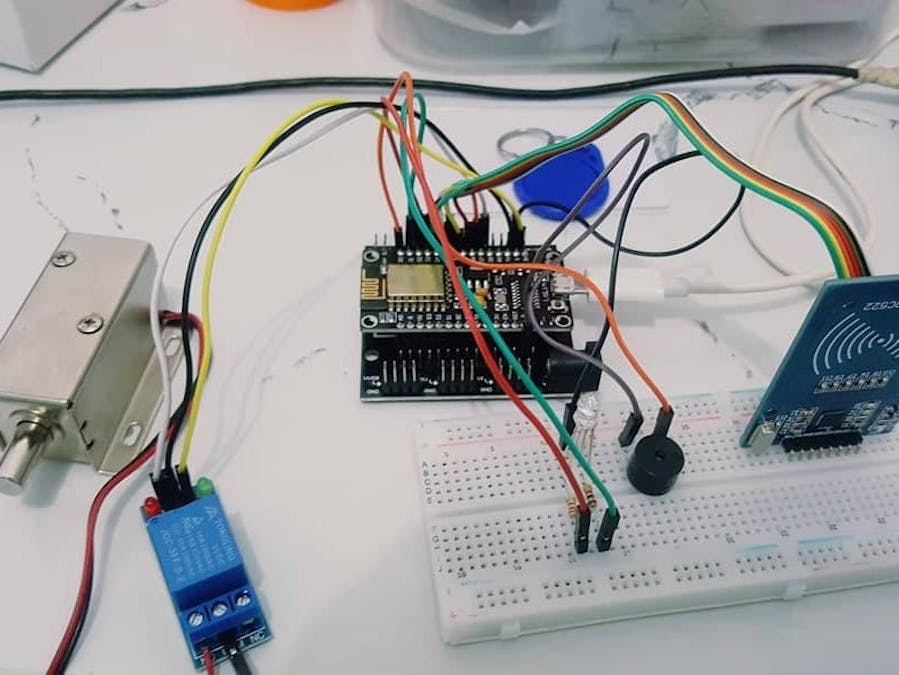

NodeMCU RFID Door Lock

An RFID door lock using an ESP8266 with solenoid lock and relay module.

AdvancedFull instructions provided12,323
NodeMCU RFID Door Lock

Things used in this project

Hardware components

NodeMCU v3 Lolin ESP8266 IoT
×1
NodeMcu ESP8266 Base Plate
×1
Strange Electronic MFRC-522
×1
1 Channel Relay 5V Isolated Module
×1
Solenoid Lock DC 12v
×1
Power Supply 12v
×1
RGB Diffused Common Cathode
RGB Diffused Common Cathode
×1
Resistor 1k ohm
Resistor 1k ohm
×2
Buzzer
Buzzer
×1
Breadboard (generic)
Breadboard (generic)
×1
Jumper wires (generic)
Jumper wires (generic)
×1

Software apps and online services

Arduino IDE
Arduino IDE

Hand tools and fabrication machines

Screwdriver Set

Story

Read more

Schematics

Schematic

Code

NODEMCU_RFID_Door_Lock_.ino

C/C++
//RFID Door Lock By: Mohammed K-a

#include <SPI.h>
#include <MFRC522.h>

#define SS_PIN D4
#define RST_PIN D3
#define LED_G D1 //define green LED pin
#define LED_R D2 //define red LED
#define RELAY D0 //relay pin
#define BUZZER D8 //buzzer pin
#define ACCESS_DELAY 2000
#define DENIED_DELAY 1000
MFRC522 mfrc522(SS_PIN, RST_PIN);   // Create MFRC522 instance.

void setup()
{
  Serial.begin(115200);   // Initiate a serial communication
  SPI.begin();          // Initiate  SPI bus
  mfrc522.PCD_Init();   // Initiate MFRC522
  pinMode(LED_G, OUTPUT);
  pinMode(LED_R, OUTPUT);
  pinMode(RELAY, OUTPUT);
  pinMode(BUZZER, OUTPUT);
  noTone(BUZZER);
  digitalWrite(RELAY, HIGH);
  Serial.println("Put your card to the reader...");
  Serial.println();

}
void loop()
{
  // Look for new cards
  if ( ! mfrc522.PICC_IsNewCardPresent())
  {
    return;
  }
  // Select one of the cards
  if ( ! mfrc522.PICC_ReadCardSerial())
  {
    return;
  }
  //Show UID on serial monitor
  Serial.print("UID tag :");
  String content= "";
  byte letter;
  for (byte i = 0; i < mfrc522.uid.size; i++)
  {
     Serial.print(mfrc522.uid.uidByte[i] < 0x10 ? " 0" : " ");
     Serial.print(mfrc522.uid.uidByte[i], HEX);
     content.concat(String(mfrc522.uid.uidByte[i] < 0x10 ? " 0" : " "));
     content.concat(String(mfrc522.uid.uidByte[i], HEX));
  }
  Serial.println();
  Serial.print("Message : ");
  content.toUpperCase();
  if (content.substring(1) == "C5 94 7C 69") //change here the UID of the card/cards that you want to give access
  {
    Serial.println("Authorized access");
    Serial.println();
    delay(500);
    digitalWrite(RELAY, LOW);
    digitalWrite(LED_G, HIGH);
    delay(ACCESS_DELAY);
    digitalWrite(RELAY, HIGH);
    digitalWrite(LED_G, LOW);
  }

 else   {
    Serial.println(" Access denied");
    digitalWrite(LED_R, HIGH);
    tone(BUZZER, 300);
    delay(DENIED_DELAY);
    digitalWrite(LED_R, LOW);
    noTone(BUZZER);
  }
}
