ZYBO Z7 20 Webcam on the Petalinux

Embedded linux on ZYNQ! ZYBO Z7 20 FPGA board Webcam on the Petalinux

The Zybo Z7-20 board, integrated with PetaLinux, supports real-time embedded vision appications using the Pcam 5C webcam.

I have explored hardware device additions and customizing using the Yocto framework using petalinux tools, but for this demo, I have streamlined the process to keep it as simple as possible. A detailed lecture video will be created later, so stay tuned!

• 1. Setting up Petalinux tools environments
• 2. Petalinux booting image from build from BSP release
• 3. Booting Petalinux on a ZYNQ Board
• 4. Webcam service on petalinux

1. Setting up Petalinux tools environments

The officially released version for ZYBO Z7 is 2022.1. While it is possible to download the project and generate a hardware project using TCL instead of the BSP file, this post will focus on the convenient approach of using the BSP release.

Download the v2022.1 Petalinux tools:

https://www.xilinx.com/support/download/index.html/content/xilinx/en/downloadNav/embedded-design-tools/archive.html

Install v2022.1 petalinux tools:

# mkdir -p ~/petalinux/<petalinux-version>
# ./petalinux-v<petalinux-version>-installer.run --dir  ~/petalinux/<petalinux-version>

# https://github.com/Digilent/Zybo-Z7/releases/tag/20%2FPetalinux%2F2022.1-1
$ mkdir -p ~/petalinux/petalinux-v2022.1-04191534 # Zybo Z7 : 667MHz dual-core Cortex-A9 processor with tightly integrated Xilinx FPGA

# Cortex-A9 -> arm v7
$ chmod +x petalinux-v2022.1-04191534-installer.run $ ./petalinux-v2022.1-04191534-installer.run --dir ~/petalinux/petalinux-v2022.1-04191534 --platform "arm"

We need to install arm v7 package for ZYBO Z7 SoC.

Let's go.

$ ./petalinux-v2022.1-04191534-installer.run --dir ~/petalinux/petalinux-v2022.1-04191534 --platform "arm"
INFO: Checking installation environment requirements...
WARNING: This is not a supported OS
INFO: Checking free disk space
INFO: Checking installed tools
INFO: Checking installed development libraries
INFO: Checking network and other services
WARNING: No tftp server found - please refer to "UG1144  PetaLinux Tools Documentation Reference Guide" for its impact and solution
INFO: Checking installer checksum...
INFO: Extracting PetaLinux installer...

LICENSE AGREEMENTS

PetaLinux SDK contains software from a number of sources.  Please review
the following licenses and indicate your acceptance of each to continue.

You do not have to accept the licenses, however if you do not then you may
not use PetaLinux SDK.

Use PgUp/PgDn to navigate the license viewer, and press 'q' to close

Press Enter to display the license agreements
Do you accept Xilinx End User License Agreement? [y/N] > y
Do you accept Third Party End User License Agreement? [y/N] > y
INFO: Installing PetaLinux...
INFO: Checking PetaLinux installer integrity...
INFO: Installing PetaLinux SDK to "/home/kim/petalinux/petalinux-v2022.1-04191534/."
INFO: Installing buildtools in /home/kim/petalinux/petalinux-v2022.1-04191534/./components/yocto/buildtools
INFO: Installing buildtools-extended in /home/kim/petalinux/petalinux-v2022.1-04191534/./components/yocto/buildtools_extended
INFO: PetaLinux SDK has been installed to /home/kim/petalinux/petalinux-v2022.1-04191534/.

2. Petalinux booting image from build from BSP release

We are now ready to run v2022.1 Petalinux tools.

# source <path-to-installed-PetaLinux>/settings.sh

source ~/petalinux/petalinux-v2022.1-04191534/settings.sh
PetaLinux environment set to '/home/kim/petalinux/petalinux-v2022.1-04191534'
WARNING: /bin/sh is not bash!
bash is PetaLinux recommended shell. Please set your default shell to bash.
WARNING: This is not a supported OS
INFO: Checking free disk space
INFO: Checking installed tools
INFO: Checking installed development libraries
INFO: Checking network and other services
WARNING: No tftp server found - please refer to "UG1144 2022.1 PetaLinux Tools Documentation Reference Guide" for its impact and solution

Download the 2022.1 Petalinux BSP release:

https://github.com/Digilent/Zybo-Z7/releases/tag/10%2FPetalinux%2F2022.1-1

I have downloaded the file to /mnt/d/ZYBO-Z7-20/Zybo-Z7-20-Petalinux-2022-1.bsp in this demo. You just need to download the package to your desired location and run the command.

# cd <path-to-project-folder>
# petalinux-create -t project -s <path-to-bsp>

$ mkdir -p /mnt/d/ZYBO-Z7-20/project
$ cd /mnt/d/ZYBO-Z7-20/project
$ petalinux-create -t project -s /mnt/d/ZYBO-Z7-20/Zybo-Z7-20-Petalinux-2022-1.bsp
INFO: Create project:
INFO: Projects:
INFO:   * os
INFO: Has been successfully installed to /mnt/d/ZYBO-Z7-20/project/
INFO: New project successfully created in /mnt/d/ZYBO-Z7-20/project/

Tools will make The tool will generate the necessary images for booting.

/mnt/d/ZYBO-Z7-20/project/os/pre-built/linux$ tree
.
├── etc
├── images
│   ├── BOOT.BIN
│   ├── boot.scr
│   ├── bootgen.bif
│   ├── config
│   ├── image.ub
│   ├── pxelinux.cfg
│   │   └── default
│   ├── rootfs.cpio
│   ├── rootfs.cpio.gz
│   ├── rootfs.cpio.gz.u-boot
│   ├── rootfs.ext4
│   ├── rootfs.jffs2
│   ├── rootfs.manifest
│   ├── rootfs.tar.gz
│   ├── system.bit
│   ├── system.dtb
│   ├── u-boot-dtb.bin
│   ├── u-boot-dtb.elf
│   ├── u-boot.bin
│   ├── u-boot.elf
│   ├── uImage
│   ├── vmlinux
│   ├── zImage
│   └── zynq_fsbl.elf
└── implementation
    └── system.bit

3. Booting Petalinux on a ZYNQ Board

Write uEnv.txt file for booting.

kernel_load_address=0x2080000
uenvcmd=run bootkernel
kernel_image=uImage
devicetree_load_address=0x2000000
devicetree_image=system.dtb
machine_name=zybo-zynq7
loadkernel=fatload mmc 0 ${kernel_load_address} ${kernel_image}
loaddtb=fatload mmc 0 ${devicetree_load_address} ${devicetree_image}
bootkernel=run loadkernel && run loaddtb && bootm ${kernel_load_address} - ${devicetree_load_address}
bootargs=earlyprintk console=ttyPS0,115200 root=/dev/mmcblk0p2 rootfstype=ext4 rw rootwait

Insert the micro SD card to your development environment and make boot/root partition for micro SD card:

$ sudo fdisk /dev/sdb

Welcome to fdisk (util-linux 2.34).
Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.


Command (m for help): d
Partition number (1,2, default 2): 1

Partition 1 has been deleted.

Command (m for help): d
Selected partition 2
Partition 2 has been deleted.

Command (m for help): n
Partition type
   p   primary (0 primary, 0 extended, 4 free)
   e   extended (container for logical partitions)
Select (default p): p
Partition number (1-4, default 1): 1
First sector (2048-62521343, default 2048):
Last sector, +/-sectors or +/-size{K,M,G,T,P} (2048-62521343, default 62521343): +512M

Created a new partition 1 of type 'Linux' and of size 512 MiB.

Command (m for help): n
Partition type
   p   primary (1 primary, 0 extended, 3 free)
   e   extended (container for logical partitions)
Select (default p): p
Partition number (2-4, default 2): 2
First sector (1050624-62521343, default 1050624):
Last sector, +/-sectors or +/-size{K,M,G,T,P} (1050624-62521343, default 62521343):

Created a new partition 2 of type 'Linux' and of size 29.3 GiB.

Command (m for help): t
Partition number (1,2, default 2): 1
Hex code (type L to list all codes): c

Changed type of partition 'Linux' to 'W95 FAT32 (LBA)'.

Command (m for help): a
Partition number (1,2, default 2): 1

The bootable flag on partition 1 is enabled now.

Command (m for help): p
Disk /dev/sdb: 29.83 GiB, 32010928128 bytes, 62521344 sectors
Disk model:  Storage Device
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0x9aadbd74

Device     Boot   Start      End  Sectors  Size Id Type
/dev/sdb1  *       2048  1050623  1048576  512M  c W95 FAT32 (LBA)
/dev/sdb2       1050624 62521343 61470720 29.3G 83 Linux

Command (m for help): w
The partition table has been altered.
Syncing disks.

sgdh@ubuntu:~$ sudo mkfs.vfat -n boot /dev/sdb1
mkfs.fat 4.1 (2017-01-24)
mkfs.fat: warning - lowercase labels might not work properly with DOS or Windows
mkfs.vfat: /dev/sdb1 contains a mounted filesystem.
sgdh@ubuntu:~$ sudo mkfs.ext4 -L root /dev/sdb2
mke2fs 1.45.5 (07-Jan-2020)
Creating filesystem with 7683840 4k blocks and 1921360 inodes
Filesystem UUID: 07fb9490-cc27-4649-8a68-d0df05bb2a09
Superblock backups stored on blocks:
	32768, 98304, 163840, 229376, 294912, 819200, 884736, 1605632, 2654208,
	4096000

Allocating group tables: done
Writing inode tables: done
Creating journal (32768 blocks):
done
Writing superblocks and filesystem accounting information: done

There is a way to create a portable image using a loop device without building it manually, but this post will not cover that method.

IMAGE_PATH=<path-to-build-files>
cd $IMAGE_PATH

MEDIA_BOOT_PATH=/media/kim/boot

cp BOOT.BIN $MEDIA_BOOT_PATH
cp boot.scr $MEDIA_BOOT_PATH
cp image.ub $MEDIA_BOOT_PATH

cp system.dtb /media/kim/boot/
cp uImage /media/kim/boot/
cp uEnv.txt /media/kim/boot/

MEDIA_ROOT_PATH=/media/kim/root
sudo tar -zxvf rootfs.tar.gz -C $MEDIA_ROOT_PATH
sync

# $ tar zxvf rootfs.tar.gz <path_to_ext4> # unzip /usr, /bin, /lib ...

# $ sudo umount /dev/sdX1
# $ sudo umount /dev/sdX2

Now, let's properly insert the SD card into the board and check the jumper settings.

https://digilent.com/reference/programmable-logic/zybo-z7/reference-manual

To boot the board, set up your preferred serial console to listen on the serial port using the default baud rate of 115200. You should be able to see the board's boot sequence from U-Boot (SSBL) to the Linux login prompt.

Configure the JP6 jumper block to use mini USB for power.

Set the JP5 jumper block to boot from MicroSD.

Notes: The default login credentials are root:root.

4. Webcam service on petalinux

For this project, I will use yavta and ffmpeg programs included in Petalinux as a prototype for the PoC.

#!/bin/bash
width=1920
height=1080
/usr/bin/yavta -c1 -f YUYV -s "$width"x"$height" -F /dev/video0
DIRECTORY="."
LATEST_FILE=$(ls -t "$DIRECTORY"/*.bin 2>/dev/null | head -n 1)

mv $LATEST_FILE "${LATESTFILE%.bin}.yuv"
/usr/bin/ffmpeg -s "$width"x"$height" -pix_fmt yuyv422 -i "${LATESTFILE%.bin}.yuv" -y "${LATEST_FILE%.bin}.png"
#!/bin/bash
width=1920
height=1080
rate=15
media-ctl -d /dev/media0 -V '"ov5640 2-003c":0 [fmt:UYVY/'"$width"x"$height"'@1/'"$rate"' field:none]'
media-ctl -d /dev/media0 -V '"43c60000.mipi_csi2_rx_subsystem":1 [fmt:UYVY/'"$width"x"$height"' field:none]'
v4l2-ctl -d /dev/video0 --set-fmt-video=width="$width",height="$height",pixelformat='YUYV'

I created this using the example. Mongoose is a lightweight and easy-to-use backend framework.

https://github.com/cesanta/mongoose/tree/master/tutorials/webui/webui-rest

I have added the following REST API service.

...
else if (mg_match(hm->uri, mg_str("/api/sum"), NULL)) {
  // Attempt to fetch a JSON array from the body, hm->body
  struct mg_str json = hm->body;
  double num1, num2;
  if (mg_json_get_num(json, "$[0]", &num1) &&
    mg_json_get_num(json, "$[1]", &num2)) {
  // Success! create a JSON response
  mg_http_reply(c, 200, "Content-Type: application/json\r\n", "{%m:%g}\n",
  MG_ESC("result"), num1 + num2);
}
...

I also added a button to capture images with the camera.

...
<button id="btn3">Shutter button</button>
  <div id="image-container">
  <img width=640 height=480 id="dynamic-image" alt="Dynamic Image" src="">
</div>
...

When the shutter button is pressed, a request will be sent via the REST API, and the PNG image will be retrieved.

Here is the client-side JavaScript handling code I added to render the PNG file.

...
const getpng = ev => fetch('/api/png')
.then(r => r.blob())
.catch(err => console.log(err));
btn3.onclick = ev => getpng(ev)
.then(imageBlob => {
  const imageURL = URL.createObjectURL(imageBlob);
  const imgElement = document.getElementById('dynamic-image');
  imgElement.src = imageURL;
  if (imgElement.dataset.previousUrl) {
    URL.revokeObjectURL(imgElement.dataset.previousUrl);
  }
  imgElement.dataset.previousUrl = imageURL;
    log('/api/png');
  })
.catch(err => console.log(err));
...

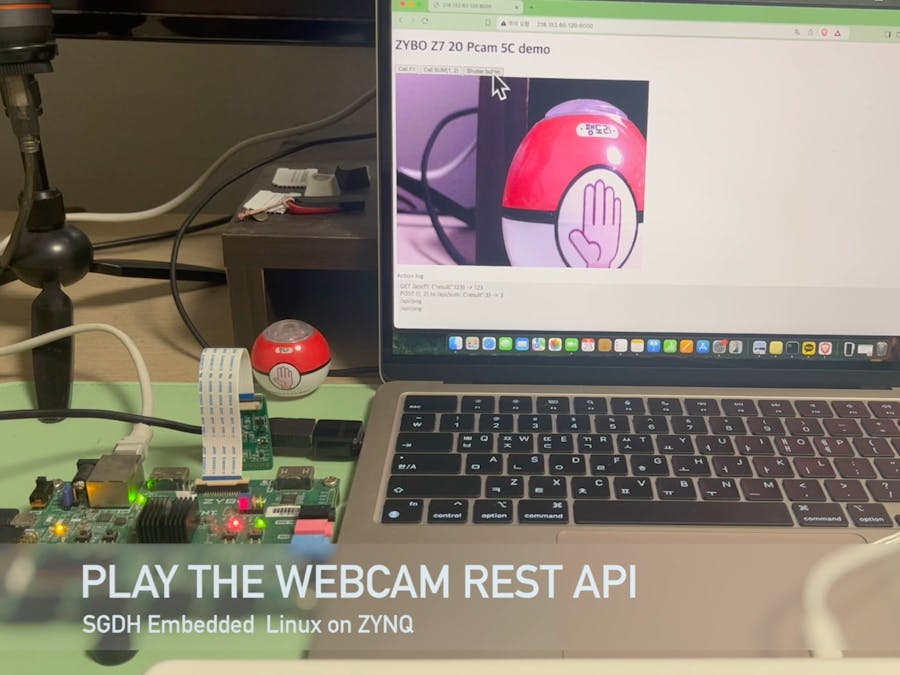

Finally, It's been a long journey to get here, but we've made it! You can check out the demo video for Embedded Linux on ZYNQ and ZYBO Z7 20 FPGA board Webcam on Petalinux.
