As a budding IoT developer I always been focusing of the innovative and reverse engineering ideas so here with basic objectives of built a unnoticeable security system for both domestic and commercial uses, more reliability at less cost is done through this project let's we discuss about the components used in it

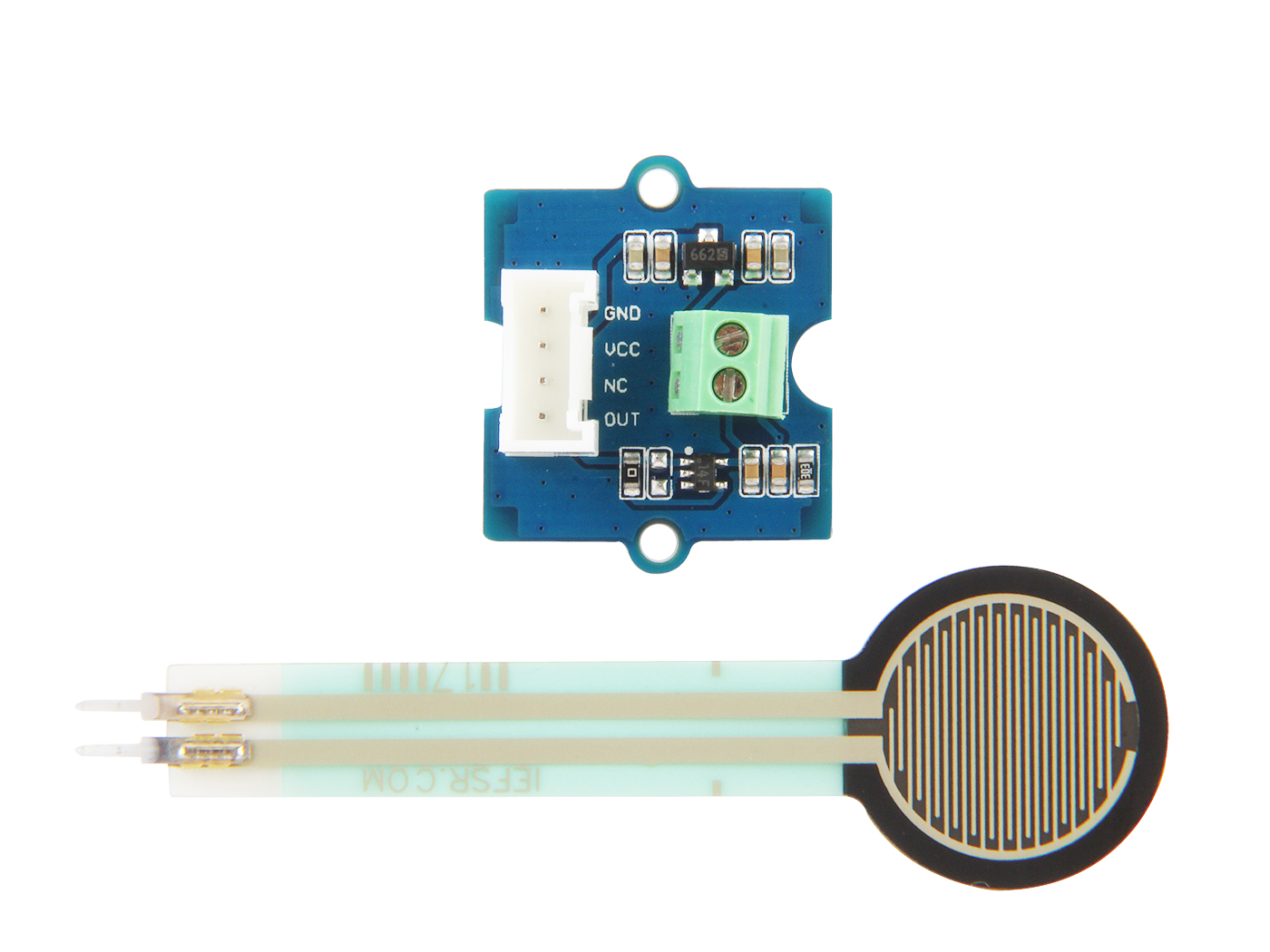

- Force sensor a transducer that converts the force signal into electric signal which get deviate according to the force applied on it
- Bolt IoT WIFI module an ESP module which can get connect to cloud through cloud by that it can collect, analyze and use the data that get collected by the sensors
Mainly the project is created for the shop owner which used to identify the intruder when someone get enters into the shops without any acknowledgement traditionally CCTV is just used to find the intruder not to alert the owner so here it used to alert the owner also it get modifies and make available for use in home security system it basically designed as a normal mat where there is no any indication of alarm system

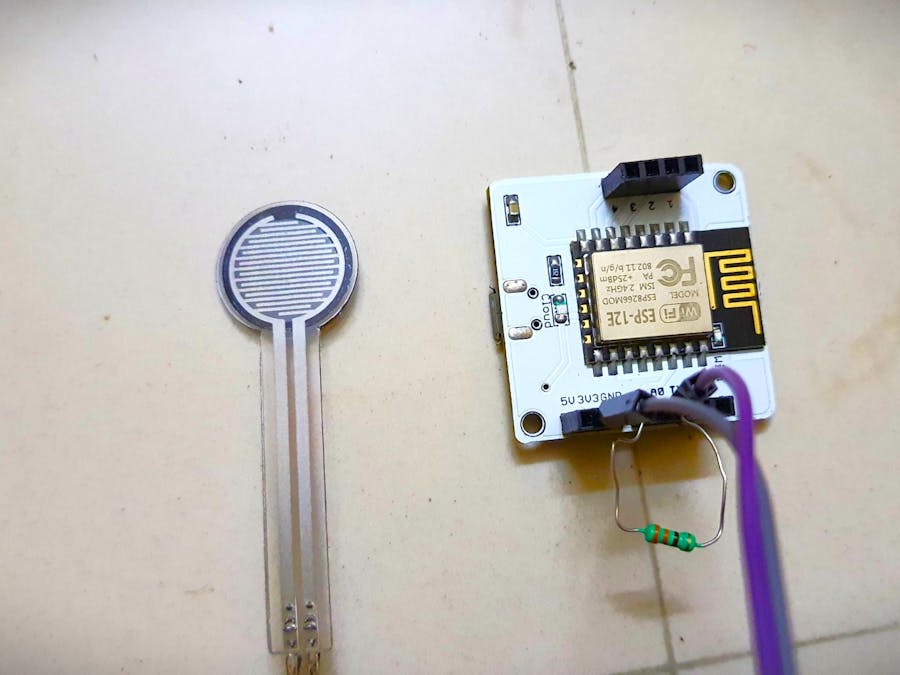

generally BOLT has one analog pin in which the sensor get connected as per displayed in the above picture and the code to execute the program is fetch into the cloud server for that here I use Digital Ocean cloud service where the program for it fetches through PUTTY software
once the sensor reading get changes due to force applied on it the cloud works with the code and send a message to the owner through telegram bot
here the above picture is the output for running and reading status of the sensor and module when someone get intrude by their foot on the force sensor then the sensor value get exceeds the threshold value by that the bot get activate and send an alert message through telegram the output of the intruder alert is shown below
I make sure that it will be a revolutionary alert system of course the concept of mat alarm is already there but it generally uses either aluminum or a mechanical button that get places under the mat both where typically a mechanical parts it's reliability is not much greater than the electronic one so I strongly believe that force sensor will be the alternative one also the most reliable, effective and efficient one
