RobotGeek PIR Motion Sensor Night Light

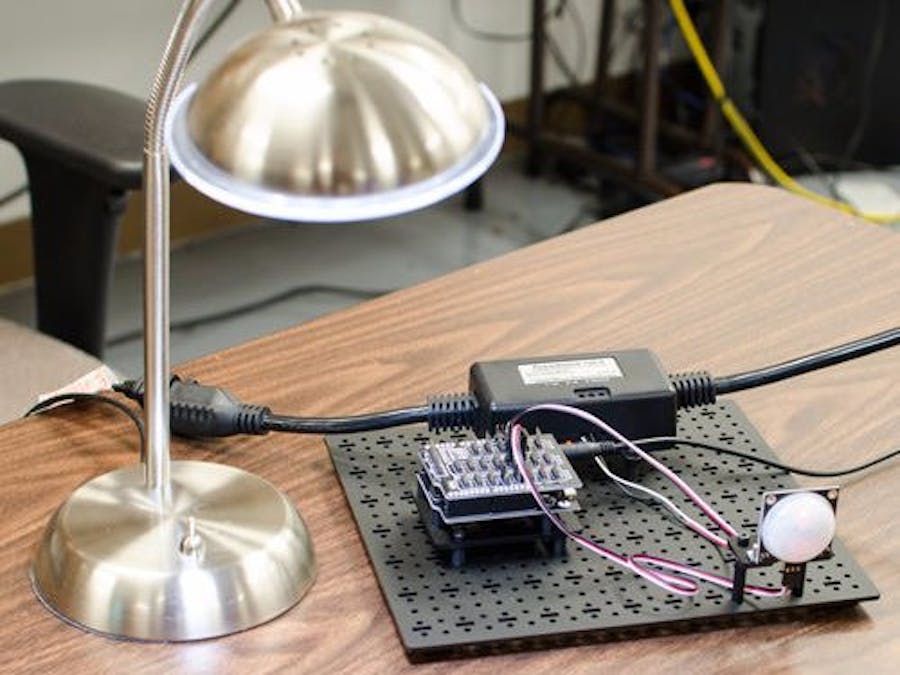

This project demonstrates how to make a nightlight by using an Arduino, a PIR motion sensor, and PowerSwitch Tail to turn on a 120V light.

BeginnerFull instructions provided30 minutes5,538
RobotGeek PIR Motion Sensor Night Light

Things used in this project

Hardware components

RobotGeek Geekduino
RobotGeek Geekduino
×1
Arduino UNO
Arduino UNO
OPTION: Can be used in place of the Geekduino
×1
RobotGeek Sensor Shield
RobotGeek Sensor Shield
×1
RobotGeek Large Workbench
×1
RobotGeek Duino Mount
×1
RobotGeek 300mm 3-Pin Sensor Cable 10 Pack
×1
RobotGeek Power Supply 6V/2A
×1
PowerSwitch Tail II
×1
Wide Angle PIR Sensor
×1
A Lamp
×1

Software apps and online services

Arduino IDE
Arduino IDE

Hand tools and fabrication machines

M3 Bolt Driver

Story

Read more

Schematics

Motion Sensor Night Light Wiring with RobotGeek Sensor Shield

Motion Sensor Night Light Wiring with RobotGeek Sensor Shield

Motion Sensor Night Light Wiring no Shield

Motion Sensor Night Light Wiring no Shield

Code

Github file

https://github.com/robotgeek/nightLightDemo/archive/master.zip
