youyeetoo Tech has released a new product - the youyeetoo X1 (X86 Development Board)
Breaking news!youyeetoo Tech has launched a new product - the Youyeetoo X1.

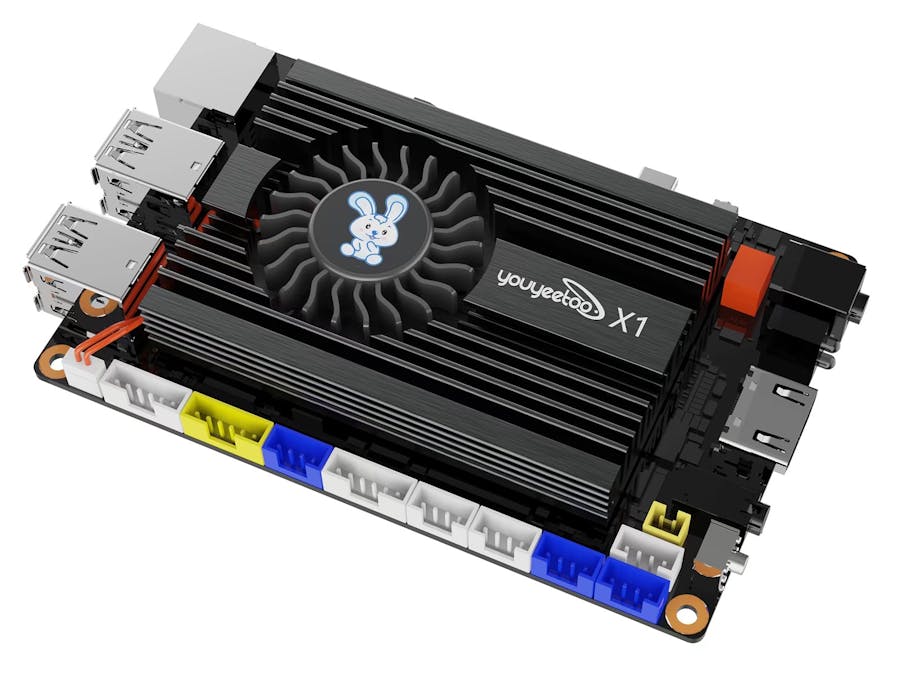

youyeetoo X1 is an x86 single-board computer (SBC) introduced by youyeetoo Tech from Shenzhen. It can run full-featured versions of Windows and Linux and is characterized by its low cost and high performance, featuring an 11th-gen Intel CPU N5105. It is primarily designed for the AIoT (Artificial Intelligence of Things) and automatic control markets. Despite its compact size (115 * 75mm), it boasts a rich set of interfaces, including 3 UART serial ports, 2 HDMI ports, 6 USB ports, 1 I2C, 1 SPI, 5 GPIOs, and is even compatible with a 7-inch MIPI touchscreen.
It's an honor to be one of the first to receive this pocket-sized X86 development board. Next, let's explore what youyeetoo X1 has in store for us.
Packaging:The packaging of the youyeetoo X1 is quite exquisite, providing protection to the internal components during transportation. The packaging box prominently displays the product model and manufacturer information.
The main parts of the development board:- Exterior Design: This development board features a compact and elegant exterior design. Its moderate size makes it convenient for carrying and installing in various projects.
- Connection Interfaces: The development board has a well-organized layout of connection interfaces for easy access. It includes multiple USB ports, HDMI output, Ethernet interface, and expansion slots, supporting the connection of various external devices and the addition of expansion modules.
- Cooling Design: To maintain high performance and stability, this development board incorporates an efficient cooling design. This may include aluminum heat sinks or fans to ensure it doesn't overheat during extended operation.
During the first boot, you will see the customized logo of youyeetoo Tech for the youyeetoo X1. The system comes pre-installed with Windows 10. The initial boot process is similar to what you would experience when turning on a regular PC.
- Abundant Interfaces: I2C, SPI, UART, GPIO, USB
- Rich Display Interfaces: HDMI 2.0, Micro HDMI, MIPI DSI
- Multiple Network Interfaces: Gigabit Ethernet, 5G Wi-Fi, Bluetooth 5.0, 4G LTE
- Diverse Storage Interfaces: SATA, SSD, TF card
- Comprehensive Audio Interfaces: Amplified Speaker (SPK), Microphone (MIC), 3.5mm Headphone Jack
The development board comes pre-installed with Windows 10 by default.
https://wiki.youyeetoo.com/en/x1
youyeetoo Tech offers a wide range of optional accessories (continuously expanding accessory types), and the peripherals of the youyeetoo X1 are consistent with the YY3568. S youyeetoo Tech is very considerate, which undoubtedly saves money for developers who have previously purchased the YY3568. If you haven't made a purchase, you can do so through the following link.
- 4G Network Module: https://i-item.jd.com/10068467248509.html
- 7-inch Touchscreen: https://i-item.jd.com/10069253972271.html
- 10.1-inch HDMI Touchscreen: https://i-item.jd.com/10041564226786.html
- M.2 Solid State Drive: https://i-item.jd.com/10069255507480.html
Rich development resources are provided, including firmware, drivers, source code, baseboard reference design schematic in PDF format, environment setup, and compilation instructions, and more.
Wiki:https://wiki.youyeetoo.com/x1/
Development Board Configuration Options:Youyeetoo products are available for purchase on their official website, Amazon, AliExpress, and Alibaba.
Purchase link: https://forum.youyeetoo.com/t/youyeetooo-x1-how-to-purchase/339
