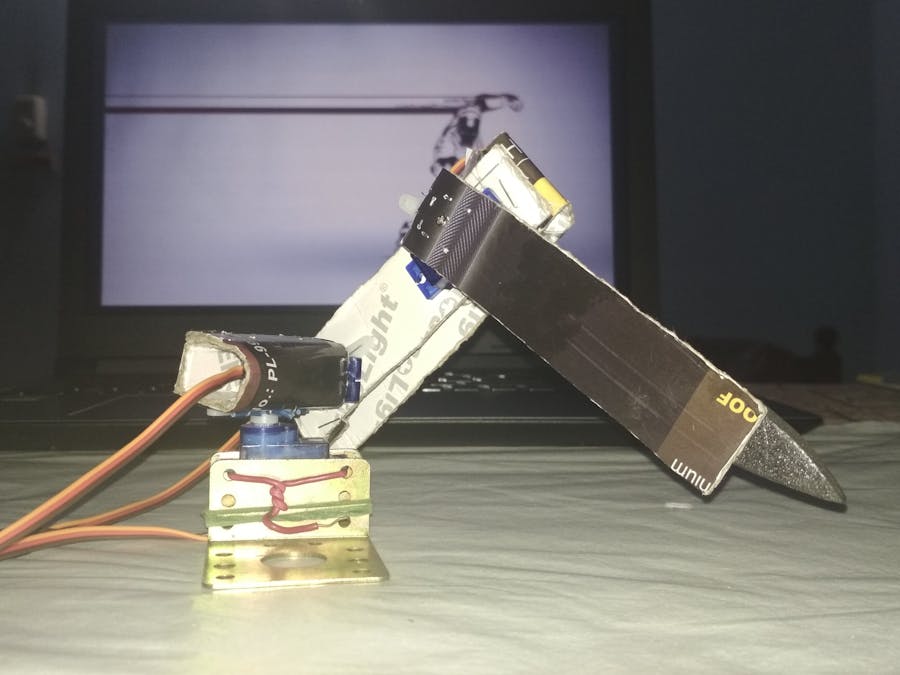

Cardboard Robotic Arm

This project is about a simple robotic arm which can be made using three servo motors. The arm is controlled by a computer.

BeginnerShowcase (no instructions)3 hours2,584

Things used in this project

Hardware components

Arduino Nano R3

Servo Motor

Software apps and online services

Arduino IDE

Story

I was planning to build an easy-to-do robotic arm. So with simple materials, like cardboard and iron plates, I made the structure. This arm has a reach of 180 degrees in front of it.

We can control this arm by the means of the computer. I have used only simple logic, like using if-else with the ladder to control this arm using serial communication.

arm on operation

The algorithm used is nothing but if we press a particular key, then the angle of servo (say x) will be incremented (x++). This type of arm can be used where accuracy is required.

Code

Code for the Controlling the arm

#include <Servo.h>
int x = 0,y=0,z=0;

Servo s1,s2,s3;  // create servo object to control a servo



void setup()
           {
              Serial.begin(9600);
              s1.attach(5);
              s2.attach(4);
              s3.attach(2);
           }



void loop() {



int val = Serial.parseInt(); //read int or parseFloat for ..float...

Serial.println(val);

  if(val==1)
              {
                x=x+5;
                  s1.write(90+x);
                   delay(150);
                   s2.write(90+y);
                   delay(150);
                   s3.write(90+z);
                   delay(150);
              }

   else if(val==2)
   {
                x=x-5;
                  s1.write(90+x);
                   delay(150);
                   s2.write(90+y);
                   delay(150);
                   s3.write(90+z);
                   delay(150);
              }


  else if(val==3)
             {
                y=y+5;
                  s1.write(90+x);
                   delay(150);
                   s2.write(90+y);
                   delay(150);
                   s3.write(90+z);
                   delay(150);
              }
  else if(val==4)
             {
                y=y-5;
                  s1.write(90+x);
                   delay(150);
                   s2.write(90+y);
                   delay(150);
                   s3.write(90+z);
                   delay(150);
              }
else if(val==5)
   {
                z=z+5;
                  s1.write(90+x);
                   delay(150);
                   s2.write(90+y);
                   delay(150);
                   s3.write(90+z);
                   delay(150);
              }

  else if(val==6)
   {
                z=z-5;
                  s1.write(90+x);
                   delay(150);
                   s2.write(90+y);
                   delay(150);
                   s3.write(90+z);
                   delay(150);
              }
}
