Arduino fire fighting robot

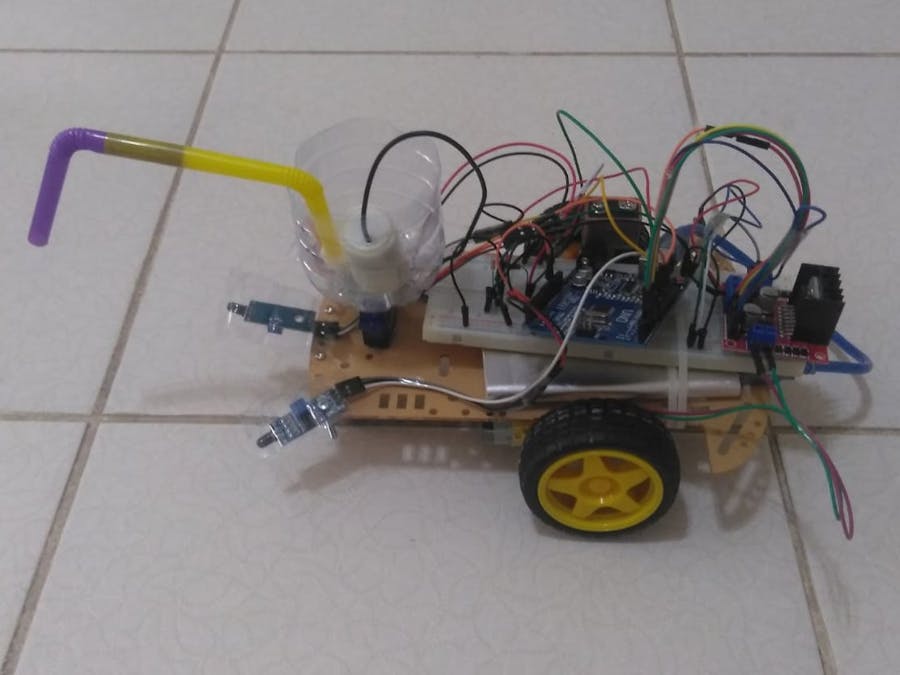

The robot designed in this project moves towards the direction of the fire. When it comes to the place where the fire is, it pours the water

IntermediateProtip65
Arduino fire fighting robot

Things used in this project

Hardware components

Arduino UNO
Arduino UNO
×1
Arduino water pump
×1
Arduino flame sensor
×3
SG90 Micro-servo motor
SG90 Micro-servo motor
×1
General Purpose Transistor NPN
General Purpose Transistor NPN
×1
1N4007 – High Voltage, High Current Rated Diode
1N4007 – High Voltage, High Current Rated Diode
×1
Dual H-Bridge motor drivers L298
SparkFun Dual H-Bridge motor drivers L298
×1

Software apps and online services

Arduino IDE
Arduino IDE

Hand tools and fabrication machines

10 Pc. Jumper Wire Kit, 5 cm Long
10 Pc. Jumper Wire Kit, 5 cm Long
Breadboard, 400 Pin
Breadboard, 400 Pin
Arduino battery 9V

Story

Read more

Custom parts and enclosures

circuit diagram

Schematics

water pump circuit

The current that Arduino gives from its digital pins is not enough to run this motor. Therefore, a switching circuit with transistors has been established.

circuit diagram

Code

Arduino Code

C/C++
// ates == 1 ise ates yok
// ates == 0 ise ates var

#include <Servo.h>
Servo myServo;

#define sol_s 9
#define sag_s 7
#define orta_s 8
#define pomp 10
#define in1 5
#define in2 4
#define in3 3
#define in4 2
#define enA 11
#define enB 6


int ates_sag;
int ates_sol;
int ates_orta;
boolean ates=false;
int pos = 0;

void setup (){

  Serial.begin(9600);

  pinMode(sol_s, INPUT);
  pinMode(sag_s, INPUT);
  pinMode(orta_s, INPUT);

  pinMode(pomp, OUTPUT);

  pinMode(in1,OUTPUT);
  pinMode(in2,OUTPUT);
  pinMode(in3,OUTPUT);
  pinMode(in4,OUTPUT);
  pinMode(enA,OUTPUT);
  pinMode(enB,OUTPUT);


  myServo.attach(12);
  myServo.write(90);
}
void loop(){

  myServo.write(90);
  ates_sag=digitalRead(sag_s);
  ates_orta=digitalRead(orta_s);
  ates_sol=digitalRead(sol_s);

  if(!ates_sag){
    motor_sag();

  }

  if(!ates_sol){
    motor_sol();
  }

  if(!ates_orta){
     motor_orta();
     ates=true;
  }
  if(ates_sag == 1 && ates_orta==1 &&ates_sol==1){
    motor_dur();
  }
  delay(300);
  while(ates){
    ates_sondur();
  }
}
void motor_sag(){
  Serial.println("Motor sag");
  // sag motor
  digitalWrite(in1,HIGH);
  digitalWrite(in2,LOW);
  analogWrite(enA,0);
  // sol motor
  digitalWrite(in3,HIGH);
  digitalWrite(in4,LOW);
  analogWrite(enB,150);
}
void motor_sol(){
  Serial.println("Motor sol");
  // sag motor
  digitalWrite(in1,LOW);
  digitalWrite(in2,HIGH);
  analogWrite(enA,150);
  // sol motor
  digitalWrite(in3,HIGH);
  digitalWrite(in4,LOW);
  analogWrite(enB,0);
}
void motor_orta(){
  Serial.println("Motor duz");
  // sag motor
  digitalWrite(in1,LOW);
  digitalWrite(in2,HIGH);
  analogWrite(enA,150);
  // sol motor
  digitalWrite(in3,HIGH);
  digitalWrite(in4,LOW);
  analogWrite(enB,150);

}
void motor_dur(){
  Serial.println("Motor dur");
  // sag motor
  digitalWrite(in1,LOW);
  digitalWrite(in2,LOW);
  analogWrite(enA,0);
  // sol motor
  digitalWrite(in3,LOW);
  digitalWrite(in4,LOW);
  analogWrite(enB,0);

}
void ates_sondur(){
  Serial.println("Ates sondur");
  motor_dur();
  delay(500);
  digitalWrite(pomp,HIGH);
  delay(500);
  for(pos = 50;pos<=130;pos+=1){
    myServo.write(pos);
    delay(10);
  }
  for(pos = 130;pos>=50;pos-=1){
    myServo.write(pos);
    delay(10);
  }
  digitalWrite(pomp,LOW);
  myServo.write(90);
  ates=false;
}
