IoT-Based Socket Board

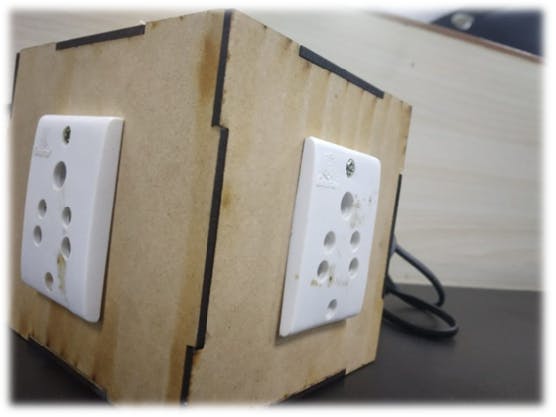

A portable socket board is designed that can be controlled through internet. It provides portable automation solution of devices with ease.

IntermediateFull instructions provided2 days841

Things used in this project

Hardware components

Texas Instruments MSP-EXP432P401R SimpleLink MSP432 LaunchPad

Texas Instruments CC3100BOOST SimpleLink CC3100 Wi-Fi BoosterPack

Relay (generic)

Software apps and online services

Texas Instruments Energia

Story

About the project:

Automation industry has witnessed tremendous growth in the last 10 years and achieving portable gadgets for providing automation of devices are the need of the hour. This is because in many cases users will not like to invest money for changing the house wiring for achieving automation rather they would like to invest on a portable gadget that they can take anywhere in the home and the same gadget can provide automation of the device that is plugged into the socket. This is what has motivated us to take up this project and the job has become quite simple with the help of TI technology solutions for IOT applications.

Components used:

MSP432(P401R) from TI

CC3100 BOOSTER WIFI PACK

3 RELAY MODULE

CONNECTING WIRES

3-PINSOCKET (3 Pcs)

MDFboard

Working:

We are Controlling sockets using internet

We have developed a mobile application which sends commands to the Ubidots server which further routes the received command to the WiFi booster pack CC3100. WiFi booster pack in turn send the received command to MSP432 launchpad module. MSP432 module decodes the received data and compares it to check whether a valid code is received. The program that we have written turns all the sockets to ON state if '1' is received and turns them to OFF state if '0' is received.

Block Diagram:

Summary:

This is WiFi enabled Smart Power Strip that provides you 3 smart plugs capability combined in to one.

The main advantage is we can access our extension board from distance.

You can control it anytime and anywhere.

Working Video:

code for controlling socket

#ifndef __CC3200R1M1RGC__
// Do not include SPI for CC3200 LaunchPad
#include <SPI.h>
#endif
#include <WiFi.h>

//define the pins to be connected to ultrasonic sensorw
//define the pins to be connected to ultrasonic sensor

// your network name also called SSID
char ssid[] = "note 5pro";
// your network password
char password[] = "neha9625";

const int HTTPPORT = 80;
char USER_AGENT[] = "TI";
char  VERSION[] = "1.0";
char  server[] = "industrial.api.ubidots.com";
char TOKEN[] = "BBFF-qJwJyLiI8Pi4M7BBwif3shnl4Uz6Ip"; // Put here your TOKEN

char DEVICE_LABEL[] = "socket"; // Your Device label

/* Put here your variable's labels*/
char const VARIABLE_LABEL[] = "socket";
WiFiClient client;

void setup() {
  //Initialize serial and wait for port to open:
  Serial.begin(115200);

  // attempt to connect to Wifi network:
  Serial.print("Attempting to connect to Network named: ");
  // print the network name (SSID);
  Serial.println(ssid);
  // Connect to WPA/WPA2 network. Change this line if using open or WEP network:
  WiFi.begin(ssid, password);
  while ( WiFi.status() != WL_CONNECTED) {
    // print dots while we wait to connect
    Serial.print(".");
    delay(300);
    pinMode(25,  OUTPUT);

  pinMode(26,  OUTPUT);

  pinMode(26, OUTPUT);

  pinMode(27, OUTPUT);


  }

  Serial.println("\nYou're connected to the network");
  Serial.println("Waiting for an ip address");

  while (WiFi.localIP() == INADDR_NONE) {
    // print dots while we wait for an ip addresss
    Serial.print(".");
    delay(300);
  }


}


void loop() {
   if (client.connect(server, 80)) {
    client.print(F("GET /api/v1.6/devices/"));
    client.print(DEVICE_LABEL);
    client.print(F("/"));
    client.print(VARIABLE_LABEL);
    client.print(F("/lv"));
    client.print(F(" HTTP/1.1\r\n"));
    client.print(F("Host: "));
    client.print(server);
    client.print(F("\r\n"));
    client.print(F("User-Agent: "));
    client.print(USER_AGENT);
    client.print(F("/"));
    client.print(VERSION);
    client.print(F("\r\n"));
    client.print(F("X-Auth-Token: "));
    client.print(TOKEN);
    client.print(F("\r\n"));
    client.print(F("Content-Type: application/json\r\n\r\n"));
    client.println();

}
  String s="";
  bool a=false;
  char movement='5';
  while (client.available()) {
    char c = client.read();
    s=s+c;
    a=true;
  }

  Serial.println(s);
   movement = get_movement(s);
   Serial.println(movement);

  if(a==true){
      client.stop();
      a=false;
  }

  if(movement=='1'){
    digitalWrite(25,1);
    digitalWrite(26,1);
    digitalWrite(27,1);
  }

   if(movement=='0'){
    digitalWrite(25,0);
    digitalWrite(26,0);
    digitalWrite(27,0);
  }


 }


void printWifiStatus() {
  // print the SSID of the network you're attached to:
  Serial.print("SSID: ");
  Serial.println(WiFi.SSID());

  // print your WiFi shield's IP address:
  IPAddress ip = WiFi.localIP();
  Serial.print("IP Address: ");
  Serial.println(ip);

  // print the received signal strength:
  long rssi = WiFi.RSSI();
  Serial.print("signal strength (RSSI):");
  Serial.print(rssi);
  Serial.println(" dBm");
}


char get_movement(String a){
  int endi =0;
  int i;
  for(i=0;i<a.length();i++){

    if(a.charAt(i)=='\n'){
      endi++;
    }
    if(endi==10){
      break;
    }
  }
  return a.charAt(i+1);

}

IoT-Based Socket Board
