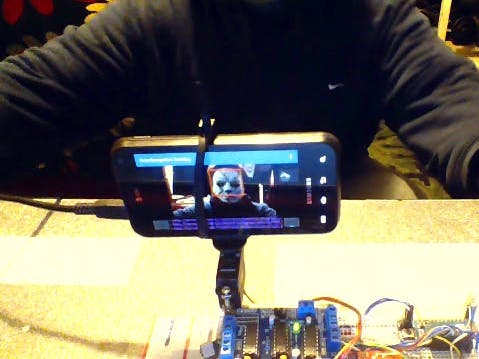

IoT WiFi | Bluetooth Face Tracking + Recognition

IoT WiFi face tracking and recognition for Arduino.

AdvancedProtip17,284
IoT WiFi | Bluetooth Face Tracking + Recognition

Things used in this project

Hardware components

Arduino UNO
Arduino UNO
×1
Arduino Micro
Arduino Micro
×1
SparkFun WiFi Breakout - CC3000
×1
Servos (Tower Pro MG996R)
×1
Android device
Android device
×1

Software apps and online services

IoT WiFi | Bluetooth Face Tracking + Recognition

Story

Read more

Schematics

basic schematic

Code

ATmega32u4_ServoFaceTrackingAndRecognition

C/C++
/*
*	Author		: Zavala Ortiz Vicente Arturo.
*	language	: .ino
*	Date		: Friday April 18 2014.
*	Update		: Friday June  06 2014.
*	Name		: ATmega32u4_ServoObjectTracking.ino
*	Description : Tracks circle coloresd objects
*/
#include <avr/delay.h>

/*		servo libs			*/
#include "_Servo.h"

/*		WiFi libs			*/
#include "CC3000.h"
#include "CC3000_Client.h"
#include "common.h"

Servo servo_x;
Servo servo_y;

void setup()
{
	/* add setup code here */
	ConnectionInfo connection_info;

	// Initialize CC3000 (configure SPI communications)
	#ifdef CC3000_DEBUG
		Serial.begin(115200);
	#endif

	// Initialize CC3000 (configure SPI communications)
	if(!wifi.init(9)) {
		#ifdef CC3000_DEBUG
		DEBUGPRINTLN(PSTR("Initialize CC3000 FAIL!"));
		#endif
		return;
	}

	else {
		//FreeRam();
		#ifdef CC3000_DEBUG
			DEBUGPRINTLN(PSTR("Initialize CC3000 OK"));
		#endif
	}

	if(!wifi.connect(ap_ssid, ap_security, ap_password, timeout))
	{
		#ifdef CC3000_DEBUG
			DEBUGPRINTLN(PSTR("Error: Could not connect to AP!"));
		#endif
	}


	// Gather connection details and print IP address
	if(!wifi.getConnectionInfo(connection_info) )
	{
		#ifdef CC3000_DEBUG
		DEBUGPRINTLN(PSTR("Error: Could not obtain connection details"));
		#endif
		return;
	}

	else
	{
		#ifdef CC3000_DEBUG
		DEBUGPRINT(PSTR("IP Address: "));
		printIPAddr(connection_info.ip_address);
		#endif
	}

	pin_mode(SERVO_PIN_X, OUTPUT);    // declare the LED's pin as output
	pin_mode(SERVO_PIN_Y, OUTPUT);    // declare the LED's pin as output

	servo_x.attach(SERVO_PIN_X);
	servo_y.attach(SERVO_PIN_Y);

	// center servos
	servo_x.write(SERVO_CENTER_X);
	servo_y.write(SERVO_CENTER_Y);

	_delay_ms(200);
}

void loop()
{

}
