Wio WM1110: Quick Start Guide for Seamless Integration

This concise guide provides everything you need to begin with the Wio WM1110, your gateway to seamless LoRaWAN development.

IntermediateFull instructions providedOver 1 day1,357
Wio WM1110: Quick Start Guide for Seamless Integration

Things used in this project

Hardware components

nRF52 Development Kit
Nordic Semiconductor nRF52 Development Kit
×1
SenseCAP M2 Multi-Platform LoRaWAN Indoor Gateway(SX1302) - EU868
Seeed Studio SenseCAP M2 Multi-Platform LoRaWAN Indoor Gateway(SX1302) - EU868
×1

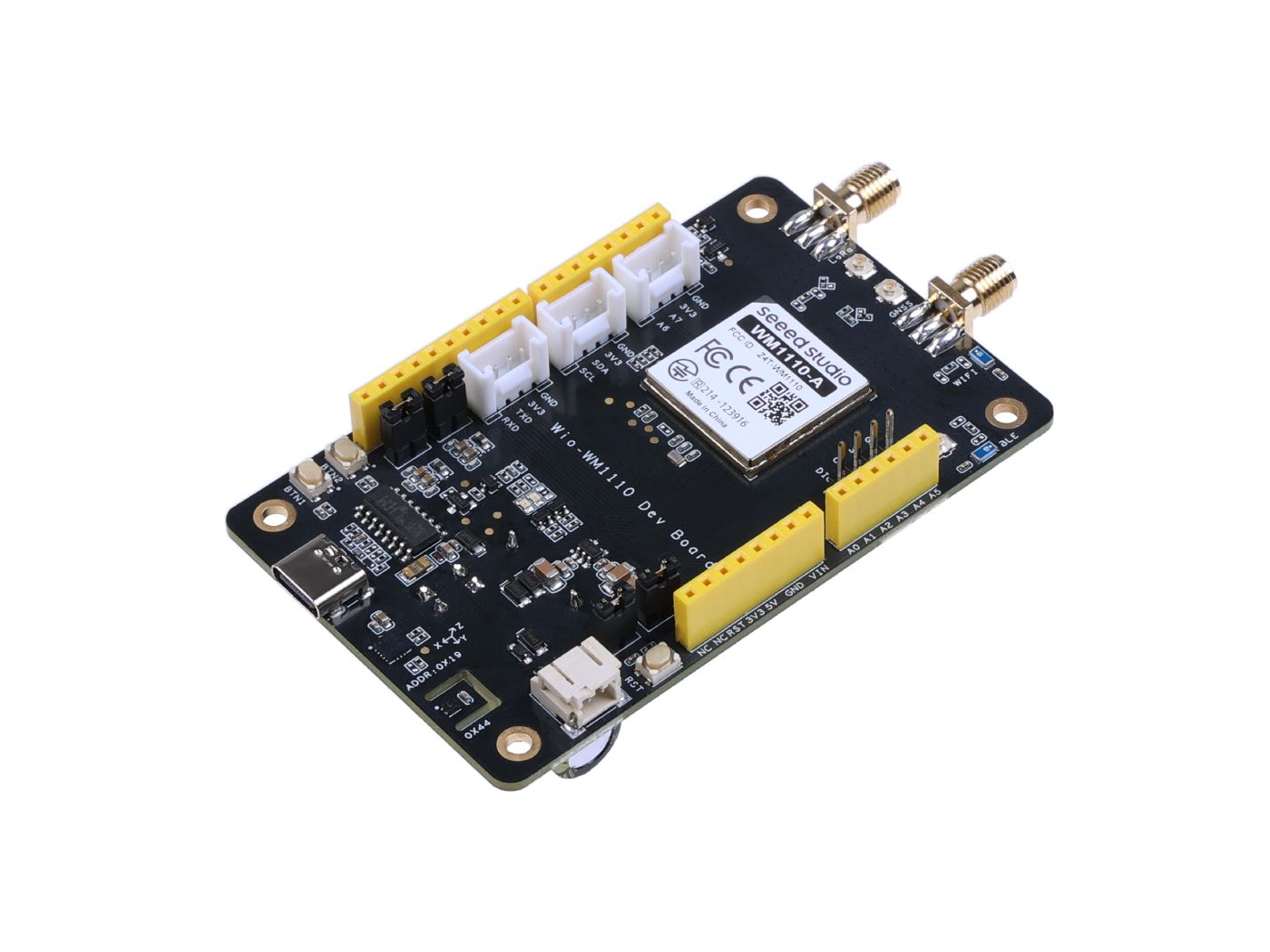

Wio-WM1110 Dev Kit
Seeed Studio Wio-WM1110 Dev Kit
×1

Software apps and online services

Segger Embedded Studio
The Things Stack
The Things Industries The Things Stack
ThingSpeak API
ThingSpeak API
AWS Polly
Amazon Web Services AWS Polly

Story

Read more

Schematics

Connection diagram

Code

Code

C/C++
Use SES For compiling along with the nRF SDK
#include "main_lorawan.h"
#include "lorawan_key_config.h"
#include "smtc_board.h"
#include "smtc_hal.h"
#include "apps_modem_common.h"
#include "apps_modem_event.h"
#include "smtc_modem_api.h"
#include "device_management_defs.h"
#include "smtc_board_ralf.h"
#include "apps_utilities.h"
#include "smtc_modem_utilities.h"

/*
 * -----------------------------------------------------------------------------
 * --- PRIVATE MACROS-----------------------------------------------------------
 */

float temp = 0, humi = 0;
/*!
 * @brief Stringify constants
 */
#define xstr( a ) str( a )
#define str( a ) #a

/*
 * -----------------------------------------------------------------------------
 * --- PRIVATE CONSTANTS -------------------------------------------------------
 */

/*
 * -----------------------------------------------------------------------------
 * --- PRIVATE TYPES -----------------------------------------------------------
 */

/*
 * -----------------------------------------------------------------------------
 * --- PRIVATE VARIABLES -------------------------------------------------------
 */

/*!
 * @brief Stack identifier
 */
static uint8_t stack_id = 0;

/*!
 * @brief User application data
 */
static uint8_t app_data_buffer[LORAWAN_APP_DATA_MAX_SIZE];

/*
 * -----------------------------------------------------------------------------
 * --- PRIVATE FUNCTIONS DECLARATION -------------------------------------------
 */

/*!
 * @brief   Send an application frame on LoRaWAN port defined by LORAWAN_APP_PORT
 *
 * @param [in] buffer     Buffer containing the LoRaWAN buffer
 * @param [in] length     Payload length
 * @param [in] confirmed  Send a confirmed or unconfirmed uplink [false : unconfirmed / true : confirmed]
 */
static void send_frame( const uint8_t* buffer, const uint8_t length, const bool confirmed );

/*!
 * @brief Parse the received downlink
 *
 * @remark Demonstrates how a TLV-encoded command sequence received by downlink can control the state of an LED. It can
 * easily be extended to handle other commands received on the same port or another port.
 *
 * @param [in] port LoRaWAN port
 * @param [in] payload Payload Buffer
 * @param [in] size Payload size
 */
static void parse_downlink_frame( uint8_t port, const uint8_t* payload, uint8_t size );

/*!
 * @brief Reset event callback
 *
 * @param [in] reset_count reset counter from the modem
 */
static void on_modem_reset( uint16_t reset_count );

/*!
 * @brief Network Joined event callback
 */
static void on_modem_network_joined( void );

/*!
 * @brief Alarm event callback
 */
static void on_modem_alarm( void );

/*!
 * @brief Tx done event callback
 *
 * @param [in] status tx done status @ref smtc_modem_event_txdone_status_t
 */
static void on_modem_tx_done( smtc_modem_event_txdone_status_t status );

/*!
 * @brief Downlink data event callback.
 *
 * @param [in] rssi       RSSI in signed value in dBm + 64
 * @param [in] snr        SNR signed value in 0.25 dB steps
 * @param [in] rx_window  RX window
 * @param [in] port       LoRaWAN port
 * @param [in] payload    Received buffer pointer
 * @param [in] size       Received buffer size
 */
static void on_modem_down_data( int8_t rssi, int8_t snr, smtc_modem_event_downdata_window_t rx_window, uint8_t port,
                                const uint8_t* payload, uint8_t size );

/*
 * -----------------------------------------------------------------------------
 * --- PUBLIC FUNCTIONS DEFINITION ---------------------------------------------
 */

/**
 * @brief Main application entry point.
 */
int main( void )
{
hal_debug_init( );
    hal_i2c_master_init( );
    hal_gpio_init_out( SENSOR_POWER, HAL_GPIO_SET );
    hal_mcu_wait_ms( 10 ); // wait power on
    SHT41Init( );
    static apps_modem_event_callback_t smtc_event_callback = {
        .adr_mobile_to_static  = NULL,
        .alarm                 = on_modem_alarm,
        .almanac_update        = NULL,
        .down_data             = on_modem_down_data,
        .join_fail             = NULL,
        .joined                = on_modem_network_joined,
        .link_status           = NULL,
        .mute                  = NULL,
        .new_link_adr          = NULL,
        .reset                 = on_modem_reset,
        .set_conf              = NULL,
        .stream_done           = NULL,
        .time_updated_alc_sync = NULL,
        .tx_done               = on_modem_tx_done,
        .upload_done           = NULL,
    };

    /* Initialise the ralf_t object corresponding to the board */
    ralf_t* modem_radio = smtc_board_initialise_and_get_ralf( );

    /* Disable IRQ to avoid unwanted behaviour during init */
    hal_mcu_disable_irq( );

    /* Init board and peripherals */
    hal_mcu_init( );
    smtc_board_init_periph( );

    /* Init the Lora Basics Modem event callbacks */
    apps_modem_event_init( &smtc_event_callback );

    /* Init the modem and use apps_modem_event_process as event callback, please note that the callback will be called
     * immediately after the first call to modem_run_engine because of the reset detection */
    smtc_modem_init( modem_radio, &apps_modem_event_process );

    /* Re-enable IRQ */
    hal_mcu_enable_irq( );

    HAL_DBG_TRACE_MSG( "\n" );
    HAL_DBG_TRACE_INFO( "###### ===== LoRa Basics Modem LoRaWAN Class A/C demo application ==== ######\n\n" );

    /* LoRa Basics Modem Version */
    apps_modem_common_display_lbm_version( );

    /* Configure the partial low power mode */
    hal_mcu_partial_sleep_enable( APP_PARTIAL_SLEEP );

    while( 1 )
    {
        /* Execute modem runtime, this function must be called again in sleep_time_ms milliseconds or sooner. */
        uint32_t sleep_time_ms = smtc_modem_run_engine( );

        SHT41GetTempAndHumi( &temp, &humi );
//HAL_DBG_TRACE_INFO( "temp = %.1f, humi = %.1f\r\n", temp, humi );

        hal_mcu_set_sleep_for_ms( sleep_time_ms );
    }
}

/*
 * -----------------------------------------------------------------------------
 * --- PRIVATE FUNCTIONS DEFINITION --------------------------------------------
 */

static void on_modem_reset( uint16_t reset_count )
{
    HAL_DBG_TRACE_INFO( "Application parameters:\n" );
    HAL_DBG_TRACE_INFO( "  - LoRaWAN uplink Fport = %d\n", LORAWAN_APP_PORT );
    HAL_DBG_TRACE_INFO( "  - DM report interval   = %d\n", APP_TX_DUTYCYCLE );
    HAL_DBG_TRACE_INFO( "  - Confirmed uplink     = %s\n", ( LORAWAN_CONFIRMED_MSG_ON == true ) ? "Yes" : "No" );

    apps_modem_common_configure_lorawan_params( stack_id );

    ASSERT_SMTC_MODEM_RC( smtc_modem_join_network( stack_id ) );
}

static void on_modem_network_joined( void )
{
    ASSERT_SMTC_MODEM_RC( smtc_modem_alarm_start_timer( APP_TX_DUTYCYCLE ) );

    ASSERT_SMTC_MODEM_RC( smtc_modem_adr_set_profile( stack_id, LORAWAN_DEFAULT_DATARATE, adr_custom_list ) );
}

static void on_modem_alarm( void )
{
    smtc_modem_status_mask_t modem_status;
    uint32_t                 charge        = 0;
    uint8_t                  app_data_size = 0;

    /* Schedule next packet transmission */
    ASSERT_SMTC_MODEM_RC( smtc_modem_alarm_start_timer( APP_TX_DUTYCYCLE ) );
    HAL_DBG_TRACE_PRINTF( "smtc_modem_alarm_start_timer: %d s\n\n", APP_TX_DUTYCYCLE );

    ASSERT_SMTC_MODEM_RC( smtc_modem_get_status( stack_id, &modem_status ) );
    modem_status_to_string( modem_status );

    app_data_buffer[app_data_size++] = temp;
    app_data_buffer[app_data_size++] = humi;


    send_frame( app_data_buffer, app_data_size, LORAWAN_CONFIRMED_MSG_ON );
}

static void on_modem_tx_done( smtc_modem_event_txdone_status_t status )
{
    static uint32_t uplink_count = 0;

    HAL_DBG_TRACE_INFO( "Uplink count: %d\n", ++uplink_count );
}

static void on_modem_down_data( int8_t rssi, int8_t snr, smtc_modem_event_downdata_window_t rx_window, uint8_t port,
                                const uint8_t* payload, uint8_t size )
{
    HAL_DBG_TRACE_INFO( "Downlink received:\n" );
    HAL_DBG_TRACE_INFO( "  - LoRaWAN Fport = %d\n", port );
    HAL_DBG_TRACE_INFO( "  - Payload size  = %d\n", size );
    HAL_DBG_TRACE_INFO( "  - RSSI          = %d dBm\n", rssi - 64 );
    HAL_DBG_TRACE_INFO( "  - SNR           = %d dB\n", snr >> 2 );

    switch( rx_window )
    {
    case SMTC_MODEM_EVENT_DOWNDATA_WINDOW_RX1:
    {
        HAL_DBG_TRACE_INFO( "  - Rx window     = %s\n", xstr( SMTC_MODEM_EVENT_DOWNDATA_WINDOW_RX1 ) );
        break;
    }
    case SMTC_MODEM_EVENT_DOWNDATA_WINDOW_RX2:
    {
        HAL_DBG_TRACE_INFO( "  - Rx window     = %s\n", xstr( SMTC_MODEM_EVENT_DOWNDATA_WINDOW_RX2 ) );
        break;
    }
    case SMTC_MODEM_EVENT_DOWNDATA_WINDOW_RXC:
    {
        HAL_DBG_TRACE_INFO( "  - Rx window     = %s\n", xstr( SMTC_MODEM_EVENT_DOWNDATA_WINDOW_RXC ) );
        break;
    }
    }

    if( size != 0 )
    {
        HAL_DBG_TRACE_ARRAY( "Payload", payload, size );
    }
}

static void send_frame( const uint8_t* buffer, const uint8_t length, bool tx_confirmed )
{
    uint8_t tx_max_payload;
    int32_t duty_cycle;

    /* Check if duty cycle is available */
    ASSERT_SMTC_MODEM_RC( smtc_modem_get_duty_cycle_status( &duty_cycle ) );
    if( duty_cycle < 0 )
    {
        HAL_DBG_TRACE_WARNING( "Duty-cycle limitation - next possible uplink in %d ms \n\n", duty_cycle );
        return;
    }

    ASSERT_SMTC_MODEM_RC( smtc_modem_get_next_tx_max_payload( stack_id, &tx_max_payload ) );
    if( length > tx_max_payload )
    {
        HAL_DBG_TRACE_WARNING( "Not enough space in buffer - send empty uplink to flush MAC commands \n" );
        ASSERT_SMTC_MODEM_RC( smtc_modem_request_empty_uplink( stack_id, true, LORAWAN_APP_PORT, tx_confirmed ) );
    }
    else
    {
        HAL_DBG_TRACE_INFO( "Request uplink\n" );
        ASSERT_SMTC_MODEM_RC( smtc_modem_request_uplink( stack_id, LORAWAN_APP_PORT, tx_confirmed, buffer, length ) );
    }
}

/* --- EOF ------------------------------------------------------------------ */
