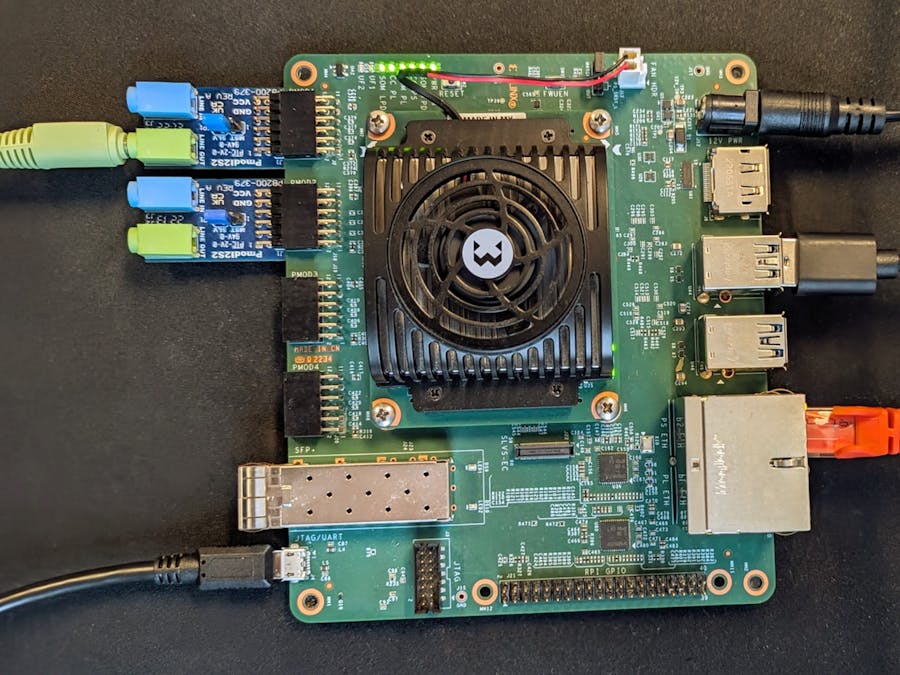

Using MCDMA from Linux on Kria KR260

#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <sys/mman.h>
#include <fcntl.h>
#include <sys/ioctl.h>
#include <pthread.h>
#include <time.h>
#include <sys/time.h>
#include <stdint.h>
#include <signal.h>
#include <sched.h>
#include <time.h>
#include <errno.h>
#include <string.h>
#include <dirent.h>
#include <sys/types.h>
#include <sys/param.h>

#include <string.h>
#include "dma-proxy.h"
#include <stdbool.h>

#define TX_CHANNEL_COUNT 2
#define RX_CHANNEL_COUNT 0
#define TX_BUFFER_COUNT 2
#define WAV_HEADER_SIZE         44              // WAV header size (standard 44 bytes)
#define AUDIO_SAMPLE_RATE       48000   // Play at 48KHz
#define AUDIO_BIT_DEPTH         16              // 16 bit audio
#define AUDIO_CHANNELS          2               // Stereo audio
#define BUFFER_SAMPLES          2048    // Buffer and transfer 1 second of audio each time
#define SINE_FREQUENCY          440     // frequency to play an A note

#define MAX_FILES 100 // Adjust as needed
#define MAX_PATH_LENGTH 1024 // Adjust as needed

const char *file_list_chan0[MAX_FILES];
const char *file_list_chan1[MAX_FILES];
int file_count_chan0;
int file_count_chan1;
int current_song_chan0;
int current_song_chan1;

#define BRAM_BASE_ADDR 0x90050000
#define BRAM_SIZE 0x2000 // Adjust as needed
typedef struct {
    int fd;
    uint32_t* bram;
} BRAMReader;

BRAMReader audiocontroller;

// Function to initialize BRAMReader
int initBRAMReader(BRAMReader* reader) {
    reader->fd = open("/dev/mem", O_RDWR | O_SYNC);
    if (reader->fd == -1) {
        perror("open");
        return -1;
    }

    reader->bram = (uint32_t*)mmap(NULL, BRAM_SIZE, PROT_READ | PROT_WRITE, MAP_SHARED, reader->fd, BRAM_BASE_ADDR);
    if (reader->bram == MAP_FAILED) {
        perror("mmap");
        close(reader->fd);
        return -1;
    }

    return 0;
}

// Function to clean up BRAMReader
void cleanupBRAMReader(BRAMReader* reader) {
    if (reader->bram != MAP_FAILED) {
        munmap(reader->bram, BRAM_SIZE);
    }
    if (reader->fd != -1) {
        close(reader->fd);
    }
}

// Function to read data from BRAM
int readBRAMData(BRAMReader* reader, size_t offset, uint32_t* data) {
    if (offset >= (BRAM_SIZE / sizeof(uint32_t))) {
        fprintf(stderr, "Offset out of bounds\n");
        return -1;
    }
    *data = reader->bram[offset];
    return 0;
}

// Function to write data to BRAM
int writeBRAMData(BRAMReader* reader, size_t offset, uint32_t data) {
    if (offset >= (BRAM_SIZE / sizeof(uint32_t))) {
        fprintf(stderr, "Offset out of bounds\n");
        return -1;
    }
    reader->bram[offset] = data;
    return 0;
}

const char *tx_channel_names[] = { "dma_proxy_tx_0","dma_proxy_tx_1", /* add unique channel names here */ };
const char *rx_channel_names[] = { "dma_proxy_rx", /* add unique channel names here */ };

/* Internal data which should work without tuning */

struct channel {
        struct channel_buffer *buf_ptr;
        int fd;
        pthread_t tid;
        const char* filename;
};

static int verify;
static int test_size;
static volatile int stop = 0;
int num_transfers;

struct channel tx_channels[TX_CHANNEL_COUNT], rx_channels[RX_CHANNEL_COUNT];

/**
 **
 ** Functions to Load a wav file
 **
 **/

/* WAV header structure (44 bytes total) */
struct WavHeader {
    char chunkID[4];       // "RIFF"
    uint32_t chunkSize;    // Overall size of the file - 8 bytes
    char format[4];        // "WAVE"
    char subchunk1ID[4];   // "fmt "
    uint32_t subchunk1Size; // Size of the fmt chunk (16 for PCM)
    uint16_t audioFormat;  // Audio format (1 for PCM)
    uint16_t numChannels;  // Number of channels (1 for mono, 2 for stereo)
    uint32_t sampleRate;   // Sampling rate (e.g., 44100 Hz)
    uint32_t byteRate;     // Byte rate = SampleRate * NumChannels * BitsPerSample / 8
    uint16_t blockAlign;   // Block align = NumChannels * BitsPerSample / 8
    uint16_t bitsPerSample; // Bits per sample (e.g., 16 bits)
    char subchunk2ID[4];   // "data"
    uint32_t subchunk2Size; // Size of the data chunk
};

/* Function to print WAV header information */
void print_wav_header(const struct WavHeader *header) {
    printf("Chunk ID: %.4s\n", header->chunkID);
    printf("Chunk Size: %u\n", header->chunkSize);
    printf("Format: %.4s\n", header->format);
    printf("Subchunk1 ID: %.4s\n", header->subchunk1ID);
    printf("Subchunk1 Size: %u\n", header->subchunk1Size);
    printf("Audio Format: %u\n", header->audioFormat);
    printf("Number of Channels: %u\n", header->numChannels);
    printf("Sample Rate: %u\n", header->sampleRate);
    printf("Byte Rate: %u\n", header->byteRate);
    printf("Block Align: %u\n", header->blockAlign);
    printf("Bits Per Sample: %u\n", header->bitsPerSample);
    printf("Subchunk2 ID: %.4s\n", header->subchunk2ID);
    printf("Subchunk2 Size: %u\n", header->subchunk2Size);
}
/* We need to know the total filesize if we are going to read chunks of the wav file */
int get_file_size(const char* filename, int *size) {
    FILE *file = fopen(filename, "rb");
    if (!file) {
        perror("Error opening file");
        return -1;
    }
    fseek(file, 0, SEEK_END);
    *size = ftell(file);
    fclose(file);
    return 0;
}

/* Read a chunk of the wav file into memory */
int get_wav_chunk(const char *filename, size_t start_byte, size_t chunk_size, bool *last, size_t *read_size, uint32_t *data_buf) {
    FILE *file = fopen(filename, "rb");
    if (!file) {
        perror("Error opening file");
        return -1;
    }

    // Move to the specified start byte
    fseek(file, start_byte, SEEK_SET);

    // Read data into buffer
    *read_size = fread(data_buf, 1, chunk_size, file);

    // Check if this is the last chunk
    *last = (*read_size < chunk_size);

    fclose(file);
    return 0;
}

/* Read the Header information of the wav-file */
int load_wav_header(const char *filename, struct WavHeader *header, size_t *data_size) {
    FILE *file = fopen(filename, "rb");
    if (!file) {
        perror("Error opening file");
        return -1;
    }

    // Read the WAV header
    if (fread(header, sizeof(struct WavHeader), 1, file) != 1) {
        perror("Error reading WAV header");
        fclose(file);
        return -1;
    }

    // Verify the "RIFF" and "WAVE" format
    if (strncmp(header->chunkID, "RIFF", 4) != 0 || strncmp(header->format, "WAVE", 4) != 0) {
        fprintf(stderr, "Invalid WAV file format.\n");
        fclose(file);
        return -1;
    }

    // Retrieve data size
    *data_size = header->subchunk2Size;

    fclose(file);
    return 0;
}

/*******************************************************************************************************************/
/* Handle a control C or kill, maybe the actual signal number coming in has to be more filtered?
 * The stop should cause a graceful shutdown of all the transfers so that the application can
 * be started again afterwards.
 */
void sigint(int a)
{
        stop = 1;
}

/*******************************************************************************************************************/
/* Get the clock time in usecs to allow performance testing
 */
static uint64_t get_posix_clock_time_usec ()
{
    struct timespec ts;

    if (clock_gettime (CLOCK_MONOTONIC, &ts) == 0)
        return (uint64_t) (ts.tv_sec * 1000000 + ts.tv_nsec / 1000);
    else
        return 0;
}
// Function to check if a specific bit is on
bool isBitOn(uint32_t data, int bit_position) {
    // Create a mask for the desired bit
    uint32_t mask = (1 << bit_position);

    // Check if the bit is on
    return (data & mask) != 0;
}
/*******************************************************************************************************************/
/*
 * The following function is the transmit thread to allow the transmit and the receive channels to be
 * operating simultaneously. Some of the ioctl calls are blocking so that multiple threads are required.
 */
void tx_thread(struct channel *channel_ptr)
{
        int i, counter = 0, buffer_id, in_progress_count = 0;
        int stop_in_progress = 0;
        size_t start_byte = 0;
        size_t chunk_size = BUFFER_SAMPLES;
    size_t read_size = 0;                      // The actual number of bytes read
    bool last = false;
        // Start all buffers being sent

        for (buffer_id = 0; buffer_id < TX_BUFFER_COUNT; !last && (buffer_id += BUFFER_INCREMENT)) {

                /* Set up the length for the DMA transfer and initialize the transmit
                 * buffer to a known pattern.
                 */
                channel_ptr->buf_ptr[buffer_id].length = chunk_size;

                printf("Start stream wav-file: %s", channel_ptr->filename);
                get_wav_chunk(channel_ptr->filename, start_byte, chunk_size, &last, &read_size, channel_ptr->buf_ptr[buffer_id].buffer);
                start_byte+=read_size;

                /* Start the DMA transfer and this call is non-blocking
                 *
                 */
                ioctl(channel_ptr->fd, START_XFER, &buffer_id);
        }

        /* Start finishing up the DMA transfers that were started beginning with the 1st channel buffer.
         */
        buffer_id = 0;

        while (!last && !stop) {
                //usleep(500);
                /* Perform the DMA transfer and check the status after it completes
                 * as the call blocks til the transfer is done.
                 */
                ioctl(channel_ptr->fd, FINISH_XFER, &buffer_id);
                if (channel_ptr->buf_ptr[buffer_id].status != PROXY_NO_ERROR)
                        printf("Proxy tx transfer error\n");

                // Read data from BRAM to control the audioplayer
            size_t offset = 0;
            uint32_t data;
            if (readBRAMData(&audiocontroller, offset, &data) == 0) {
                if (isBitOn(data, 0)){ // xxxx1 first bit, so sending 1 to BRAM_BASE_ADDRESS will trigger this
                        printf("Received command: next song on channel 0.\n");
                        current_song_chan0+=1;
                        current_song_chan0%=file_count_chan0;
                                tx_channels[0].filename = file_list_chan0[current_song_chan0];start_byte = 0;read_size = 0;
                                writeBRAMData(&audiocontroller, offset, data^0x0001);
                        }
                        if (isBitOn(data, 1)){ // xx1x second bit, value 2 will trigger this
                        printf("Received command: next song on channel 1.\n");
                        current_song_chan1+=1;
                        current_song_chan1%=file_count_chan1;
                                tx_channels[1].filename = file_list_chan1[current_song_chan1];start_byte = 0;read_size = 0;
                                writeBRAMData(&audiocontroller, offset, data^0x0002);
                        }
                        if (isBitOn(data, 2)){ // x1xx third bit, value 4 will trigger this stop command
                                printf("Received command stop.\n");
                                stop=1;
                                writeBRAMData(&audiocontroller, offset, data^0x0004);
                        }

            }

                /* Restart the completed channel buffer to start another transfer and keep
                 * track of the number of transfers in progress
                 */
                get_wav_chunk(channel_ptr->filename, start_byte, chunk_size, &last, &read_size, channel_ptr->buf_ptr[buffer_id].buffer);
                start_byte+=read_size;

                ioctl(channel_ptr->fd, START_XFER, &buffer_id);

end_tx_loop0:

                /* Flip to next buffer and wait for it treating them as a circular list
                 */
                buffer_id += BUFFER_INCREMENT;
                buffer_id %= TX_BUFFER_COUNT;
        }
}

/**
 ** NOT USED FOR NOW
*/
void rx_thread(struct channel *channel_ptr)
{
        int in_progress_count = 0, buffer_id = 0;
        int rx_counter = 0;

        // Start all buffers being received
        printf("Start all buffers\n");
        for (buffer_id = 0; buffer_id < RX_BUFFER_COUNT; buffer_id += BUFFER_INCREMENT) {

                /* Don't worry about initializing the receive buffers as the pattern used in the
                 * transmit buffers is unique across every transfer so it should catch errors.
                 */
                channel_ptr->buf_ptr[buffer_id].length = test_size;

                ioctl(channel_ptr->fd, START_XFER, &buffer_id);

                /* Handle the case of a specified number of transfers that is less than the number
                 * of buffers
                 */
                if (++in_progress_count >= num_transfers)
                        break;
        }

        buffer_id = 0;

        /* Finish each queued up receive buffer and keep starting the buffer over again
         * until all the transfers are done
         */
        while (1) {

                ioctl(channel_ptr->fd, FINISH_XFER, &buffer_id);

                if (channel_ptr->buf_ptr[buffer_id].status != PROXY_NO_ERROR) {
                        printf("Proxy rx transfer error, # transfers %d, # completed %d, # in progress %d\n",
                                                num_transfers, rx_counter, in_progress_count);
                        exit(1);
                }

                /* Verify the data received matches what was sent (tx is looped back to tx)
                 * A unique value in the buffers is used across all transfers
                 */
                if (verify) {
                        unsigned int *buffer = &channel_ptr->buf_ptr[buffer_id].buffer;
                        int i;
                        for (i = 0; i < 1; i++) // test_size / sizeof(unsigned int); i++) this is slow
                                if (buffer[i] != i + rx_counter) {
                                        printf("buffer not equal, index = %d, data = %d expected data = %d\n", i,
                                                buffer[i], i + rx_counter);
                                        break;
                                }
                }

                /* Keep track how many transfers are in progress so that only the specified number
                 * of transfers are attempted
                 */
                in_progress_count--;

                /* If all the transfers are done then exit */

                if (++rx_counter >= num_transfers)
                        break;

                /* If the ones in progress will complete the number of transfers then don't start more
                 * but finish the ones that are already started
                 */
                if ((rx_counter + in_progress_count) >= num_transfers)
                        goto end_rx_loop0;

                /* Start the next buffer again with another transfer keeping track of
                 * the number in progress but not finished
                 */
                ioctl(channel_ptr->fd, START_XFER, &buffer_id);

                in_progress_count++;

        end_rx_loop0:

                /* Flip to next buffer treating them as a circular list, and possibly skipping some
                 * to show the results when prefetching is not happening
                 */
                buffer_id += BUFFER_INCREMENT;
                buffer_id %= RX_BUFFER_COUNT;

        }
}

/*******************************************************************************************************************/
/*
 * Setup the transmit and receive threads so that the transmit thread is low priority to help prevent it from
 * overrunning the receive since most testing is done without any backpressure to the transmit channel.
 */
void setup_threads(int *num_transfers)
{
        pthread_attr_t tattr_tx;
        int newprio = 20, i;
        struct sched_param param;

        printf("Setup threads...\n");
        /* The transmit thread should be lower priority than the receive
         * Get the default attributes and scheduling param
         */
        pthread_attr_init (&tattr_tx);
        pthread_attr_getschedparam (&tattr_tx, &param);

        /* Set the transmit priority to the lowest
         */
        param.sched_priority = newprio;
        pthread_attr_setschedparam (&tattr_tx, &param);

// NOT USED FOR NOW
//      for (i = 0; i < RX_CHANNEL_COUNT; i++)
//              pthread_create(&rx_channels[i].tid, NULL, rx_thread, (void *)&rx_channels[i]);

        for (i = 0; i < TX_CHANNEL_COUNT; i++)
                pthread_create(&tx_channels[i].tid, &tattr_tx, tx_thread, (void *)&tx_channels[i]);
}

void list_wav_files(const char *dir_path, const char **file_list, int *file_count) {
    struct dirent *entry;
    DIR *dir = opendir(dir_path);

    if (!dir) {
        perror("opendir");
        exit(EXIT_FAILURE);
    }

    *file_count = 0;

    while ((entry = readdir(dir)) != NULL) {
        // Check if the file has a ".wav" extension
        const char *name = entry->d_name;
        const char *ext = strrchr(name, '.');
        if (ext && strcmp(ext, ".wav") == 0) {
            if (*file_count >= MAX_FILES) {
                fprintf(stderr, "Too many files. Increase MAX_FILES.\n");
                break;
            }

            // Allocate memory for the full path
            char *full_path = malloc(MAX_PATH_LENGTH);
            if (!full_path) {
                perror("malloc");
                exit(EXIT_FAILURE);
            }

            snprintf(full_path, MAX_PATH_LENGTH, "%s/%s", dir_path, name);
            file_list[*file_count] = full_path;
            (*file_count)++;
        }
    }

    closedir(dir);
}


/*******************************************************************************************************************/
/*
 * The main program starts the transmit thread and then does the receive processing to do a number of DMA transfers.
 */
int main(int argc, char *argv[])
{
        int i;
        uint64_t start_time, end_time, time_diff;
        int mb_sec;
        int buffer_id = 0;
        int max_channel_count = MAX(TX_CHANNEL_COUNT, RX_CHANNEL_COUNT);

        printf("DMA proxy test\n");

        signal(SIGINT, sigint);


        // Initialize the BRAM reader
    if (initBRAMReader(&audiocontroller) != 0) {
        fprintf(stderr, "Failed to initialize BRAMReader\n");
        return EXIT_FAILURE;
    }

        if (argc != 5) {
                printf("Usage: audioplayer <path to folder with wav files CHAN0> <path to folder with wav files CHAN1> <# to start from on CHAN0> <# to start from on CHAN1>\n");
                 exit(EXIT_FAILURE);
        }


        /* Get the wav files in the provided folders */
    list_wav_files(argv[1], file_list_chan0, &file_count_chan0);
    list_wav_files(argv[2], file_list_chan1, &file_count_chan1);
    current_song_chan0 = atoi(argv[3]);
    current_song_chan1 = atoi(argv[4]);


        /* Cleanup folder lists */
    for (int i = 0; i < file_count_chan0; i++) {
        printf("%s\n", file_list_chan0[i]);
        // free((void *)file_list_chan0[i]); // Free allocated memory
    }
    for (int i = 0; i < file_count_chan1; i++) {
        printf("%s\n", file_list_chan1[i]);
        // free((void *)file_list_chan1[i]); // Free allocated memory
    }
    printf("Folders given: %s %s \n",
                file_list_chan0[current_song_chan0], file_list_chan1[current_song_chan1]);
        printf("Arguments given: %d %d, total files in each folder : chan0 %d chan1 %d\n",
                current_song_chan0, current_song_chan1, file_count_chan0, file_count_chan1);


        /* Open the file descriptors for each tx channel and map the kernel driver memory into user space */
        printf("Open TX file descriptors\n");

        for (i = 0; i < TX_CHANNEL_COUNT; i++) {
                char channel_name[64] = "/dev/";
                strcat(channel_name, tx_channel_names[i]);
                tx_channels[i].fd = open(channel_name, O_RDWR);
                if (tx_channels[i].fd < 1) {
                        printf("Unable to open DMA proxy device file: %s\n", channel_name);
                        exit(EXIT_FAILURE);
                }
                printf("Opened channel %s, id: %d",channel_name, tx_channels[i].fd);
                tx_channels[i].buf_ptr = (struct channel_buffer *)mmap(NULL, sizeof(struct channel_buffer) * TX_BUFFER_COUNT,
                                                                                PROT_READ | PROT_WRITE, MAP_SHARED, tx_channels[i].fd, 0);
                if (tx_channels[i].buf_ptr == MAP_FAILED) {
                        printf("Failed to mmap tx channel\n");
                        exit(EXIT_FAILURE);
                }
        }

        tx_channels[0].filename = file_list_chan0[current_song_chan0];
        tx_channels[1].filename = file_list_chan1[current_song_chan1];

        /* Open the file descriptors for each rx channel and map the kernel driver memory into user space */
        printf("Open RX file descriptors\n");

        for (i = 0; i < RX_CHANNEL_COUNT; i++) {
                char channel_name[64] = "/dev/";
                strcat(channel_name, rx_channel_names[i]);
                rx_channels[i].fd = open(channel_name, O_RDWR);
                if (rx_channels[i].fd < 1) {
                        printf("Unable to open DMA proxy device file: %s\r", channel_name);
                        exit(EXIT_FAILURE);
                }
                rx_channels[i].buf_ptr = (struct channel_buffer *)mmap(NULL, sizeof(struct channel_buffer) * RX_BUFFER_COUNT,
                                                                                PROT_READ | PROT_WRITE, MAP_SHARED, rx_channels[i].fd, 0);
                if (rx_channels[i].buf_ptr == MAP_FAILED) {
                        printf("Failed to mmap rx channel\n");
                        exit(EXIT_FAILURE);
                }
        }

        /* Grab the start time to calculate performance then start the threads & transfers on all channels */

        start_time = get_posix_clock_time_usec();
        setup_threads(&num_transfers);

        /* Do the minimum to know the transfers are done before getting the time for performance */

//      for (i = 0; i < TX_CHANNEL_COUNT; i++)
//              pthread_join(tx_channels[i].tid, NULL);

        /* Grab the end time and calculate the performance */

        end_time = get_posix_clock_time_usec();
        time_diff = end_time - start_time;
        mb_sec = ((1000000 / (double)time_diff) * (num_transfers * max_channel_count * (double)test_size)) / 1000000;

        printf("Time: %ld microseconds\n", time_diff);
        printf("Transfer size: %lld KB\n", (long long)(num_transfers) * (test_size / 1024) * max_channel_count);
        printf("Throughput: %d MB / sec \n", mb_sec);

        /* Clean up all the channels before leaving */
        printf("Cleanup TX\n");
        for (i = 0; i < TX_CHANNEL_COUNT; i++) {
                pthread_join(tx_channels[i].tid, NULL);
                munmap(tx_channels[i].buf_ptr, sizeof(struct channel_buffer));
                close(tx_channels[i].fd);
        }
        printf("Cleanup RX\n");
        for (i = 0; i < RX_CHANNEL_COUNT; i++) {
                munmap(rx_channels[i].buf_ptr, sizeof(struct channel_buffer));
                close(rx_channels[i].fd);
        }
        /* Cleanup folder lists */
    for (int i = 0; i < file_count_chan0; i++) {
        printf("%s\n", file_list_chan0[i]);
        free((void *)file_list_chan0[i]); // Free allocated memory
    }
    for (int i = 0; i < file_count_chan1; i++) {
        printf("%s\n", file_list_chan1[i]);
        free((void *)file_list_chan1[i]); // Free allocated memory
    }
        printf("DMA proxy test complete\n");
        // Clean up resources
    cleanupBRAMReader(&audiocontroller);
        return 0;
}
