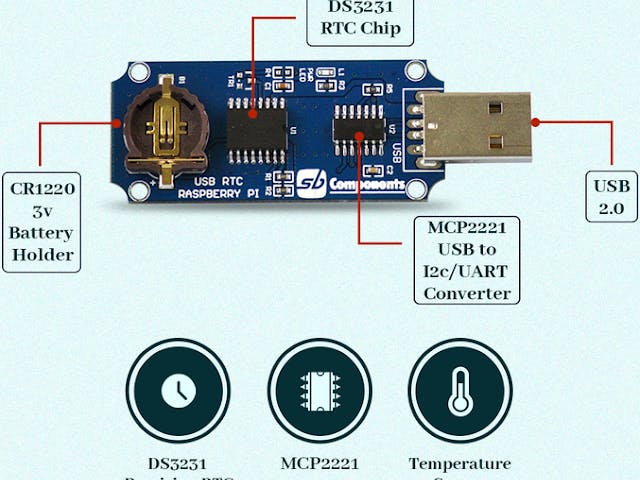

We are aware that the hustle of their developers and hardware pros they face in their endeavours that redirect them to create numerous terrific gadgets. An individual should join the RTC module together with jumper wires, soldering procedures, or simply by using an outside PCB, also combined side it, programming must conduct RTC which creates the method complex, time taking as well as feverish. We created a technologically advanced level RTC apparatus’s RTC to get Raspberry-Pi “with the powerful integrated circuit DS3231 runs on non-power-consumptions using Integrated Temperature Compensated Crystal Oscillator. USB RTC to get Raspberry-Pi included ofMCP2221, also a USB-to-UART/I2C sequential converter, that empowers USB connectivity, even in the procedures which include a USB, UART (Serial), GPIO, and I2C interfaces which may run out of 6--8 ft about the single battery.
USB Real Time Clock For Raspberry PiYou will find products such as Info Loggers, Digital clock, and Attendance platform, digicam, etc. who are very apparatus for everyday usage in the modern day world. High level technologies such as these want the time stamp which is why RTC is a decent choice. For beginners, RTC could be the abbreviation of "real time hitter " that can be an electric device which permits an individual to assess the passing of time. We created the merchandise USB Real Time Clock for Raspberry Pi, Windows, LINUX, Mac-OS, STM32, and so forth with the aid of our design partner "SB Components", USB RTC came into presence. This will increase the efficacy of their users having its powerful components and compact measurement.
USB Real Time Clock For Raspberry PiThe DS3231, a true I2C is your highly effective IC that runs on the USB RTC using excessively large efficiency at low price. Our team acquired USB RTC to execute a precise I2C real-time clock (RTC) using an integrated temperature-compensated crystal oscillator (TCXO) and crystal-clear. Even the USB RTC comprises a crystal resonator which tends to make an increment in the efficacy of this apparatus to get its very long run using the decline of piece-part count in a manufacturing line. We build USB RTC with advanced level chip DS3231 for the commercial in addition to industrial temperature ranges also it has a 16-pin, 300-mil S O package. Acutely accurate I2C Real time clock (RTC)· 16-pin, 300-mil S O bundle·
- Extremely accurate I2C real-time clock (RTC)
- Integrated temperature-compensated crystal oscillator (TCXO)
- Incorporates a battery input
- 16-pin, 300-mil SO package
- Automated Backup Power Supply
- Fast (400kHz) I2C Interface
USB Real Time Clock For Raspberry Pi can be really a highly effective device that an individual can merely plugin together with their platform to maintain the accurate timekeeping of this system. The USB-RTC maintains moments, minutes, hours, date, day, month, year, and fever information which aids the users to create higher level services and products and gadgets. We now developed the USB RTC to automatically correct the date by the conclusion at your end of those weeks less than 31 days. The DS3231, a true I2C is your highly effective IC that runs on the USB RTC using excessively large efficiency at low price. Our team made USB RTC to execute a real real-time clock (RTC) using an integrated temperature-compensated crystal oscillator (TCXO) and crystal.
USB Real Time Clock For Raspberry PiMCP2221 is the key Part of the USB RTC module which functions like a USB 2.0 into I2C / / UART Protocol Converter together with GPIO. It supports full speed USB (1-2 Mb/s) which produces the communication between the Host and USB RTC with higher efficacy. It includes the Human Interface Device (HID) for the processor controller and I2CTM which allows better control of their user to the computer system. MCP2221 has assembled using Four GPIO lines which can be accessible for GPIO Operations which empowers the users to produce smarter technically complex products.
Features of MCP2221- I2C/SMBus supported clock and data lines
- User-selectable via jumper cable for 3.3V or 5V level output (up to 500 mA)
- Four GPIO lines that are configurable for GPIO Operations
- Pins for Serial(UART) Communication
- Supports full-speed USB (12 Mb/s)
- 64-byte Transmit
- 64-byte Receive
- USB 2.0 Compliant
MCP2221 is actually a break out module which works like a USB interface processor to its conversion of this information transfer protocol between your computer USB and UART (Serial) and I2C. MCP2221 was made to execute the duty for being a development and test stage which is made up of a single double in-line form variable board.
USB Real Time Clock For Raspberry PiWhen we proceed into the facts afterward TCXO has come in the effort that's a vital portion of this USB RTC. TCXO or even Temperature-compensated crystal oscillator can be really a crystal oscillator having a temperature-sensitive reactance circuit in its own oscillation loop into remunerate to the features of frequency-temperature inherent into the crystal. An individual may operate the clock USB RTC in the 24hour or 12hourformat using an AM/PM indicator. There are just two cushioned Time of day alarms and a padded Square wave output signal is provided in order that an individual may utilize USB RTC in a far better method in their own endeavours. The Address and data are transferred serially through an I2C bi directional bus.
One of things which behave as the main reason behind the aggravation of a programmer or tech-enthusiast could be that the ability failures of this system. We took this issue into the consideration whilst developing the USB RTC to present the very ideal experience to the clients. There's really a precision temperature-compensated voltage reference and comparator circuit which tracks the status of VCC to find power failures of this USB RTC. It will permit the apparatus, USB RTC, by providing a reset output signal and then it automatically switches to the backup source to conduct the device using exactly the exact same. There's additionally the RST pin which works like a push button input signal for generating a µP re set.
Specifications- Accuracy ±2ppm from 0°C to +40°C
- Accuracy ±3.5ppm from -40°C to +85°C
- Battery Backup Input for Continuous Timekeeping
- Operating Temperature Ranges Commercial: 0°C to +70°C Industrial: -40°C to +85°C ♦ Low-Power Consumption
- Real-Time Clock Counts Seconds, Minutes, Hours, Day, Date, Month, and Year with Leap Year Compensation Valid Up to 2100
- Two Time-of-Day Alarms
- Programmable Square-Wave Output
- Fast (400kHz) I2C Interface
- 3.3V Operation
- Digital Temp Sensor Output: ±3°C Accuracy
- Register for Aging Trim
- RST Output/Push Button Reset Debounce Input
- Underwriters Laboratories (UL®) Recognized
USB RTC (Real Time Clock) For Raspberry Pi
