LoRa-Gateway-Single-Channel-PCB

LoRa-gateway-single-channel-PCB

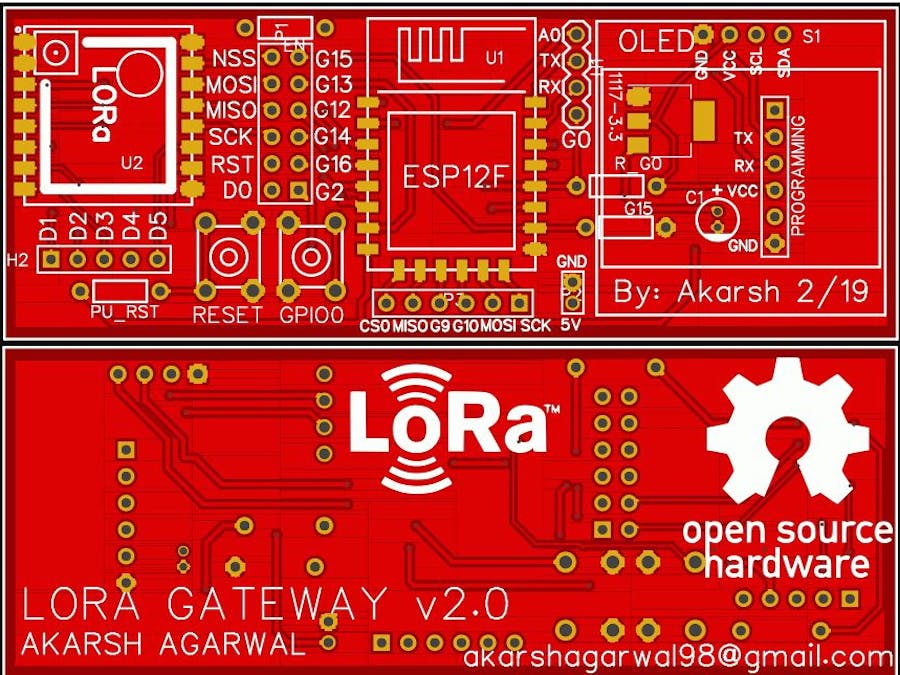

FRONT SIDE IMAGE OF THE PCB

This PCB is a sinle channel gateway of LoRa, You can use this PCB as a node as well. The Pcb uses:

• ESP8266 as the microcontroller
• Ra-02 LoRa module.
• OLED SSD13086 0.96' display
• Other basic components.

There is also an easy to program header under the OLED display to flash the device by connecting FTDI chip.

ORDERING THE PCB

I would also recommend to get your PCB manufactured at least 2 pieces. You can order your PCBs from PCBWAY as they offer 10 PCBs for just 5$. Check out their online Gerber viewer function.

BACK SIDE IMAGE OF THE PCB

This is the schematic for the project:
