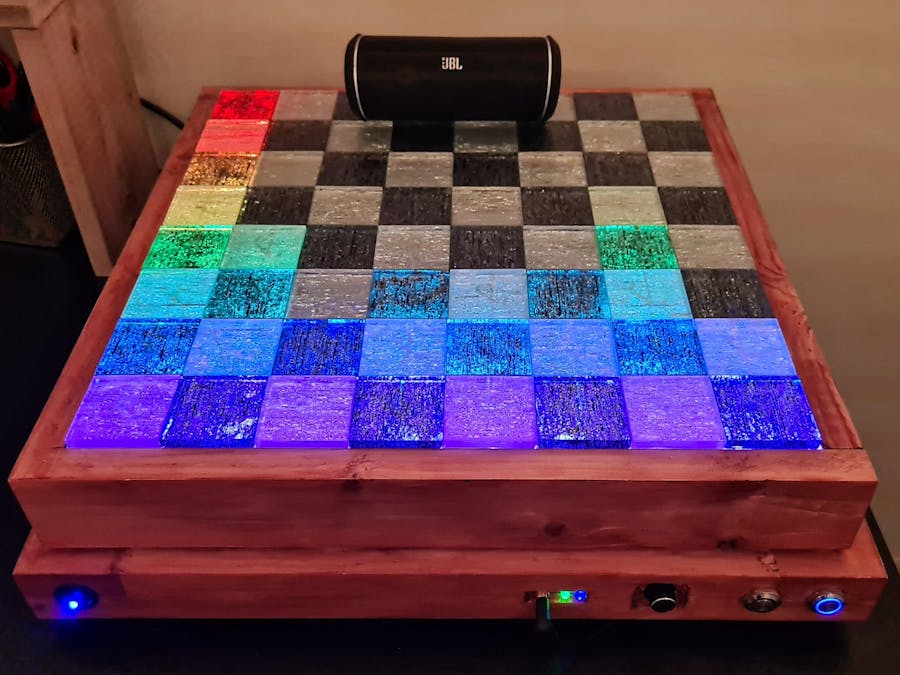

A chessboard spectrum analyzer

A backlit glass and wooden chessboard, mostly used as a spectrum analyzer.

AdvancedWork in progressOver 2 days170
A chessboard spectrum analyzer

Story

Read more

Schematics

Chessboard schematics

1/3 : Power supply and card pinout
2/3 : Features
3/3 : Sensor acquisition (grid)

Code

Main chessboard project

C/C++
Runs the main loop and manages troubleshooting
/**************************************************************
 *  FULL CHESSBOARD                                           *
 *  Designer :    Reunics                                     *
 *  Description : includes leds animations, pieces detection, *
 *                setting,trum analyzer,                      *
 *                Wi-Fi & BT management                       *
 *  Controller :  Arduino MEGA 2560                           *
 **************************************************************/


#include "header.h"

#define NB_MODES  4

Adafruit_NeoPixel strip(LED_COUNT, LED_STRIP, NEO_GRBW + NEO_KHZ800);
SoftwareSerial ESP8266(52, 53);

byte currentMode = 0;
bool possibilitiesEnabled = true;

// Debug
String menu = "";



/* ---------------------------------
 * -------- INTERRUPTIONS ----------
 * --------------------------------- */



/*
 * Interrupt for Mode Button - triggered on falling edge
 */
unsigned long t_buttonPushingTime = millis();
unsigned long lastDuration = 0;

void fallingInterruptModeButton()
{
    detachInterrupt(digitalPinToInterrupt(BT_MODE));
    attachInterrupt(digitalPinToInterrupt(BT_MODE), risingInterruptModeButton, RISING);

    t_buttonPushingTime = millis();

    Serial.println("F");
}

/*
 * Interrupt for Mode Button - triggered on rising edge
 */
void risingInterruptModeButton()
{
    detachInterrupt(digitalPinToInterrupt(BT_MODE));
    attachInterrupt(digitalPinToInterrupt(BT_MODE), fallingInterruptModeButton, FALLING);

    lastDuration = millis()-t_buttonPushingTime;

  // short push
  // long push is managed inside each mode if necessary
    if(lastDuration < WAITING_TIME_BT)
    {
        lastDuration = 0;
        changeMode();
    }
    Serial.println("R");
}

/*
 * Interrupt for Poss Button - triggered on any edge
 */
void changeInterruptPossButton()
{
    buttonLightManagement();
}


void setup() // -------------------------------------------------------- SETUP --------------------------------------------------------------
{
    pinMode(LED_STRIP     , OUTPUT);
    pinMode(LED_WIFI      , OUTPUT);
    pinMode(LED_BLUETOOTH , OUTPUT);

    pinMode(BT_MODE       , INPUT_PULLUP);
    pinMode(BT_POSS       , INPUT_PULLUP);
    pinMode(LED_BT_MODE   , OUTPUT);
    pinMode(LED_BT_POSS   , OUTPUT);

    pinMode(CD4017_CLK    , OUTPUT);
    pinMode(CD4017_Q7_IN  , INPUT);

    pinMode(CD4051_A      , OUTPUT);
    pinMode(CD4051_B      , OUTPUT);
    pinMode(CD4051_C      , OUTPUT);
    pinMode(CD4051_X      , INPUT);

    pinMode(BUZZER        , OUTPUT);

    pinMode(BACKLIGHT_R   , OUTPUT);
    pinMode(BACKLIGHT_G   , OUTPUT);
    pinMode(BACKLIGHT_B   , OUTPUT);

    attachInterrupt(digitalPinToInterrupt(BT_MODE), fallingInterruptModeButton, FALLING);
    attachInterrupt(digitalPinToInterrupt(BT_POSS), changeInterruptPossButton, CHANGE);


  /* ----------------------------------- */

  // Serial
    Serial.begin(115200);

  // Leds
    for(int i=0; i<2; i++) {
        digitalWrite(LED_WIFI, LOW);
        digitalWrite(LED_BLUETOOTH, LOW);
        delay(100);
        digitalWrite(LED_WIFI, HIGH);
        digitalWrite(LED_BLUETOOTH, HIGH);
        delay(100);
    }
    delay(200);
    digitalWrite(LED_BLUETOOTH, HIGH);

  // Button lights
    buttonLightInit();

  // Chessboard
    init_sensor_array();
    initPieces();

  // Led strip
    strip.begin();
    strip.clear();
    strip.show();

    if(ENABLE_START_LED_SEQUENCE)
    {
        random_filling(true);
        byte color[3] = {0,200,0}, stripColor[3] = {200,0,20};
        scroll_text(1, "Let's go", 50,0, color, stripColor);
      /*
        tone(BUZZER, 1030);
        delay(1000);
      */

    }
}


void loop() // --------------------------------------------------------- LOOP ------------------------------------------------------------
{
    //temperature_check(1000); // DEFAULT

    leds_management();

    //exchangeWithESP(ESP8266);

    //backlight_wheel(10); // currently cannot be dispayed in led_animations bc there's only delay() functions

    serial_event();


    chooseMode();

}



/*  -----------------------------------------------------
 *  ------------------- MODE FUNCTIONS ------------------
 *  ----------------------------------------------------- */


/*
 * Change the current mode. Triggered by a short push on BT_MODE.
 */
void changeMode()
{
    currentMode++;
    if(currentMode >= NB_MODES)
        currentMode = 0;

    Serial.println(currentMode);
    chooseMode();

}

/*
 * Runs the current mode
 */
void chooseMode()
{
    strip.clear();
    //Serial.println("choose mode");
    switch(currentMode)
    {
        case 0:
            spectrum_analyser(40);
            break;
        case 1:
            led_animations();
            break;
        case 2:
            chessboard_mode();
            break;
        case 4:
            choose_color();
            break;
        case 5:
            debug();
            break;
    }
}

/*
 * Lauches some LED animations
 */
void led_animations()
{
    french_flag();
    while(true)
    {
        sparkling(0xff,0xff,0xff, 25);

        runningLights(0xff,0xff,0x00, 7, false);
        //runningLights(0xff,0x00,0xA0, 8, false);
        runningLights(0x00,0xbf,0xdf, 7, true);

        //french_flag();

        random_filling(true);

        for(int i=0; i<2; i++)rainbowCycle(5);

        //meteorRain(0xff,0xff,0xff,10, 64, true, 20);
        meteorRain(0xff,0x00,0xA0,10, 64, true, 10);
        //meteorRain(0x00,0x00,0xff,10, 64, true, 8);

        snake(5);

        byte color[3] = {150,60,0}, stripColor[3] = {0,150,40};
        scroll_text(1, " Thanks for watching ! ", 20,0, color, stripColor);
        //scroll_text(2, " Let's go ! ", 30,0, color, stripColor);
    }
}

/*
 * Lauches the chessboard function serie
 */
void chessboard_mode()
{
    init_sensor_array();
    initPieces();
    draw();
    //possibilitiesEnabled = (buttonManagement(BT_POSS)==1) ? true : false;
    delay(50);
}



/*  -----------------------------------------------------
 *  ------------------- DEBUG METHODS -------------------
 *  ----------------------------------------------------- */



/*
 * Launch the debug interface
 */
void debug()
{
  // diplay a red cross
    strip.clear();
    byte ledArray[] = {18,28,36,42,54,56,70,72,84,90,98,108};

    for(byte i=0; i<3; i++) {
        for(int led=0; led<(sizeof(ledArray)/sizeof(ledArray[0])); led++)
        {
            strip.setPixelColor(ledArray[led], 255, 0, 0);
            strip.setPixelColor(ledArray[led+1], 255, 0, 0);
            strip.show();
        }
        if(i<2) {
            delay(100);
            strip.clear();
            strip.show();
            delay(100);
        }
    }

    while(1)
    {
        setStripBrightness();
        serial_event();
    }
}

/*
 * Launch the test corresponding to the user entry
 */
void serial_event()
{
    if(!Serial.available())
        return;

    String availableTests[] = {"BUTTONS","BUZZER","LEDS","LEDSTRIP","POT","POWER"};

    if(menu == "")
    {
        if(serialTestWord("DEBUG")) {
            Serial.println("Please select an element to test :\n1. BUTTONS\n2. BUZZER\n3. LEDS\n4. LEDSTRIP\n5. POT\n6. POWER ?\n");
            menu = "menu";
        }
    }
    else if(menu == "menu")
    {
        int wordTest = serialTestWord(availableTests);
        if(wordTest==0)
            return;

        Serial.println("---------- " + availableTests[wordTest-1] + " TEST START ----------\n");
        delay(50);

        switch(wordTest)
        {
            case 1:
                testButtons();
                menu = "inTest";
                break;
            case 2:
                testBuzzer();
                menu = "inTest";
                break;
            case 3:
                testLeds();
                menu = "inTest";
                break;
            case 4:
                testLedStrip(strip);
                menu = "inTest";
                break;
            case 5:
                testPot();
                menu = "inTest";
                break;
            case 6:
                testPowerSupply();
                menu = "inTest";
                break;
        }
        Serial.println("\n-------<<\n");

        if(menu=="inTest")
            menu="menu";
    }
}

/*
 * Check if the send word match the one passed in parameter
 */
int serialTestWord(String wordToTest)
{
    if(Serial.available())
    {
      // read data from serial

        char mot[20], i = 0;

        while(Serial.available())
        {
            mot[i] = Serial.read();
            delay(10);
            i++;
            if(i>=18) break;
        }
        mot[i] = '\0';
        delay(10);

      // comparison

        String endingChars = "\r\n";
        strcat(wordToTest.c_str(), endingChars.c_str());
        return (strcmp(mot, wordToTest.c_str()) == 0);
    }
    return 0;
}

/*
 * Check if the send word matches one of those contained in the array
 */
int serialTestWord(String wordsToTest[])
{
    if(Serial.available())
    {
      // read data from serial

        char mot[20], i = 0;

        while(Serial.available())
        {
            mot[i] = Serial.read();
            delay(10);
            i++;
            if(i>=18) break;
        }
        mot[i] = '\0';
        delay(10);

      // comparison

        String motStr = mot, endingChars = "\r\n";
        for(int j=0; j<6; j++)
        {
            strcat(wordsToTest[j].c_str(), endingChars.c_str());
            if(motStr.equals(wordsToTest[j].c_str()))
                return j+1;
        }
    }
    return 0;
}

header.h

C Header File
General header
/**************************************************************
 *  File: header.h                                            *
 *  Content: all the pin, prototypes and constants defs       *
 **************************************************************/


#ifndef DEF_HEADER
#define DEF_HEADER


#include <Adafruit_NeoPixel.h>
#include <SoftwareSerial.h>
#include "fix_fft.h"
#include <binary.h>



// ------ ENABLE MODULES -------

#define ENABLE_WIFI               0
#define ENABLE_LED_STRIP          1
#define ENABLE_START_LED_SEQUENCE 0



/* ---------------------------------
 * ---------- OUTPUT PINS ----------
 * --------------------------------- */



// --------- DIGITAL I/O ----------

#define LED_STRIP       24
#define LED_BLUETOOTH   40 // bleu
#define LED_WIFI        38 // vert

#define BT_MODE         21  // IN INTERRUPT
#define BT_POSS         20  // IN INTERRUPT
#define LED_BT_MODE     9   // PWM
#define LED_BT_POSS     8   // PWM

#define CD4017_CLK      11
#define CD4017_Q7_IN    12  // IN

#define CD4051_A        5   // possible inversion dans le cablage
#define CD4051_B        6
#define CD4051_C        7
#define CD4051_X        13  // IN

#define BUZZER          10

#define ESP_RX          18 // (Arduino TX1)
#define ESP_TX          19 // (Arduino RX1)

#define BACKLIGHT_R     3
#define BACKLIGHT_G     2
#define BACKLIGHT_B     4

// -------- ANALOG INPUTS ---------

#define ALIM              A1
#define LED_BLUETOOTH_IN  A3  // delivered LED voltage about 1.5V
#define LM35_VIRTUAL_GND  A4
#define LM35_RAW_VOUT     A8
#define AUDIO_PIN         A13
#define POTENTIOMETER     A15



/* ---------------------------------
 * ------------ CONSTANTS ----------
 * --------------------------------- */


// ---------- SETTINGS -----------

#define WAITING_TIME_BT   300

// ------------ WIFI  ------------

#define WLAN_SSID     " your_SSID :) "
#define WLAN_PASS     " your_password :) "

#define WEBSITE       "wifitest.adafruit.com"
#define WEBPAGE       "/testwifi/index.html"

// ------ SENSORS VARIABLES -------

#define MAX_TEMP      50

// -------- LEDS VARIABLES --------

#define LED_COUNT           8*16
#define MAX_VALUE_BACKLIGHT 180



/* ---------------------------------
 * ----------- PROTOTYPES ----------
 * --------------------------------- */



// LED animations
void setStripBrightness();

void runningLights(byte red, byte green, byte blue, int WaveDelayn, bool endFlash);
void rainbowCycle(int SpeedDelay);
void fadeToBlack(int ledNo, byte fadeValue);
void meteorRain(byte red, byte green, byte blue, byte meteorSize, byte meteorTrailDecay, boolean meteorRandomDecay, int SpeedDelay);
void french_flag();
void scroll_text(char equipe, String chaine, int t_scrolling, int t_letterBreak, byte color[], byte stripColor[]);
void random_filling(bool beginning);
void snake(int speedDelay);
void sparkling(byte red, byte green, byte blue, int speedDelay);

void backlight_wheel(byte speed_ms);
void choose_color();

// Spectrum analyzer
void spectrum_analyser(byte backlightPulseTime);
void analyzerBacklight(int barht[], char *color, byte backlightPulseTime);
void analyzingProcess(char data[], char im[], int barht[]);
void analyserButtonCkeck();
void displayBars(int barht[], bool displayDirection);
void setDisplaySettings(int *brightness, bool *displayDirection);

// Chessboard
void init_sensor_array();
void sensor_acquisition();

void init_chessboard();
void initPieces();
void draw();
void chessboard_main();
int possibilities(int xtakeoff, int ytakeoff, int piece, int chessboard[8][8]);
void caseMarking(byte x, byte y);

// Serial
int serialTestWord(String wordToTest);
int serialTestWord(String wordsToTest[]);

// Debug
void testBuzzer();
void testPowerSupply();
void testLedStrip(Adafruit_NeoPixel strip);
void testLeds();
void testPot();
void testButtons();

// Features
void changeMode();
void chooseMode();

int temperature_check(int checkInterval);
bool leds_management();

byte buttonManagement(int button);
void buttonLightInit();
void buttonLightManagement();

void choose_color();
void led_flash(int output, int delayTime);

byte acquirePotValue255();
float acquirePotValuePercent();
byte calculateStepOfPotValue();

// Wi-Fi
void exchangeWithESP(SoftwareSerial ESP8266);


#endif

Spectrum analyzer

C/C++
Studies the frequency spectrum of the audio signal and controls the LEDs
/**************************************************************
 *  File: spectrum_analyzer.cpp                               *
 *  Content: the whole spectrum analyzer process              *
 **************************************************************/


#include "Arduino.h"
#include "header.h"

#define SAMPLES 64  // 128
#define NB_ANALYZER_MODES 3

unsigned long t_backlightPulseTime;
bool backlightEnabled = true;
byte spectrumAnalyzerMode = 0;
extern unsigned long lastDuration;
bool displayDirection = false;
int brightness;

extern Adafruit_NeoPixel strip;


/*
 * Runs all the functions needed to spectrum analyzer mode
 */
void spectrum_analyser(byte backlightPulseTime)
{
    char color = 'r';

    char im[SAMPLES];
    char data[SAMPLES];
    int barht[SAMPLES];

    while(1)
    {
        setDisplaySettings(&brightness, &displayDirection);
        analyserButtonCkeck();

        analyzingProcess(data, im, barht);
        displayBars(barht, displayDirection);

        analyzerBacklight(barht, &color, backlightPulseTime);
    }
}



/* ----------------------------------
 * --------- GENERAL PROCESS --------
 * ---------------------------------- */



/*
 * analyze the audio signal thanks to FFT
 * manage too the display rendering updrade
 */
void analyzingProcess(char data[], char im[], int barht[])
{
    static int i, j;
    int val;

  // get audio data
    for(i = 0; i < SAMPLES; i++)
    {
        val = analogRead(AUDIO_PIN);    // 0-1023
        data[i] = (char)(val/4 - 128);  // store as char
        im[i] = 0;                      // init all as 0
    }

  // run FFT
    fix_fft(data, im, 5, 0);

  // extract absolute value of data only, for 8 results
    int divider = 4; // 2

    for(i = 0; i < SAMPLES/divider; i++) // i<SAMPLES
        barht[i] = (int)sqrt(data[i] * data[i] + im[i] * im[i]);

    for(i = 0, j = 0; i < SAMPLES/divider; i++, j += 2)
        barht[i] = barht[j] + barht[j + 1];

    if(!leds_management()) {
        for(int i=0; i<SAMPLES/divider; i++)
            barht[i] = 0;
    }


  // upgrade rendering

    if(true)
    {
        float coef = 2.1;
        barht[0]*=0.6;
        barht[1]*=coef;
        barht[2]*=coef;
        barht[3]*=coef;
        barht[4]*=coef;
        barht[5]*=coef;
        barht[6]*=coef;
    }

}

/*
 * Update brightness and diaply direction
 */
void setDisplaySettings(int *brightness, bool *displayDirection)
{
    if( acquirePotValue255() < 126) {
        *brightness = 255-acquirePotValue255()*2;
        *displayDirection = false;
    }
    else {
        *brightness = (acquirePotValue255()-127)*2;
        *displayDirection = true;
    }

    if(*brightness > 255) *brightness = 255;

    strip.setBrightness( *brightness );
}

/*
 * check whether a button is pushed
 */
void analyserButtonCkeck()
{
    backlightEnabled = (buttonManagement(BT_POSS)==1) ? true : false;

    if(buttonManagement(BT_MODE)==2)
        spectrumAnalyzerMode++;

    if(spectrumAnalyzerMode >= NB_ANALYZER_MODES)
        spectrumAnalyzerMode=0;
}



/* ----------------------------------
 * --- VISUAL ELEMENTS MANAGEMENT ---
 * ---------------------------------- */



/*
 * Diplay bars on LED matrix
 */
void displayBars(int barht[], bool displayDirection)
{
    byte led;
    float r,g,b,w;

    switch(spectrumAnalyzerMode)
    {
      // multi color

        case 0:

            for (int i=0; i<8; i++) // each bar
            {
                for (int j=0; j<16; j+=1) // each LED of a bar
                {
                    if(displayDirection)
                        led = LED_COUNT - 1 - (i * 16 + j);
                    else
                        led = (i * 16 + j);

                    if (j <= barht[i])
                    {
                        switch (j)
                        {
                            case 0: strip.setPixelColor(led,  50,  0,   200, 0); break;  // purple
                            case 1: strip.setPixelColor(led,  10,  0,   200, 0); break;
                            case 2: strip.setPixelColor(led,  0,   20,  200, 0); break;  // blue
                            case 3: strip.setPixelColor(led,  0,   60,  150, 0); break;
                            case 4: strip.setPixelColor(led,  0,   100, 90,  0); break;  // cyan
                            case 5: strip.setPixelColor(led,  0,   140, 60,  0); break;
                            case 6: strip.setPixelColor(led,  0,   170, 30,  0); break;  // green
                            case 7: strip.setPixelColor(led,  30,  150, 0,   0); break;
                            case 8: strip.setPixelColor(led,  60,  110, 0,   0); break;  // yellow
                            case 9: strip.setPixelColor(led,  100, 80,  0,   0); break;
                            case 10: strip.setPixelColor(led, 130, 60,  0,   0); break;  // orange
                            case 11: strip.setPixelColor(led, 160, 80,  0,   0); break;
                            case 12: strip.setPixelColor(led, 190, 40,  0,   0); break;  // red

                            case 13:
                            case 14:
                            case 15: strip.setPixelColor(led, 200, 0,   0,   0); break;  // red
                        }
                    }
                    else
                        strip.setPixelColor(led, 0, 0, 0, 0);
                }
                strip.show();
            }
            break;


      // solid color

        case 1:

            r=0; g=0; b=0; w=255; // white

            for (int i=0; i<8; i++) // each bar
            {
                for (int j=0; j<16; j++) // each LED of bar
                {
                    if(displayDirection)
                        led = LED_COUNT - 1 - (i * 16 + j);
                    else
                        led = (i * 16 + j);

                    if (j <= barht[i])
                    {
                        if(!leds_management())
                            j=0;

                        strip.setPixelColor(led, r,  g,  b,  w);
                    }
                    else
                        strip.setPixelColor(led, 0, 0, 0, 0);
                }
                strip.show();
            }
            break;

      // solid color with residue

        case 2:

            r=0; g=0; b=0; w=255; // white

            for (int i=0; i<8; i++) // each bar
            {
                for (int j=0; j<16; j++) // each LED of bar
                {
                    if(displayDirection)
                        led = LED_COUNT - 1 - (i * 16 + j);
                    else
                        led = (i * 16 + j);

                    if (j < barht[i])
                    {
                        if(!leds_management())
                            j=0;

                        strip.setPixelColor(led, r,  g,  b,  w);
                    }
                    else if (j == barht[i])
                        strip.setPixelColor(led, 200,  30,  30,  0); // residue
                    else
                        strip.setPixelColor(led, 0, 0, 0, 0);
                }
                strip.show();
            }
            break;
    }
}



/*
 * Flash the backlight on peaks
 */
void analyzerBacklight(int barht[], char *color, byte backlightPulseTime)
{
    if(backlightEnabled)
    {
        if(barht[0]>8 || barht[1]>8 || barht[2]>8)
        {
            if(*color=='r')
                analogWrite(BACKLIGHT_R, brightness);
            else if(*color=='g')
                analogWrite(BACKLIGHT_G, brightness);
            else if(*color=='b')
                analogWrite(BACKLIGHT_B, brightness);
        }

        if(millis()-t_backlightPulseTime > backlightPulseTime)
        {
            digitalWrite(BACKLIGHT_R, LOW);
            digitalWrite(BACKLIGHT_G, LOW);
            digitalWrite(BACKLIGHT_B, LOW);

            if(*color=='r')
                *color='g';
            else if(*color=='g')
                *color='b';
            else if(*color=='b')
                *color='r';

            t_backlightPulseTime = millis();
        }
    }
    else
    {
        digitalWrite(BACKLIGHT_R, LOW);
        digitalWrite(BACKLIGHT_G, LOW);
        digitalWrite(BACKLIGHT_B, LOW);
    }
}

LED animations

C/C++
Manages a dozen multicolor animations, including scrolling text
/**************************************************************
 *  File: led_animations.cpp                                  *
 *  Content: all the functions running a LED strip animation  *
 **************************************************************/


#include "Arduino.h"
#include "header.h"
#include "characters.h"

extern unsigned long lastDuration;

extern Adafruit_NeoPixel strip;


/*  -----------------------------------------------------
 *  ------------------ LED ANIMATIONS -------------------
 *  ----------------------------------------------------- */


/*
 * Running lights : twinkle LEDs in yellow
 */
void runningLights(byte red, byte green, byte blue, int WaveDelay, bool endFlash)
{
    int Position = 0;

    for (int j = 0; j < LED_COUNT/3; j++)
    {
        Position++; // = 0; //Position + Rate;
        for (int i = 0; i < LED_COUNT; i++)
        {
            setStripBrightness();
            strip.setPixelColor(i, ((sin(i + Position) * 127 + 128) / 255)*red,
                                ((sin(i + Position) * 127 + 128) / 255)*green,
                                ((sin(i + Position) * 127 + 128) / 255)*blue,
                                0);
        }
        strip.show();
        delay(WaveDelay);
    }

    if(endFlash)
    {
        float r = (float)red/255.0;
        float g = (float)green/255.0;
        float b = (float)blue/255.0;

        for(int i=240; i>0; i--)
        {
            float lum = acquirePotValuePercent();
            strip.fill( strip.Color(r*i*lum, g*i*lum, b*i*lum) );
            strip.show();
            delay(1);
        }
    }

}


/*
 * Rainbow Cycle : vary a solid color
 */
byte * Wheel(byte WheelPos)
{
    static byte c[3];

    if (WheelPos < 85) {
        c[0] = WheelPos * 3;
        c[1] = 255 - WheelPos * 3;
        c[2] = 0;
    } else if (WheelPos < 170) {
        WheelPos -= 85;
        c[0] = 255 - WheelPos * 3;
        c[1] = 0;
        c[2] = WheelPos * 3;
    } else {
        WheelPos -= 170;
        c[0] = 0;
        c[1] = WheelPos * 3;
        c[2] = 255 - WheelPos * 3;
    }
    return c;
}
void rainbowCycle(int SpeedDelay)
{
    byte *c;
    uint16_t i, j;

    for (j = 0; j < 256; j++)
    {
        setStripBrightness();
        for (i = 0; i < LED_COUNT; i++) {
            c = Wheel(((i * 256 / LED_COUNT) + j) & 255);
            strip.setPixelColor(i, *c, *(c + 1), *(c + 2));
        }
        strip.show();
        delay(SpeedDelay);
    }
}


/*
 * Meteor Rain : displays a shooting star with a little streak
 * Fade To Black : erases the steak
 */
void fadeToBlack(int ledNo, byte fadeValue)
{
  #ifdef ADAFRUIT_NEOPIXEL_H
    // NeoPixel
    uint32_t oldColor;
    uint8_t r, g, b;
    int value;

    oldColor = strip.getPixelColor(ledNo);
    r = (oldColor & 0x00ff0000UL) >> 16;
    g = (oldColor & 0x0000ff00UL) >> 8;
    b = (oldColor & 0x000000ffUL);

    r = (r <= 10) ? 0 : (int) r - (r * fadeValue / 256);
    g = (g <= 10) ? 0 : (int) g - (g * fadeValue / 256);
    b = (b <= 10) ? 0 : (int) b - (b * fadeValue / 256);

    strip.setPixelColor(ledNo, r, g, b);
  #endif
  #ifndef ADAFRUIT_NEOPIXEL_H
    // FastLED
    leds[ledNo].fadeToBlackBy( fadeValue );
  #endif
}
void meteorRain(byte red, byte green, byte blue, byte meteorSize, byte meteorTrailDecay, boolean meteorRandomDecay, int SpeedDelay)
{
    for (int i = 0; i < LED_COUNT + LED_COUNT; i++)
    {
      // fade brightness all LEDs one step
        for (int j = 0; j < LED_COUNT; j++)
        {
            if ( (!meteorRandomDecay) || (random(10) > 5) )
                fadeToBlack(j, meteorTrailDecay );
        }

      // draw meteor
        for (int j = 0; j < meteorSize; j++)
        {
            if ( ( i - j < LED_COUNT) && (i - j >= 0) )
              strip.setPixelColor(i - j, red, green, blue);
        }
        setStripBrightness();
        strip.show();
        delay(SpeedDelay);

        if(i > 160)
            break;
    }
}


/*
 * French Flag : display the french flag
 */
void french_flag()
{
    for(int rounds=0; rounds<2; rounds++)
    {
        for(int lum=0; lum<255; lum+=10)
        {
            for (int i = 0; i < 8; i++)
            {
                for (int j = 0; j < 16; j++)
                {
                    setStripBrightness();
                    if (j < 5)
                        strip.setPixelColor(i * 16 + j, 0, 0, lum, 0);
                    else if (j > 10)
                        strip.setPixelColor(i * 16 + j, lum, 0, 0, 0);
                    else
                        strip.setPixelColor(i * 16 + j, 0, 0, 0, lum);
                }
            }
            strip.show();
            delay(2);
        }
        for(int lum=240; lum>0; lum-=10)
        {
            for (int i = 0; i < 8; i++)
            {
                for (int j = 0; j < 16; j++)
                {
                    setStripBrightness();
                    if (j < 5)
                        strip.setPixelColor(i * 16 + j, 0, 0, lum, 0);
                    else if (j > 10)
                        strip.setPixelColor(i * 16 + j, lum, 0, 0, 0);
                    else
                        strip.setPixelColor(i * 16 + j, 0, 0, 0, lum);
                }
            }
            strip.show();
            delay(2);
        }
    }
}


/*
 * Scroll Text : Allow us to scroll a string in both ways
 */
void scroll_text(char equipe, String chaine, int t_scrolling, int t_letterBreak, byte color[], byte stripColor[])
{

  // Set the text color and the high & low strip color

    int red, blue, green;
    for(int i=0; i<3; i++)
    {
        red = color[0];
        green = color[1];
        blue = color[2];

        for(int j=0; j<16; j++) {
            strip.setPixelColor(0*16+j, stripColor[0], stripColor[1], stripColor[2]);
            strip.setPixelColor(7*16+j, stripColor[0], stripColor[1], stripColor[2]);
        }
    }

    //t_letterBreak = 0;    // display time of a letter
    //t_scrolling   = 50;   // scrolling speed (in ms)

  // Scrolling process

    int taille = chaine.length();
    char mot[taille + 1];
    chaine.toCharArray(mot, taille + 1);

    for (int n = 0; n < taille - 1; n++) // loop that displays all letters following
    {
      // recovers the corresponding line in the array
        int l;
        for (l = 0; l < sizeof(lettres); l++)
        {
            if (lettres[l] == (char)mot[n])
              break;
        }

      // we display and lock the letter on

        for (int i = 2; i <= 7; i++) // displays only from 2nd to 7th line bc others are 0x00
        {
            byte c = lettres[l + 1 + (i - 2)];  // cuurent byte
            byte invc = 0;                      // bool invert column

            if (equipe == 1)
              for (int colonne = 0; colonne < 8; colonne++) {
                  bool b = bitRead(c, 7 - colonne);
                  strip.setPixelColor((i - 1) * 16 + 2 * colonne, b*red, b*green, b*blue);
                  strip.setPixelColor((i - 1) * 16 + 2 * colonne + 1, b*red, b*green, b*blue);
              }
            else
            {

              // this part aims to make a glide reflectional symmetry of the sent pics.
              // we start by inverting all line byte and then we send it to rows in descending ordrer.

                invc = 0;
                for (int b = 0; b < 8; b++)
                {
                  // we make our own 2^j bc there was trouble with pow() function
                    int a = 0;
                    for (int k = 0; k <= (7 - b); k++) {
                        a *= 2;
                        if (a == 0)
                          a = 1;
                    }
                    invc = invc + ( ((c >> b) & 1) != 0) * a; // utilisation de booleen
                }
                for (int colonne = 0; colonne < 8; colonne++) {
                    bool b = bitRead(invc, 7-colonne);
                    strip.setPixelColor((8 - i) * 16 + 2 * colonne, b*red, b*green, b*blue);
                }
            }
            setStripBrightness();
            strip.show();
        }
        delay(t_letterBreak);


      // Shifts all bits 1 by 1

        for (int j = 1; j <= 8; j++) // shift on 8 bits
        {
            int m;
            for (m = 0; m < sizeof(lettres); m++) // recovers 2nd letter location
            {
                if (n + 1 >= taille)
                {
                    if (lettres[m] == (char)mot[0]) // goes get the 2nd letter
                      break;
                }
                else
                {
                    if (lettres[m] == (char)mot[n + 1])
                      break;
                }
            }

            byte  s, t;
            for (int i = 0; i < 6; i++) // one tour per row
            {
                s = lettres[l + 1 + i];
                s = s << j;                 // shifts the current letter
                t = (lettres[m + i + 1]);   // and take the new one

                s = s | (t >> 8 - j);       // adds the next letter

                if (equipe == 1) {
                    for (int colonne = 0; colonne < 8; colonne++) {
                        bool b = bitRead(s, 7 - colonne);
                        strip.setPixelColor((i + 1) * 16 + 2 * colonne, b*red, b*green, b*blue);
                        strip.setPixelColor((i + 1) * 16 + 2 * colonne + 1, b*red, b*green, b*blue);
                    }
                }
                else
                {
                  // inverts again all row bytes
                  // and send it back in descending order

                    byte invc = 0;
                    for (int b = 0; b < 8; b++)
                    {
                      // we make our own 2^j bc there was trouble with pow() function
                        int a = 0;
                        for (int k = 0; k <= (7 - b); k++)
                        {
                            a *= 2;
                            if (a == 0)
                              a = 1;
                        }
                        invc = invc + ( ((s >> b) & 1) != 0) * a; // using booleans
                    }
                    for (int colonne = 0; colonne < 8; colonne++) {
                        bool b = bitRead(invc, 7-colonne);
                        strip.setPixelColor((6 - i) * 16 + 2 * colonne, b*red, b*green, b*blue);
                    }
                }
                setStripBrightness();
                strip.show();
            }
            delay(t_scrolling);
        }
    }
    return;
}

// ---------------------------------------------------------------------------------------

void random_filling(bool beginning)
{
    bool cases[64];
    for (int i = 0; i < 64; i++)
        cases[i] = false;

    int n;
    float delayTime = 25, timeDecreasing = delayTime/17.0;
    for (int i = 0; i < 64; i++)
    {
        do {
            n = random(0, 64);
        } while (cases[n]);
        cases[n] = true;

        for (int j = 0; j < 100; j += 5) {
            strip.setPixelColor(n * 2, 0, j, j, 0);
            strip.setPixelColor(n * 2 + 1, j, j, 0, 0);
            setStripBrightness();
            strip.show();
            delay(delayTime);
        }
        if(beginning)
        {
            setStripBrightness();
            if(delayTime=0 && i>50)
              delay(1);
            else if(delayTime=0 && i>40)
              delay(3);
            else
              delay(5);
            delayTime-=timeDecreasing;
            if(delayTime<0)
              delayTime=0;
        }
    }
    for (int i = 0; i < 128; i++)
        strip.setPixelColor(i, 0, 0, 0, 0);
    setStripBrightness();
    strip.show();
}

// -------------------------------------------------------------------------------

void snake(int speedDelay)
{
    char x=0, y=0, k=7;
    byte r1,g1,b1, r2,g2,b2;

    for (byte rounds = 0; rounds < 8; rounds++) // nb of rounds
    {
        x=0; y=0; k=7;

        if (rounds==0)     {r1=250; g1=0;   b1=40;  r2=0;   g2=80;  b2=80; }
        else if(rounds==1) {r1=0;   g1=240; b1=40;  r2=100; g2=70;  b2=0;  }
        else if(rounds==2) {r1=230; g1=230; b1=230; r2=100; g2=0;   b2=80; }
        else if(rounds==3) {r1=170; g1=230; b1=80;  r2=30;  g2=20;  b2=100;}
        else if(rounds==4) {r1=100; g1=200; b1=10;  r2=170; g2=50;  b2=40; }
        else if(rounds==5) {r1=100; g1=0;   b1=230; r2=30;  g2=180; b2=50; }
        else if(rounds==6) {r1=190; g1=50;  b1=230; r2=200; g2=100; b2=0;  }
        else if(rounds==7) {r1=150; g1=150; b1=200; r2=250; g2=0;   b2=60; }

      // permanent
        for (byte n = 0; n < 9; n++) // 4 narrowing + 5 enlargements
        {
            for(byte c = 0; c < 4; c++)  // 4 sides
            {
                for (byte i = 0; i < k; i++)  // 7 cases
                {
                    setStripBrightness();
                    if(n<4) strip.setPixelColor(y * 16 + 2 * x, r1, g1, b1);
                    else strip.setPixelColor(y * 16 + 2 * x, r2, g2, b2);
                    strip.show();
                    delay(speedDelay);
                    if(c==0) x++;
                    if(c==1) y++;
                    if(c==2) x--;
                    if(c==3) y--;
                }
            }
            if(n<4) {x++; y++; k -= 2;} // narrowings
            else {x--; y--; k += 2;}    // enlargements
        }
    }
}

/*
 * Generate random pixels
 */
void sparkling(byte red, byte green, byte blue, int speedDelay)
{
    strip.clear();
    int rounds = 100;

    for(int i=0; i<rounds; i++)
    {
        setStripBrightness();
        byte pixel1 = random(LED_COUNT), pixel2;

        byte r = random(red), g = random(green), b = random(blue);
        if(i>rounds/2) r/=2;
        else b/=2;

        strip.setPixelColor(pixel1, r, g, b);

        if(pixel1%2==0) // even nb
            pixel2 = pixel1 + 1;
        else
            pixel2 = pixel1 - 1;

        strip.setPixelColor(pixel2,random(r),random(g),random(b));

        strip.show();
        delay(speedDelay);
        strip.setPixelColor(pixel1,0,0,0);
        strip.setPixelColor(pixel2,0,0,0);
    }
}



/*  -----------------------------------------------------
 *  ---------------- CONTROL FUNCTIONS ------------------
 *  ----------------------------------------------------- */



void setStripBrightness()
{
    strip.setBrightness(acquirePotValue255());
}



/*  -----------------------------------------------------
 *  ---------------- BACKLIGHT METHODS ------------------
 *  ----------------------------------------------------- */


unsigned long t_backlightTime;
byte lightStep=0, rValue=0, gValue=0, bValue=0;

void backlight_wheel(byte speed_ms)
{
    byte max_value = MAX_VALUE_BACKLIGHT;

    if(millis()-t_backlightTime > speed_ms)
    {

        switch(lightStep)
        {
            case 0: // red
                rValue++;
                if(rValue > max_value)
                    lightStep++;
                break;

            case 1: // jaune
                gValue++;
                if(gValue>max_value)
                    lightStep++;
                break;

            case 2: // cyan
                rValue--;
                bValue++;
                if(rValue==0 || bValue > max_value)
                    lightStep++;
                break;

            case 3: // bleu
                rValue = 0; bValue = max_value;
                gValue--;
                if(gValue==0)
                    lightStep++;
                break;

            case 4: // violet
                rValue++;
                if(rValue == max_value)
                    lightStep++;
                break;

            case 5: // vert
                rValue--;
                gValue++;
                bValue--;
                if(rValue==0 && gValue==max_value && bValue==0)
                    lightStep++;
                else if(rValue<0) rValue = 0;
                else if(gValue>max_value) gValue = max_value;
                else if(bValue<0) bValue = 0;
                break;

            case 6: // rouge
                rValue++;
                gValue--;
                if(rValue>max_value || gValue<1)
                    lightStep=0;
                break;
        }

        analogWrite(BACKLIGHT_R , rValue);
        analogWrite(BACKLIGHT_G , gValue);
        analogWrite(BACKLIGHT_B , bValue);

        t_backlightTime = millis();
    }
}

/*
 * Choose a solid color using the potentiometer
 */

void choose_color()
{
    byte currentSolidColor; // r/g/b
    bool stripControl = false;
    static byte strip_r, strip_g, strip_b, bk_r, bk_g, bk_b;

    strip.clear();
    strip.show();

    while(1)
    {
      // button check

        stripControl = (buttonManagement(BT_POSS)==1) ? true : false;

        if(buttonManagement(BT_MODE)==2)
        {
            currentSolidColor++;
            if(currentSolidColor > 2)
                currentSolidColor = 0;
        }

      // colors

        if(stripControl)
        {
            switch(currentSolidColor)
            {
                case 0: bk_r = acquirePotValue255();
                    break;
                case 1: bk_g = acquirePotValue255();
                    break;
                case 2: bk_b = acquirePotValue255();
                    break;
            }
            analogWrite(BACKLIGHT_R, bk_r);
            analogWrite(BACKLIGHT_G, bk_g);
            analogWrite(BACKLIGHT_B, bk_b);
        }
        else
        {
            switch(currentSolidColor)
            {
                case 0: strip_r = acquirePotValue255();
                    break;
                case 1: strip_g = acquirePotValue255();
                    break;
                case 2: strip_b = acquirePotValue255();
                    break;
            }
            strip.fill( strip.Color(strip_r, strip_g, strip_b) );
            strip.show();
        }
        delay(5);
    }
}

Characters design

C Header File
Contains all the necessary characters in 8x8 format
/**************************************************************
 *  File: characters.h                                        *
 *  Content: the mostly used ASCII characters on 8x6 bits     *
 **************************************************************/


byte lettres [500] = {
			32,        // space
			B00000000,
			B00000000,
			B00000000,
			B00000000,
			B00000000,
			B00000000,
			66,        // B
			B01111100,
			B01000010,
			B01111100,
			B01111100,
			B01000010,
			B01111100,
			90,        // Z
			B01111110,
			B00000100,
			B00001000,
			B00010000,
			B00100000,
			B01111110,
			33,        // !
			B00010000,
			B00010000,
			B00010000,
			B00010000,
			B00000000,
			B00010000,
			35,        // #
			B00000000,
			B00100100,
			B01111110,
			B00100100,
			B01111110,
			B00100100,
			39,        // '
			B00000000,
			B00000100,
			B00000100,
			B00000000,
			B00000000,
			B00000000,
			45,        // -
			B00000000,
			B00000000,
			B00000000,
			B00111100,
			B00000000,
			B00000000,
			63,        // ?
			B00111100,
			B01000010,
			B00000100,
			B00001000,
			B00000000,
			B00010000,
			64,       // @
			B00111100,
			B10000001,
			B10011101,
			B10011110,
			B10000000,
			B01111100,
			65,        // A
			B00011000,
			B00100100,
			B00100100,
			B01111110,
			B01000010,
			B01000010,
			97,        // a
			B00000000,
			B01111100,
			B00000010,
			B00111110,
			B01000010,
			B01111100,

			98,        // b
			B01000000,
			B01000000,
			B01111000,
			B01000100,
			B01000100,
			B01111000,
			67,        // C
			B00111110,
			B01000000,
			B01000000,
			B01000000,
			B01000000,
			B00111100,
			99,        // c
			B00000000,
			B00000000,
			B00111100,
			B01000000,
			B01000000,
			B00111100,
			68,        // D
			B01111000,
			B01000100,
			B01000010,
			B01000010,
			B01000100,
			B01111000,
			100,       // d
			B00000010,
			B00000010,
			B00011110,
			B00100010,
			B00100010,
			B00011110,
			69,        // E
			B01111100,
			B01000000,
			B01110000,
			B01110000,
			B01000000,
			B01111100,
			101,       // e
			B00000000,
			B00111000,
			B01000100,
			B01111000,
			B01000000,
			B00111100,
			70,        // F
			B01111100,
			B01000000,
			B01110000,
			B01110000,
			B01000000,
			B01000000,
			102,       // f
			B00000000,
			B00011100,
			B00100000,
			B00110000,
			B00100000,
			B00100000,
			71,        // G
			B00011110,
			B00100000,
			B01000000,
			B01001110,
			B01000100,
			B00111000,
			103,       // g
			B00011100,
			B00100010,
			B00011110,
			B00000010,
			B00100110,
			B00011110,
			72,        // H
			B01000010,
			B01000010,
			B01111110,
			B01111110,
			B01000010,
			B01000010,
			104,       // h
			B00000000,
			B01000000,
			B01000000,
			B01111000,
			B01000100,
			B01000100,
			73,        //I
			B00111000,
			B00010000,
			B00010000,
			B00010000,
			B00010000,
			B00111000,
			105,        //i
			B00000000,
			B00010000,
			B00000000,
			B00010000,
			B00010000,
			B00010000,
			74,        // J
			B00011110,
			B00000100,
			B00000100,
			B00000100,
			B01000100,
			B00111000,
			106,       // j
			B00011000,
			B00101000,
			B01001000,
			B00011000,
			B01001000,
			B00111000,
			75,        // K
			B01000100,
			B01011000,
			B01100000,
			B01100000,
			B01011000,
			B01000100,
			107,       // k
			B01000000,
			B01000000,
			B01111000,
			B01001000,
			B01101100,
			B01000100,
			76,        // L
			B01000000,
			B01000000,
			B01000000,
			B01000000,
			B01000000,
			B01111100,
			108,       // l
			B00000000,
			B00010000,
			B00010000,
			B00010000,
			B00010000,
			B00010000,
			77,        // M
			B01100110,
			B01011010,
			B01000010,
			B01000010,
			B01000010,
			B01000010,
			109,       // m
			B00000000,
			B00000000,
			B00000000,
			B01101100,
			B10010010,
			B10010010,
			78,        // N
			B01000010,
			B01100010,
			B01010010,
			B01001010,
			B01000110,
			B01000010,
			110,       // n
			B00000000,
			B00000000,
			B01111100,
			B01000010,
			B01000010,
			B01000010,
			79,        // O
			B00000000,
			B00111100,
			B01000010,
			B01000010,
			B01000010,
			B00111100,
			111,       // o
			B00000000,
			B00000000,
			B00111100,
			B01000010,
			B01000010,
			B00111100,
			80,        // P
			B01111100,
			B01000010,
			B01000010,
			B01111100,
			B01000000,
			B01000000,
			112,       // p
			B00000000,
			B01111000,
			B01000100,
			B01111000,
			B01000000,
			B01000000,
			81,        // Q
			B00111100,
			B01000010,
			B01000010,
			B01001010,
			B00111100,
			B00000100,
			113,       // q
			B00000000,
			B00111100,
			B01000100,
			B00111100,
			B00000100,
			B00000100,
			82,        // R
			B01111100,
			B01000010,
			B01000010,
			B01111100,
			B01000010,
			B01000010,
			114,       // r
			B00000000,
			B00000000,
			B01111100,
			B01000010,
			B01000000,
			B01000000,
			83,        // S
			B00111100,
			B01000000,
			B00110000,
			B00001100,
			B00000010,
			B00111100,
			115,       // s
			B00000000,
			B00111110,
			B01000000,
			B00111100,
			B00000010,
			B01111100,
			84,        // T
			B01111100,
			B00010000,
			B00010000,
			B00010000,
			B00010000,
			B00010000,
			116,       // t
			B00000000,
			B00100000,
			B00100000,
			B00111000,
			B00100000,
			B00011100,
			85,        // U
			B01000010,
			B01000010,
			B01000010,
			B01000010,
			B01000010,
			B00111100,
			117,       // u
			B00000000,
			B00000000,
			B01000010,
			B01000010,
			B01000010,
			B00111100,
			86,        // V
			B01000010,
			B01000010,
			B01000100,
			B00100100,
			B00100100,
			B00011000,
			118,       // v
			B00000000,
			B00000000,
			B01000010,
			B01000010,
			B00100100,
			B00011000,
			87,        // W
			B00000000,
			B01000010,
			B01000010,
			B01000010,
			B01011010,
			B01100110,
			119,       // w
			B00000000,
			B00000000,
			B00000000,
			B01000100,
			B01010100,
			B00101000,
			87,        // X
			B00000000,
			B01000100,
			B00101000,
			B00010000,
			B00101000,
			B01000100,
			87,        // x
			B00000000,
			B01000100,
			B00101000,
			B00010000,
			B00101000,
			B01000100,
			89,        // Y
			B01000010,
			B00100100,
			B00011000,
			B00010000,
			B00100000,
			B01000000,
			121,        // y
			B00000000,
			B01000100,
			B00101000,
			B00010000,
			B00100000,
			B01000000,
			122,        // z
			B00000000,
			B00111110,
			B00000100,
			B00001000,
			B00010000,
			B00111110
};

Projection of game possibilities

C/C++
Displays the game possibilities when a piece is lifted
/**************************************************************
 *  File: chessboard_mode.cpp                                 *
 *  Content: the functions used to run the chessboard mode    *
 **************************************************************/


#include "Arduino.h"
#include "header.h"

#define COLOR_VALUE 150

#define MARKING_COLOR_R 50
#define MARKING_COLOR_G 100
#define MARKING_COLOR_B 0

int chessboard[8][8];
bool bin_chessb[8][8];
int sensor_array[8][8];
bool everInit = false;

int xtakeoff, ytakeoff, xput, yput;
int piece;
int n = 0, player = 1;
bool validation = false, p = false;
int currentPossX[100], currentPossY[100], z=0; // z=indice de possActuelles

extern Adafruit_NeoPixel strip;



/*  -----------------------------------------------------
 *  -------------- ILS SENSOR ACQUISITION ---------------
 *  ----------------------------------------------------- */



/*
 * Initialize the ILS sensor array and reset sensor matrix counter
 */
void init_sensor_array()
{
    digitalWrite(CD4017_CLK, LOW);
    while(analogRead(CD4017_Q7_IN) < 300) // reset CD4017
    {
        digitalWrite(CD4017_CLK,HIGH);
        delay(5);
        digitalWrite(CD4017_CLK,LOW);
    }
    for(int i=0;i<8;i++)  // init chessboard array
        for(int j=0;j<8;j++)
            sensor_array[i][j]=0;
}

/*
 * ILS signals recovery
 */
void sensor_acquisition()
{
    for(int checkRow=0; checkRow<8; checkRow++)
    {
      // Select one row
        digitalWrite(CD4017_CLK, HIGH);  // send a rising edge to CD4017

      // Check each column
        for(byte checkColumn=0; checkColumn<8; checkColumn++)
        {
            byte i=0;
            digitalWrite(CD4051_A, ( ((checkColumn >> i) & 1) !=0) ); i++;
            digitalWrite(CD4051_B, ( ((checkColumn >> i) & 1) !=0) ); i++;
            digitalWrite(CD4051_C, ( ((checkColumn >> i) & 1) !=0) );

            sensor_array[checkRow][checkColumn] = (digitalRead(CD4051_X)==HIGH) ? 1 : 0;
        }
        digitalWrite(CD4017_CLK,LOW);
        delay(2);
    }

    // Display / Unnecessary
    /*
    for(int i=0;i<8;i++)
    {
        for(int j=0;j<8;j++)
        {
            Serial.print(sensor_array[i][j]); Serial.print(" ");
            strip.setPixelColor(i*16+2*j, sensor_array[i][j]*250, 0, 0);
            strip.setPixelColor(i*16+2*j+1, sensor_array[i][j]*200, 0, 0);
        }
        Serial.println("");
    }
    Serial.println("\n\n");

    setStripBrightness();
    strip.show();
    */
}



/*  -----------------------------------------------------
 *  ------------- CHESSBOARD INITIALIZATION -------------
 *  ----------------------------------------------------- */


/*
 * Initialize chessboard array
 */
void initPieces()
{
    /**
     *  Chessboard initialization
     *  1st player below (white), 2nd player up (black)
     *  Rook 0, Knight 1, Bishop 2, King 3, Queen 4, Pawn 5
    **/

    int chess_init[8][8] = {02,12,22,42,32,22,12,02,
                            52,52,52,52,52,52,52,52,
                            60,60,60,60,60,60,60,60,
                            60,60,60,60,60,60,60,60,
                            60,60,60,60,60,60,60,60,
                            60,60,60,60,60,60,60,60,
                            51,51,51,51,51,51,51,51,
                            01,11,21,41,31,21,11,01
                            };

    for(int i=0;i<8;i++) {
        for(int j=0;j<8;j++) {
            chessboard[i][j]=chess_init[i][j];

            if(chessboard[i][j]!=60)
                bin_chessb[i][j] = true;
            else
                bin_chessb[i][j] = false;
        }
    }

}

/*
 * Draw the chessboard array on the LED matrix
 */
void draw()
{
    //everInit = true;


    if(everInit)
    {
        for(int i=0;i<8;i++)
        {
            for(int j=0; j<8; j++)
            {
                if(chessboard[i][j]!=60) {
                    strip.setPixelColor(i*16+2*j, 0,0,255);
                    strip.setPixelColor(i*16+2*j+1, 0,0,255);
                }
            }
        }
        setStripBrightness();
        strip.show();
    }
    else
    {
      // show cases which must be occupied in red
        for(int i=0;i<8;i++){
            for(int j=0; j<8; j++) {
                if(chessboard[i][j]!=60) {
                    strip.setPixelColor(i*16+2*j, 255,0,0);
                    strip.setPixelColor(i*16+2*j+1, 255,0,0);
                }
            }
        }

      // wait for all the pieces to be placed

        byte nbOfCorrectPieces;
        do{
            sensor_acquisition();
            nbOfCorrectPieces = 0;

            for(int i=0;i<8;i++){
                for(int j=0; j<8; j++) {
                  // piece is here
                    if(chessboard[i][j]!=60 && sensor_array[i][j]) {
                        strip.setPixelColor(i*16+2*j, 0,255,0); // turn case in green
                        strip.setPixelColor(i*16+2*j+1, 0,255,0);
                        nbOfCorrectPieces++;
                    }
                  // piece is not here
                    else if(/*chessboard[i][j]!=60 && !*/sensor_array[i][j]) {
                        strip.setPixelColor(i*16+2*j, 255,0,0);
                        strip.setPixelColor(i*16+2*j+1, 255,0,0);
                    }
                    strip.show();
                }
            }
        }while(nbOfCorrectPieces<32);

        /* consider here that all pieces are correctly placed on the board */

        byte maxValue=150;
        if(nbOfCorrectPieces==64) {
            for(int v=maxValue; v>=0; v--) {
                for(int i=0; i<8; i++) {
                    for(int j=0; j<8; j++) {
                        strip.setPixelColor(i*16+2*j, 0,v,0,0);
                        strip.setPixelColor(i*16+2*j+1, 0,v,0,0);
                        setStripBrightness();
                        strip.show();
                        delay(10);
                    }
                }
            }
            for(int v=0; v<maxValue; v++) {
                for(int i=0; i<8; i++) {
                    for(int j=0; j<8; j++) {
                        strip.setPixelColor(i*16+2*j, 0,v,0,0);
                        strip.setPixelColor(i*16+2*j+1, 0,v,0,0);
                        setStripBrightness();
                        strip.show();
                        delay(10);
                    }
                }
            }
        }

        for(int i=0; i<8; i++) {
            for(int j=0; j<8; j++) {
                strip.setPixelColor(i*16+2*j, COLOR_VALUE,0,0,0);
                strip.setPixelColor(i*16+2*j+1, COLOR_VALUE,0,0,0);
                delay(10);
            }
        }
        setStripBrightness();
        strip.show();
    }
}



/*  -----------------------------------------------------
 *  ---------------- CHESSBOARD PROCESS -----------------
 *  ----------------------------------------------------- */


/*
 * Analyzes pieces moves and draw them
 */
void chessboard_main()
{

  // wait for a movement by comparing sensor_array and the last saved chessboard

    for(int x=0; x<8; x++)
    {
        for(int y=0; y<8; y++)
        {
            if(bin_chessb[x][y] != sensor_array[x][y])
            {
                if(sensor_array[x][y] == 0) // removed piece
                {
                    xtakeoff = x;
                    ytakeoff = y;
                    strip.setPixelColor(x*16+2*y, 0,0,0,0);
                    strip.setPixelColor(x*16+2*y+1, 0,0,0,0);

                    if( (chessboard[x][y]%10==1 && player==1) || (chessboard[x][y]%10==2 && player==2) )
                        p = true;

                    if(p==true)
                        piece = possibilities(xtakeoff, ytakeoff, chessboard[xtakeoff][ytakeoff], chessboard);
                }
                else // put back piece
                {
                    xput = x;
                    yput = y;
                    strip.setPixelColor(x*16+2*y, COLOR_VALUE,0,0,0);
                    strip.setPixelColor(x*16+2*y+1, COLOR_VALUE,0,0,0);
                    setStripBrightness();
                    strip.show();

                    piece = possibilities(xput, yput, chessboard[xput][yput], chessboard);

                    for(int i=0; i<z; i++) // comparison between wished move and possibilities
                    {
                        if(!(xput==xtakeoff && yput==ytakeoff)) // can't move to the same square
                        {
                            if(currentPossX[i]==xput && currentPossY[i] ==xput) // in agreement with possibilities ?
                                validation=true;

                          // invalid case : led animation
                            else {
                                for(int m=0; m<2; m++) {
                                    strip.setPixelColor(x*16+2*y, 0,0,0,0);
                                    strip.setPixelColor(x*16+2*y+1, 0,0,0,0);
                                    setStripBrightness();
                                    strip.show();
                                    delay(200);
                                    strip.setPixelColor(x*16+2*y, COLOR_VALUE,0,0,0);
                                    strip.setPixelColor(x*16+2*y+1, COLOR_VALUE,0,0,0);
                                    setStripBrightness();
                                    strip.show();
                                    delay(200);
                                    strip.setPixelColor(x*16+2*y, 0,0,0,0);
                                    strip.setPixelColor(x*16+2*y+1, 0,0,0,0);
                                    setStripBrightness();
                                    strip.show();
                                }
                            }
                        }
                        else
                            p=false;
                    }

                  // color management

                    if(validation==true && p==true)
                    {
                      // move on enemy case
                        if( (chessboard[xput][yput]%10==1 && piece%10==2) || (chessboard[xput][yput]%10==2 && piece%10==2) )
                        {
                            chessboard[xput][yput] = piece;
                            chessboard[xtakeoff][ytakeoff] = 60;
                            // recuperation(echiquier);
                            // ecritureLogs(n,piece,echiquier[xzoneup][yzoneup],xzone, yzone,xzoneup,yzoneup,true);

                          // led animation if piece is eaten
                            for(int m=0; m<2; m++) {
                                strip.setPixelColor(x*16+2*y, 0,0,0,0);
                                strip.setPixelColor(x*16+2*y+1, 0,0,0,0);
                                setStripBrightness();
                                strip.show();
                                delay(200);
                                strip.setPixelColor(x*16+2*y, COLOR_VALUE,0,0,0);
                                strip.setPixelColor(x*16+2*y+1, COLOR_VALUE,0,0,0);
                                setStripBrightness();
                                strip.show();
                                delay(200);
                            }
                        }
                      // move on unoccupied case
                        if(chessboard[xput][yput] == 60)
                        {
                            chessboard[xput][yput] = piece;
                            chessboard[xtakeoff][ytakeoff] = 60;
                            // recuperation(echiquier);
                            // ecritureLogs(n,piece,echiquier[xzoneup][yzoneup],xzone, yzone,xzoneup,yzoneup,true);
                        }

                      // next round
                        if(player==1)
                            player = 2;
                        else
                            player = 1;
                        p = false;
                        validation = false;
                    }
                }
            }
        }
    }
}

/*
 * Cast play possibilities when a piece is pulled
 */
int possibilities(int xtakeoff, int ytakeoff, int piece, int chessboard[8][8])
{
    int x, y, parallel=0;
    z=0;
    for(int i=0; i<100; i++) {
        currentPossX[i] = 0;
        currentPossY[i] = 0;
    }

    int knightx[8] = {xtakeoff+2, xtakeoff+1, xtakeoff-1, xtakeoff-2, xtakeoff-2, xtakeoff-1, xtakeoff+1, xtakeoff+2};
    int knighty[8] = {ytakeoff-1, ytakeoff-2, ytakeoff-2, ytakeoff-1, ytakeoff+1, ytakeoff+2, ytakeoff+2, ytakeoff+1};

    int kingx[8] = {xtakeoff+1, xtakeoff+1, xtakeoff,   xtakeoff-1, xtakeoff-1, xtakeoff-1, xtakeoff,   xtakeoff+1};
    int kingy[8] = {ytakeoff,   ytakeoff-1, ytakeoff-1, ytakeoff-1, ytakeoff,   ytakeoff+1, ytakeoff+1, ytakeoff+1};

    int temp = piece;

    debut:
            switch(temp)
            {
            case 01: // -------------------------------------------- ROOK ------------------------------------------
            case 02:
                for(int t=0; t<4; t++)
                {
                    for(int i=1;i<8;i++)
                    {
                        if(t==0) {
                            x = xtakeoff+i;
                            y = ytakeoff;
                        }
                        else if(t==1) {
                            x = xtakeoff-i;
                            y = ytakeoff;
                        }
                        else if(t==2) {
                            x = xtakeoff;
                            y = ytakeoff+i;
                        }
                        else {
                            x = xtakeoff;
                            y = ytakeoff-i;
                        }

                        if(chessboard[x][y]%10==1) // studied case
                        {
                            if(piece%10==2) // team of the played case
                            {
                                caseMarking(x, y);
                                currentPossX[z] = x;
                                currentPossY[z] = y;
                                z++;
                                break;
                            }
                            else
                                break;
                        }
                        else if(chessboard[x][y]%10==2)
                        {
                            if(piece%10==1)
                            {
                                caseMarking(x, y);
                                currentPossX[z] = x;
                                currentPossY[z] = y;
                                z++;
                                break;
                            }
                            else
                                break;
                        }
                        else
                        {
                            caseMarking(x, y);
                            currentPossX[z] = x;
                            currentPossY[z] = y;
                            z++;
                        }
                    }
                }

                if(parallel==1)
                {
                    temp=21;
                    goto debut;
                }

                break;
            case 11: // -------------------------------------------- KNIGHT ------------------------------------------
            case 12:
                for(int i=0;i<8;i++)
                {
                    if( (( (chessboard[knightx[i]][knighty[i]]%10==1 || chessboard[knightx[i]][knighty[i]]==60) && piece%10==2) )
                        || ((chessboard[knightx[i]][knighty[i]]%10==2 || chessboard[knightx[i]][knighty[i]]==60) && piece%10==1 ) )
                    {
                        caseMarking(knightx[i], knighty[i]);
                        currentPossX[z] = knightx[i];
                        currentPossY[z] = knighty[i];
                        z++;
                    }
                }
                break;
            case 21: // -------------------------------------------- BISHOP ------------------------------------------
            case 22:
                for(int dir=0; dir<4; dir++)
                {
                    for(int i=1; i<8; i++)
                    {
                        if(dir==0) {
                            x = xtakeoff+i;
                            y = ytakeoff+i;
                        }
                        else if(dir==1) {
                            x = xtakeoff-i;
                            y = ytakeoff+i;
                        }
                        else if(dir==2) {
                            x = xtakeoff+i;
                            y = ytakeoff-i;
                        }
                        else {
                            x = xtakeoff-i;
                            y = ytakeoff-i;
                        }

                        if(piece%10==1) // team n1 bishop
                        {
                            if(chessboard[x][y]%10==1)
                                break;
                            else if(chessboard[x][y]%10==2)
                            {
                                caseMarking(x, y);
                                currentPossX[z] = x;
                                currentPossY[z] = y;
                                z++;
                                break;
                            }
                            else
                            {
                                caseMarking(x, y);
                                currentPossX[z] = x;
                                currentPossY[z] = y;
                                z++;
                            }
                        }
                        else // team n2 bishop
                        {
                            if(chessboard[x][y]%10==2)
                                break;
                            else if(chessboard[x][y]%10==1)
                            {
                                caseMarking(x, y);
                                currentPossX[z] = x;
                                currentPossY[z] = y;
                                z++;
                                break;
                            }
                            else
                            {
                                caseMarking(x, y);
                                currentPossX[z] = x;
                                currentPossY[z] = y;
                                z++;
                            }
                        }
                    }
                }
                break;
            case 31: // -------------------------------------------- KING ------------------------------------------
            case 32:
                for(int i=0;i<8;i++)
                {
                    if((( (chessboard[kingx[i]][kingy[i]]%10==1 || chessboard[kingx[i]][kingy[i]]==60) && piece%10==2))
                      || ((chessboard[kingx[i]][kingy[i]]%10==2 || chessboard[kingx[i]][kingy[i]]==60) && piece%10==1 ) )
                    {
                        caseMarking(kingx[i],kingy[i]);
                        currentPossX[z] = kingx[i];
                        currentPossY[z] = kingy[i];
                        z++;
                    }
                }
                break;
            case 41: // -------------------------------------------- QUEEN ------------------------------------------
            case 42:
                temp=01;
                parallel=1;
                goto debut;

                break;
            case 51: // -------------------------------------------- PAWN ------------------------------------------
            case 52:
                if(piece%10==1) // team n1 pawn
                {
                    if(ytakeoff==6) // pawn never played (starting line)
                    {
                        for(int i=1;i<=2;i++)
                        {
                            if(chessboard[xtakeoff][ytakeoff-i]==60)
                            {
                                caseMarking(xtakeoff,ytakeoff-i);
                                currentPossX[z] = xtakeoff;
                                currentPossY[z] = ytakeoff-i;
                                z++;
                            }

                        }
                    }
                    else // pawn already played
                    {
                        if(chessboard[xtakeoff][ytakeoff-1]==60)
                        {
                            caseMarking(xtakeoff,ytakeoff-1);
                            currentPossX[z] = xtakeoff;
                            currentPossY[z] = ytakeoff-1;
                            z++;
                        }

                    }

                    for(int i=0;i<2;i++) // diagonal piece to eat
                    {
                        if(i==0)
                            x = xtakeoff-1;
                        else
                            x = xtakeoff+1;
                        if(chessboard[x][ytakeoff-1]%10==2)
                        {
                            caseMarking(x,ytakeoff-1);
                            currentPossX[z] = x;
                            currentPossY[z] = ytakeoff-1;
                            z++;
                        }
                    }
                }
                else // team n2 pawn
                {
                    if(ytakeoff==1) // pawn never played (starting line)
                    {
                            for(int i=1;i<=2;i++)
                            {
                                if(chessboard[xtakeoff][ytakeoff+1]==60)
                                {
                                    caseMarking(xtakeoff,ytakeoff+i);
                                    currentPossX[z] = xtakeoff;
                                    currentPossY[z] = ytakeoff+i;
                                    z++;
                                }

                            }
                    }
                    else // pawn already played
                    {
                        if(chessboard[xtakeoff][ytakeoff+1]==60)
                        {
                            caseMarking(xtakeoff,ytakeoff+1);
                            currentPossX[z] = xtakeoff;
                            currentPossY[z] = ytakeoff+1;
                            z++;
                        }

                    }

                    for(int i=0;i<2;i++) // diagonal piece to eat
                    {
                        if(i==0)
                            x = xtakeoff-1;
                        else
                            x = xtakeoff+1;
                        if(chessboard[x][ytakeoff+1]%10==1)
                        {
                            caseMarking(x, ytakeoff+1);
                            currentPossX[z] = x;
                            currentPossY[z] = ytakeoff+1;
                            z++;
                        }
                    }
                }
                break;
            default:
                break;
            }

    return piece;
}

/*
 * Show the studied case
 */
void caseMarking(byte x, byte y)
{
    strip.setPixelColor(x*16+2*y,   MARKING_COLOR_R, MARKING_COLOR_G, MARKING_COLOR_B, 0);
    strip.setPixelColor(x*16+2*y+1, MARKING_COLOR_R, MARKING_COLOR_G, MARKING_COLOR_B, 0);
    strip.show();
}




IHM Management

C/C++
Exchange signals with the HMI
/**************************************************************
 *  File: features.cpp                                        *
 *  Content: functions controlling elements serving as HMI    *
 **************************************************************/


#include "Arduino.h"
#include "header.h"

/*
 * Check if card temperature don't exceed a 50C, else trigger an alert
 */
unsigned long t_timeTemperature;

int temperature_check(int checkInterval)
{
    if(millis()-t_timeTemperature > checkInterval)
    {
        float temperature = (analogRead(LM35_RAW_VOUT) - analogRead(LM35_VIRTUAL_GND)) * (5.0 / 1023.0 * 100.0);
        //Serial.println("raw: " + (String)analogRead(LM35_RAW_VOUT) + "    virtual gnd: " + (String)analogRead(LM35_VIRTUAL_GND));
        if(temperature > MAX_TEMP){
            tone(BUZZER, 2000, 500);
            led_flash(LED_WIFI, 100);
            led_flash(LED_BLUETOOTH, 100);
        }
        t_timeTemperature = millis();
        return temperature;
    }
    return;
}

/*
 * Manage the Wi-Fi and Bluetooth LEDs
 */
unsigned long timeLedBluetooth;
bool wifiState = false;
bool bluetoothLedState, wifiLedState;

/*
 * Manage the Bluetooth LED and return 0 or 1 depending on the Bluetooth state
 */
bool leds_management()
{
  // Bluetooth LED

    //Serial.println(analogRead(LED_BLUETOOTH_IN));

    // if there's a signal
    if(analogRead(LED_BLUETOOTH_IN) > 100)
    {
        digitalWrite(LED_BLUETOOTH, HIGH);
        return true;
    }
    // if there's no signal
    else
    {
        if(millis()-timeLedBluetooth > 200) {
            if(digitalRead(LED_BLUETOOTH)==HIGH)
                digitalWrite(LED_BLUETOOTH, LOW);
            else
                digitalWrite(LED_BLUETOOTH, HIGH);

            timeLedBluetooth = millis();
        }
        return false;
    }
}

/*
 * Return the potentiometer value as a percentage
 */
float acquirePotValuePercent()
{
    float potStep = calculateStepOfPotValue();
    potStep/=24.0;
    return (float)potStep;
}
/*
 * Return the potentiometer value out of 255
 */
byte acquirePotValue255()
{
    byte potStep = calculateStepOfPotValue();
    potStep*=(255.0/24.0);
    //Serial.println(potStep*4);
    return potStep;
}
/*
 * Returns the step of the pot value (from 0 to 11)
 */
byte calculateStepOfPotValue()
{
    int value = analogRead(POTENTIOMETER);

    // value between 0 and 100

    byte s=0;
    if(value>150) s++;
    if(value>230) s++;
    if(value>290) s++;
    if(value>305) s++;
    if(value>310) s++;
    if(value>315) s++;
    if(value>320) s++;
    if(value>325) s++;
    if(value>330) s++;
    if(value>335) s++;
    if(value>340) s++;
    if(value>345) s++;
    if(value>350) s++;
    if(value>355) s++;
    if(value>370) s++;
    if(value>385) s++;
    if(value>410) s++;
    if(value>450) s++;
    if(value>500) s++;
    if(value>580) s++;
    if(value>650) s++;
    if(value>750) s++;
    if(value>891) s++;
    //Serial.println(value);

    return s;
}


/*
 * Receives a button name and returns a result in terms of the duration of the last push
 *
 * For poss button : returns 1 on falling edge, else 0
 * For mode button : returns 0 for no push, 1 for quick push and 2 for long
 */
extern bool possibilitiesEnabled;
extern unsigned long lastDuration;

byte buttonManagement(int button)
{
  // Bt mode
    if(button == BT_MODE)
    {
      // no new push
        if(lastDuration == 0)
            return 0;
      // quick push
        else if(lastDuration > WAITING_TIME_BT) {
            lastDuration = 0;
            return 2;
        }
    }

  // Bt poss
    else if(button == BT_POSS)
    {
        bool buttonState = digitalRead(BT_POSS);

        if(buttonState == LOW)
            return 1;
        else
            return 0;
    }

    return false;
}


/*
 * Manages indicator lights of buttons
 */
unsigned long t_buttonLedTime;
extern byte currentMode;

/* only for initialization */
void buttonLightInit()
{
  // Bt mode
    digitalWrite(LED_BT_MODE, HIGH);

  // Bt poss
    if(digitalRead(BT_POSS) == LOW)
        digitalWrite(LED_BT_POSS, HIGH);
    else
        digitalWrite(LED_BT_POSS, LOW);
}
/* on edge */
void buttonLightManagement()
{
  // Bt mode
    /*
    if(millis()-t_buttonLedTime > (currentMode*2)+1) // light of the mode button
    {
        analogWrite(LED_BT_MODE, lumValueModeBt);
        if(lumValueModeBt > 253)
            isRisingLumModeBt = false;
        else if(lumValueModeBt < 4)
            isRisingLumModeBt = true;

        if(isRisingLumModeBt)
            lumValueModeBt += 2;
        else
            lumValueModeBt -= 2;
        t_buttonLedTime = millis();
    }
    */

  // Bt poss
    bool buttonState = digitalRead(BT_POSS);

    if(buttonState == LOW)
        digitalWrite(LED_BT_POSS, HIGH);
    else
        digitalWrite(LED_BT_POSS, LOW);
}

/*
 * Flash a LED passed in parameter
 */
unsigned long timeLedFlash;

void led_flash(int output, int delayTime)
{
    if(millis()-timeLedFlash > delayTime)
    {
        byte outputState = digitalRead(output);
        digitalWrite(output, !outputState);
        timeLedFlash = millis();
    }
}

Debug

C/C++
Used to perform individual tests via the serial monitor
/**************************************************************
 *  File: debug.cpp                                           *
 *  Content: f made to test some elements using the Serial   *
 **************************************************************/


#include "header.h"


/*
 * Button Test : check if pushs on pushbuttons are detected
 */
void testButtons()
{
    Serial.println(F("Push one of the buttons."));
    delay(50);

    for(int i=0; i<2; i++)
    {
        Serial.println(F("Push one of the buttons."));
        delay(50);
        while(digitalRead(BT_MODE)==HIGH && digitalRead(BT_POSS)==HIGH );

        if(digitalRead(BT_MODE)==HIGH) {
            Serial.println(F("MODE button pushed."));
            while(digitalRead(BT_MODE)==LOW);
        }
        else if(digitalRead(BT_POSS)==HIGH) {
            Serial.println(F("POSS button pushed."));
            while(digitalRead(BT_POSS)==LOW);
        }
    }
}

/*
 * Buzzer Test : emits a sound signal on a large frequency range
 */
void testBuzzer()
{
    double fDo = 32.70, fMi = 41.20, fSol = 49.00;

    for(int r=1; r<11; r++)
    {
        Serial.println(F("Listen the C major chord - Range ")); Serial.println(r); Serial.println(F("..."));
        tone(BUZZER, fDo*r, 100);
        delay(150);
        tone(BUZZER, fMi*r, 100);
        delay(150);
        tone(BUZZER, fSol*r, 100);
        delay(150);
    }
}

/*
 * LEDs Test : blinks WiFi and Bluetooth LEDs
 */
void testLeds()
{
    Serial.println(F("WiFi led blinking..."));
    for(int i=0; i<8; i++) {
        digitalWrite(LED_WIFI, HIGH);
        delay(200);
        digitalWrite(LED_WIFI, LOW);
        delay(200);
    }
    Serial.println(F("Bluetooth led blinking..."));
    for(int i=0; i<8; i++) {
        digitalWrite(LED_BLUETOOTH, HIGH);
        delay(200);
        digitalWrite(LED_BLUETOOTH, LOW);
        delay(200);
    }
}

/*
 * LED Strip Test : runs the Rainbow Circle animation on the strip
 */
void testLedStrip(Adafruit_NeoPixel strip)
{
    Serial.print(F("Testing power supply... "));
    delay(50);
    if(analogRead(ALIM)<200) {
        Serial.println(F("KO\nPlease check that the external power supply is well plugged in."));
        return;
    }
    else
        Serial.println(F("OK"));

    Serial.println(F("Starting led strip... "));
    strip.begin();
    delay(50);
    Serial.println(F("Look at the Rainbow Cycle animation..."));
    rainbowCycle(8);
    Serial.println(F("If you can see it, the test is OK, else no."));
}

/*
 * Potentiometer Test : displays potentiometer value for 15 seconds
 */
void testPot()
{
    Serial.println(F("While 15 sec, potentiometer values will be printed at screen. Move it and observe values."));
    delay(150);

    unsigned long time_testPotard = millis(), time_display = millis();
    while(millis()-time_testPotard < 15000)
    {
        if(millis()-time_display > 500) {
            Serial.print(F("Value: ")); Serial.print(analogRead(POTENTIOMETER)); Serial.println(F(" / 1023"));
            time_display = millis();
        }
    }
}

/*
 * Power Supply Test : check whether an external power supply is plugged on or not
 */
void testPowerSupply()
{
    if(analogRead(ALIM)<200)
        Serial.println(F("No external power supply has been detected.\nUSB powered."));
    else
    {
        Serial.println(F("External power supply has been detected. "));
        Serial.print(F("Input voltage : ~")); Serial.print((float)analogRead(ALIM)*0.031, 2); Serial.println(F("V"));
    }
}

WiFi

C/C++
Exchange data via the WiFi module (not used yet)
/**************************************************************
 *  File: wifi.cpp                                            *
 *  Content: f used to echange data between Serial & ESP     *
 **************************************************************/


#include "Arduino.h"
#include "header.h"

/*
 * Exchange data sent by Serial to ESP and vice versa
 */
void exchangeWithESP(SoftwareSerial ESP8266)
{
    if(!ENABLE_WIFI)
        return;

    if (ESP8266.available()) {
        Serial.write(ESP8266.read());
    }
    if (Serial.available()) {
        ESP8266.write(Serial.read());
    }
}

Credits

Alexis Sérahangué
1 project • 1 follower
Passionate electronic engineer. DIY maker.
Contact

Comments

Please log in or sign up to comment.
