Published April 6, 2025 © MIT

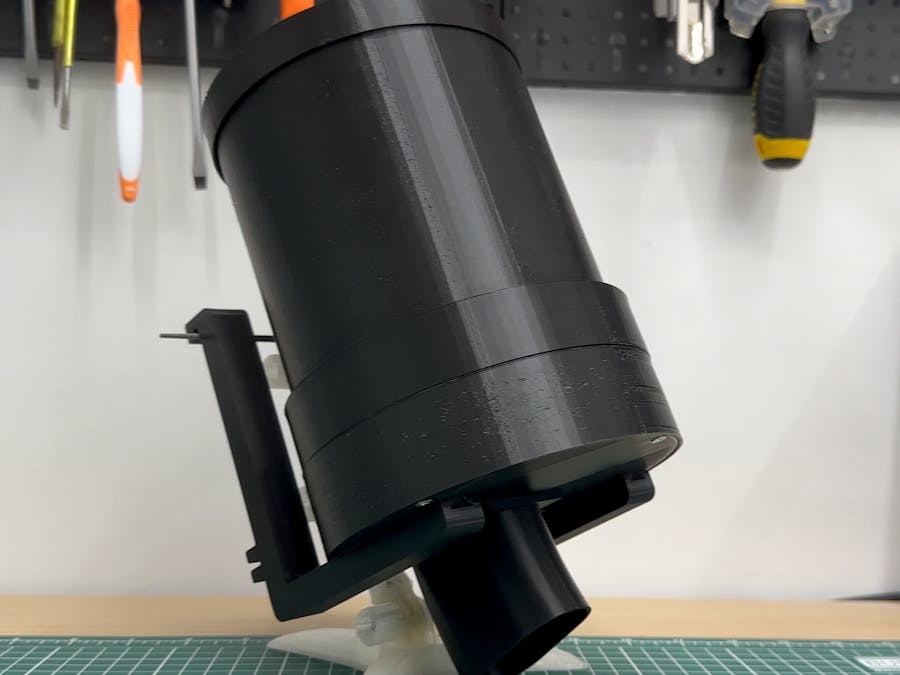

Feeder for chinchillas or other small pets

I’ve taken on a fun and practical challenge—creating an automatic feeder for chinchillas.

IntermediateFull instructions provided5 hours136

Feeder for chinchillas or other small pets

Things used in this project

Hardware components

KW4-3Z-3 Micro Limit Switch SPDT NO NC 3

ESP32-C3 OLED 0.42

N20 Micro DC Gear Motor 6V 50 RPM

Button 6x6x11

HW-517 Mosfet board

MT3608

Battery case 18650x1

TP4056

Battery 18650

Resistor 10k ohm

Prototype PCB

Hand tools and fabrication machines

3D Printer (generic)

Soldering iron (generic)

Hot glue gun (generic)

Story

Video version of the article:

Project Overview

The goal: build a feeder that can provide food to chinchillas once per day, automatically, for at least 10 days without human intervention.

Technical Requirements

Before diving into CAD software and prototypes, I gathered the following requirements:

The feeder must accommodate one or more chinchillas.
Each chinchilla requires 30–35 grams of food per day.
If feeding two chinchillas, the feeder must dispense 60–70 grams per day.
The device should operate autonomously for a minimum of 10 days, totaling 600–700 grams of food.
Reliability and ease of use are key—this is intended for daily use by pet owners.

Step 1: Designing the Container

The container determines the size and structure of all other components. I began by modeling the food storage unit in Fusion 360. This set the framework for:

Volume capacity

Feed dispensing geometry
Mounting and mechanical integration

Step 2: Generating Gears

To handle the food dispensing mechanism, gears were essential. Fusion 360's plugin for spur gear generation was used to quickly model the transmission system. This allowed me to:

Customize gear ratios
Ensure precise motion control
Integrate with a motor for timed operation

Step 3: 3D printing

Step 4: Mechanical Assembly and Prototyping

Once the core components were modeled, I assembled them. The gear system connects to a rotating drum that meters food portions. The food is poured through the hole into the bowl.

1 / 2

Step 5: Testing and Adjustment

After 3D printing the parts and assembling the feeder:

I ran multiple test cycles to ensure position accuracy. To do this, you can bend the lever.
The configuration works in such a way that the controller only wakes up to deliver food, so it can work for weeks depending on the battery.
You can add a notification in case of food getting stuck.

Final Thoughts

This feeder can work as a standalone device or as part of a smart home system, and you can also customize the configuration to suit your own needs.

Schematics

Code

pet-feeder-v3.yaml

esphome:
  name: pet-feeder-v3
  friendly_name: pet-feeder-v3

esp32:
  board: esp32-c3-devkitm-1
  framework:
    type: arduino

# Enable logging
logger:

# Enable Home Assistant API
api:
  encryption:
    key: "your-encryption-key"

ota:
  - platform: esphome
    password: "your-ota-password"

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password

  # Enable fallback hotspot (captive portal) in case wifi connection fails
  ap:
    ssid: "Pet-Feeder-V3 Fallback Hotspot"
    password: "your-ap-password"

captive_portal:

i2c:
  sda: 5
  scl: 6
  frequency: 300kHz
  scan: false

font:
  - file: "gfonts://Roboto"
    id: dfont
    size: 12

display:
  - platform: ssd1306_i2c
    id: oled_42
    model: "SSD1306 72x40"
    address: 0x3C
    lambda: |-
       it.printf(0, 0, id(dfont), "%.2fV %.0f%%", id(v_bat).state, id(bat_percent).state);
       if(id(time_synced).state) {
        it.strftime(0, 14, id(dfont), "Now: %H:%M", id(sntp_time).now());
        it.strftime(0, 28, id(dfont), "Next: %H:%M", id(feeding_date).state_as_esptime());
       } else {
        it.printf(0, 14, id(dfont), "Time");
        it.printf(0, 28, id(dfont), "sync...", id(feeding_date).state_as_esptime());
       }

time:
  - platform: sntp
    id: sntp_time
    timezone: Europe/Kyiv
    servers:
     - 0.pool.ntp.org
     - 1.pool.ntp.org
     - 2.pool.ntp.org
    on_time_sync:
      then:
        - component.update: feeding_date
        - switch.turn_on: time_synced

deep_sleep:
  id: deep_sleep_obj
  wakeup_pin_mode: KEEP_AWAKE
  wakeup_pin:
    number: 3
    allow_other_uses: true

globals:
  - id: next_feeding_timestamp
    type: long int
    restore_value: yes
    initial_value: '1681182000'

datetime:
  - platform: template
    id: feeding_date
    type: datetime
    name: "Next feeding date"
    lambda: |-
      char str[17];
      strftime(str, sizeof(str), "%Y-%m-%d %H:%M", localtime(&id(next_feeding_timestamp)));
      ESPTime esp_time;
      ESPTime::strptime(str, esp_time);
      return esp_time;
    set_action:
      lambda: |-
        x.recalc_timestamp_local();
        // ESP_LOGD("TIME", "%d",x.timestamp);
        id(next_feeding_timestamp) = x.timestamp;
        id(feeding_date).update();

  - platform: template
    id: time_diff
    type: time
    name: "Time between feedings"
    optimistic: yes
    initial_value: "12:00"
    restore_value: true

switch:
  - platform: template
    id: sleep_switch
    optimistic: true
    restore_mode: ALWAYS_OFF
    name: "Sleep"
    turn_on_action:
      if:
        condition:
          - binary_sensor.is_off: wake_binary_sensor
        then:
          - lambda: !lambda |-
              long int next = id(next_feeding_timestamp) - id(sntp_time).now().timestamp;
              if(next < 0){
                  auto diff = id(time_diff).state_as_esptime();
                  long int seconds = diff.hour * 3600 + diff.minute * 60 + diff.second;
                  id(next_feeding_timestamp) = id(next_feeding_timestamp) + seconds;
                  id(feeding_date).update();
                  next = id(next_feeding_timestamp) - id(sntp_time).now().timestamp;
              }

              id(oled_42).turn_off();
              id(deep_sleep_obj).set_sleep_duration(next * 1000);
              id(deep_sleep_obj).begin_sleep(false);

  - platform: template
    id: step_switch
    optimistic: true
    restore_mode: RESTORE_DEFAULT_OFF
    name: "Half step"

  - platform: template
    id: double_switch
    optimistic: true
    restore_mode: ALWAYS_OFF

  - platform: template
    id: time_synced
    optimistic: true
    restore_mode: ALWAYS_OFF
    on_turn_on:
      then:
        if:
          condition:
            - binary_sensor.is_off: wake_binary_sensor
          then:
            if:
              condition:
                - lambda: "return id(sntp_time).now().timestamp >= id(next_feeding_timestamp);"
              then:
                - button.press: feed_button
              else:
                - switch.turn_on: sleep_switch

  - platform: gpio
    id: motor_switch
    name: "Motor switch"
    pin:
      number: 7
    on_turn_on :
      - delay: 3s
      - if:
          condition:
            - switch.is_on: motor_switch
          then:
            - switch.turn_off: motor_switch
            # TODO: show error

  - platform: gpio
    id: board_led
    name: "Board led"
    pin:
      inverted: true
      number: 8

button:
  - platform: template
    id: feed_button
    on_press:
      then:
        - if:
            condition:
              - switch.is_on: time_synced
            then:
              - lambda: |-
                  auto diff = id(time_diff).state_as_esptime();
                  int seconds = diff.hour * 3600 + diff.minute * 60 + diff.second;
                  id(next_feeding_timestamp) = id(next_feeding_timestamp) + seconds;
                  id(feeding_date).update();
              - switch.turn_on: motor_switch

binary_sensor:
  - platform: gpio
    pin:
      number: 3
      mode:
        input: true
        pulldown: True
      allow_other_uses: true
    id: wake_binary_sensor
    name: "Wake button"
    filters:
      - delayed_on: 10ms

  - platform: gpio
    pin:
      number: 4
      mode:
        input: true
        pulldown: True
    id: feed_binary_sensor
    name: "Feed button"
    filters:
      - delayed_on: 10ms
    on_click:
      then:
        - button.press: feed_button

  - platform: gpio
    pin:
      mode:
        input: true
        pulldown: True
      number: 10
    id: endstop
    name: "Endstop"
    on_press:
      - if:
          condition:
            switch.is_on: step_switch
          then:
            - switch.turn_off: motor_switch
            - switch.turn_on: sleep_switch
          else:
            if:
              condition:
                - switch.is_off: double_switch
              then:
                - switch.turn_on: double_switch
              else:
                - switch.turn_off: motor_switch
                - switch.turn_off: double_switch
                - switch.turn_on: sleep_switch

sensor:
  - platform: adc
    pin: 0
    name: "VBat"
    id: v_bat
    update_interval: 5s
    attenuation: 11db
    filters:
      - multiply: 2

  - platform: template
    name: "Battery %"
    id: bat_percent
    lambda: return id(v_bat).state;
    update_interval: 5s
    accuracy_decimals: 0
    unit_of_measurement: "%"
    icon: mdi:battery-medium
    filters:
      - calibrate_linear:
         method: exact
         datapoints:
          - 0.00 -> 0.0
          - 3.30 -> 1.0
          - 3.39 -> 10.0
          - 3.75 -> 50.0
          - 4.11 -> 90.0
          - 4.20 -> 100.0
      - lambda: |-
          if (x <= 100) {
            return x;
          } else {
            return 100;
          }
          if (x < 0) {
            return 0;
          }


  - platform: template
    name: "Wakeup Cause"
    id: wakeup_cause
    accuracy_decimals: 0
    lambda: return esp_sleep_get_wakeup_cause();

    # 0 - ESP_SLEEP_WAKEUP_UNDEFINED: In case of deep sleep, reset was not caused by exit from deep sleep
    # 1 - ESP_SLEEP_WAKEUP_ALL: Not a wakeup cause, used to disable all wakeup sources with esp_sleep_disable_wakeup_source
    # 2 - ESP_SLEEP_WAKEUP_EXT0: Wakeup caused by external signal using RTC_IO
    # 3 - ESP_SLEEP_WAKEUP_EXT1: Wakeup caused by external signal using RTC_CNTL
    # 4 - ESP_SLEEP_WAKEUP_TIMER: Wakeup caused by timer
    # 5 - ESP_SLEEP_WAKEUP_TOUCHPAD: Wakeup caused by touchpad
    # 6 - ESP_SLEEP_WAKEUP_ULP: Wakeup caused by ULP program
    # 7 - ESP_SLEEP_WAKEUP_GPIO: Wakeup caused by GPIO (light sleep only on ESP32, S2 and S3)
    # 8 - ESP_SLEEP_WAKEUP_UART: Wakeup caused by UART (light sleep only)
    # 9 - ESP_SLEEP_WAKEUP_WIFI: Wakeup caused by WIFI (light sleep only)
    # 10 - ESP_SLEEP_WAKEUP_COCPU: Wakeup caused by COCPU int
    # 11 - ESP_SLEEP_WAKEUP_COCPU_TRAP_TRIG: Wakeup caused by COCPU crash
    # 12 - ESP_SLEEP_WAKEUP_BT: Wakeup caused by BT (light sleep only)
