RTL8720DN Chip BLE 5 & Wi-Fi Combo Module

FSC-BW236 | RTL8720DN Chip BLE 5 & Wi-Fi Combo Module

SOURCEFROM:https://www.feasycom.com/product-RTL8720DN-Chip-BLE-5-Wi-Fi-Combo-Module.htm

Basic Parameter

Module Model

FSC-BW236

Wi-Fi

Version

802.11 a/b/g/n

Transmit Power

2.4GHz: 17.5dBm(11b), 15.5dBm(11g), 13.5dBm(11n)

5GHz: 8dBm(11a)

Bluetooth

Version

BLE 5.0

Transmit Power

+8dBm

Other Parameters

Interfaces

UART, SPI, I2C

Power Supply

3.0-3.6V

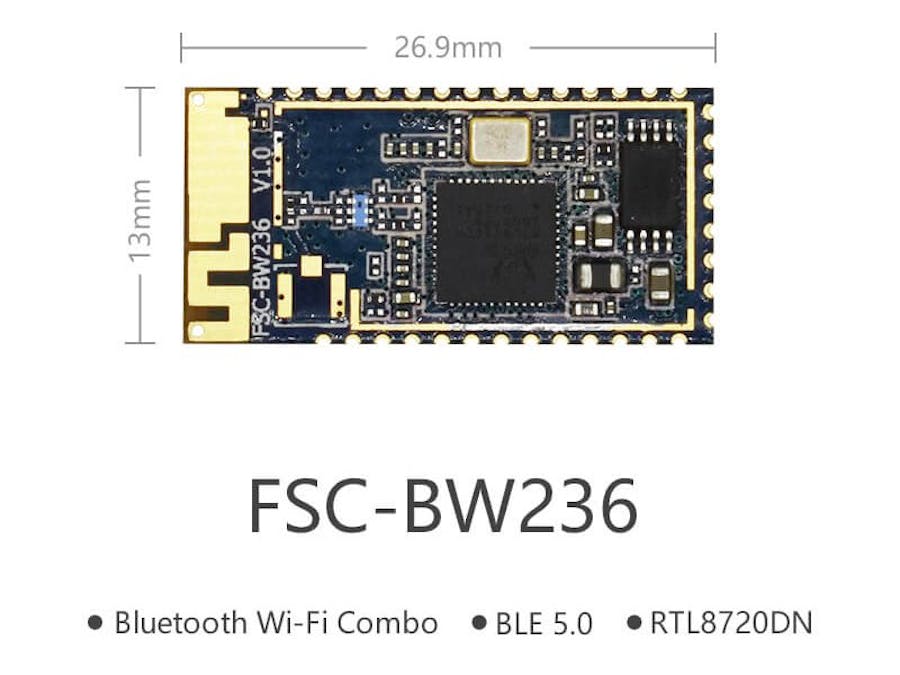

Dimension

13mm x 26.9mm x 2.2mm

Operation Temperature

-20℃ to +85℃

Storage Temperature

-55℃ to +125℃

MSL Grade

MSL 3
