Getting Started with the Maker PCB MakerST-1: Your STM32F4 Adventure Begins!

Hey there, makers and tech enthusiasts! If you’ve been itching to dive into the world of microcontrollers with a powerful yet approachable platform, you’re in for a treat. Today, we’re exploring the Maker PCB MakerST-1, a fantastic board built around the STM32F4 microcontroller series (think STM32F405RGT6, STM32F412RET6, or STM32F446RET6). Whether you’re blinking an LED for the first time or dreaming up a fancy touchscreen project, this guide has got you covered. Let’s break it down step-by-step and have some fun along the way!

1 / 8

What’s So Cool About the MakerST-1 and STM32F4?

The STM32F4: A Tiny Powerhouse

The STM32F4 family from STMicroelectronics is like the superhero of microcontrollers. It’s built on the **ARM Cortex-M4 core**, which means it’s fast (up to 168 MHz!), efficient, and packed with goodies like a **Floating Point Unit (FPU)** for math-heavy tasks and **DSP instructions** for signal processing. Depending on the model, you get 512 KB to 1 MB of Flash memory for your code and 128 KB to 192 KB of SRAM for speedy data juggling. Plus, it’s loaded with peripherals—USB, I2C, SPI, CAN, ADC, timers, you name it. Some models even throw in extras like Ethernet or SDIO for next-level projects.

The MakerST-1 Board: Your Playground

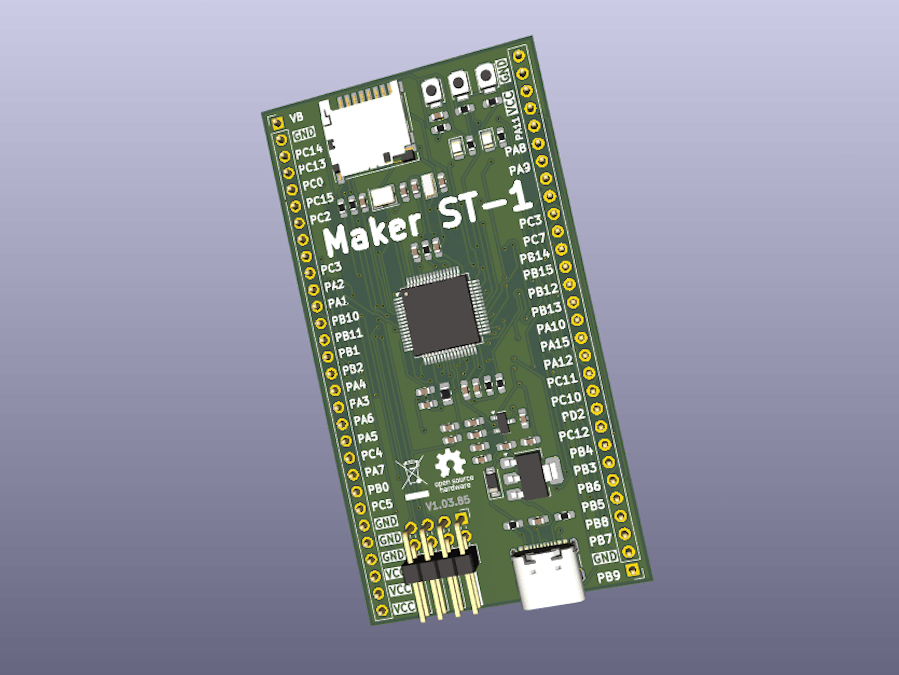

The Maker PCB MakerST-1 takes all that STM32F4 goodness and wraps it in a neat, user-friendly package. Picture this: organized pin headers for easy prototyping, a USB port (micro or USB-C) for power and programming, onboard buttons (Reset, Boot, and a bonus user button), and a handy LED (usually on PC13) for quick tests. It’s got a built-in **ST-Link/SWD interface** for programming and debugging, and it runs smoothly on a 3.3V supply (some versions handle 5V too). It’s like a Swiss Army knife for your DIY dreams!

Setting Up Your Workspace

Before we get to the fun stuff, let’s set up your development environment. You’ve got a few solid options:

STM32CubeIDE: Free, all-in-one, and beginner-friendly. It’s got a pin configurator (CubeMX), code generation, and debugging tools built in.
Keil uVision: A pro favorite, though the free version has limits. Perfect if you’re going big.
IAR Embedded Workbench: Great for squeezing out max performance—ideal for pros.
PlatformIO: Open-source and works with Visual Studio Code. Super flexible for multi-platform tinkering.

Pick one, install it (check their docs for details), and let’s get coding!

Blinking an LED: Your First Project

Nothing says “I’m a microcontroller wizard” like making an LED blink. Here’s how to do it with the MakerST-1:

Step 1: Create Your Project

Fire up STM32CubeIDE:

Go to File > New > STM32 Project.
Pick your chip (e.g., STM32F405RG) or use the board selector.
Name your project—something cool like “Blinky" and let it set up the files.
In the “Pinout & Configuration” tab, set PC13 (or wherever your LED is) as a GPIO Output.
Head to “Clock Configuration” and crank it up to 168 MHz (or your chip’s max).
Hit “Generate Code” and watch the magic happen.

Step 2: Write the Code

Open `Core/Src/main.c` and find the `while (1)` loop. Add this:

while (1) {
  HAL_GPIO_TogglePin(GPIOC, GPIO_PIN_13); // Flip PC13 on and off
  HAL_Delay(500);             // Chill for half a second
}

This toggles the LED every 500 milliseconds—simple, right?

Step 3: Flash and Test

Plug your MakerST-1 into your PC via USB, hit Run > Debug (or Run) in CubeIDE, and upload the code. If all goes well, that LED should start winking at you. Debugging tip: Use the built-in tools to peek at registers or add serial logs if things get funky.

Leveling Up: Cool Project Ideas

Once you’ve mastered the blink, the sky’s the limit! Here are some ideas to flex your MakerST-1 muscles:

1. Sensor Fun

Hook up an MPU6050 (motion), BMP280 (pressure), or BME280 (weather) via I2C or SPI. Read data, process it, and maybe display it on a tiny LCD or send it over serial.

2. USB Magic

Turn your board into a virtual serial port (CDC) for PC communication or a HID device (like a custom keyboard). Perfect for controlling stuff from your computer!

3. Audio Adventures

Add a microphone, tap into the Cortex-M4’s DSP powers, and play with real-time audio filters or FFTs. Think voice effects or a mini sound analyzer.

4. Motor Madness

Use PWM and timers to drive DC or stepper motors. Add some encoder feedback, and you’re on your way to a robot or precision controller.

5. Touchscreen Dreams

Connect a TFT display (via SPI or FSMC), throw in a touch panel, and use a library like LVGL to build slick GUIs—think dashboards or game interfaces.

Inside the STM32F4: What Makes It Tick?

Let’s geek out a bit on what powers this board:

Cortex-M4 Core: A 3-stage pipeline keeps things snappy, with DSP and FPU for heavy lifting.
Memory: Flash for code, SRAM for data, and an **ART Accelerator** to keep the CPU humming.
Buses: AHB for fast stuff, APB for peripherals—everything talks smoothly.
Peripherals: Tons of options—ADC, DAC, USB, CAN, and more. Some chips even have Ethernet!
Power & Boot: Runs at 3.3V with low-power modes. Boot0 pin decides if it’s bootloader or program time.

Pro Tips for Smooth Sailing

Hardware: Keep your power clean (good 3.3V regulation), nail the crystal setup, and leave SWD pins accessible.
Code: Use HAL or LL libraries, keep it modular, and maybe try FreeRTOS for multitasking.
Performance: Lean on the FPU and DMA, tweak clocks, and handle interrupts smartly.
Debugging: SWD is your friend—step through code, log stuff, and test like crazy.

Wrapping Up

The Maker PCB MakerST-1 and STM32F4 combo is a goldmine for makers. From blinking LEDs to building touchscreen gadgets, it’s a platform that grows with you. So grab your board, fire up your IDE, and start tinkering—every project is a chance to learn something new. Happy making!
