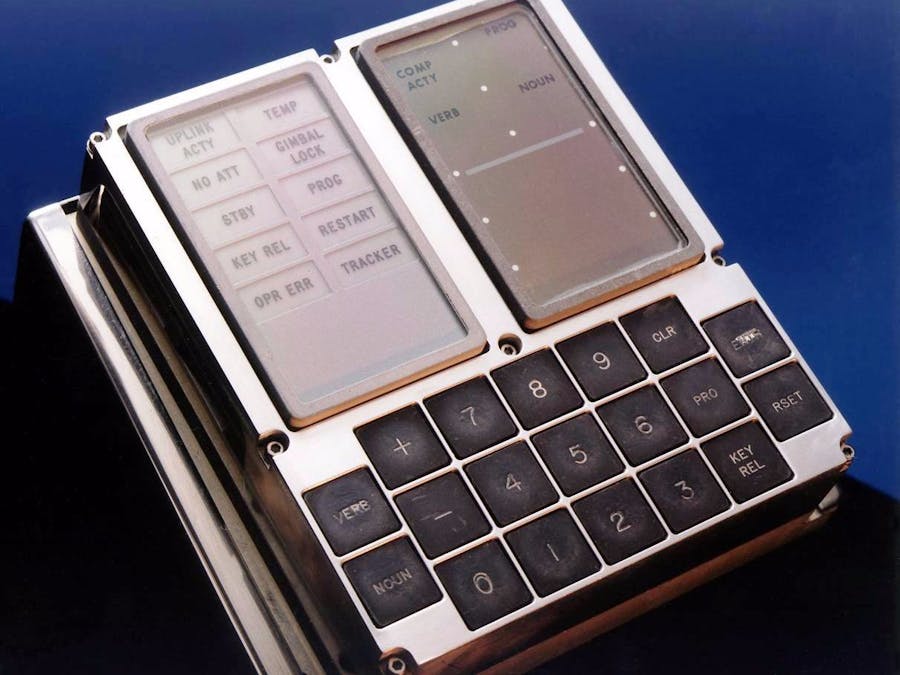

Apollo Guidance Computer Interface for Inertial Navigation

A restructured approach to implementing the elegant Apollo DSKY interface for a digital inertial navigation and guidance system.

AdvancedShowcase (no instructions)Over 18 days2,118
Apollo Guidance Computer Interface for Inertial Navigation

Things used in this project

Hardware components

Kinetis Freedom Board with FlexIO
NXP Kinetis Freedom Board with FlexIO
×1
3 mm LED: Green
3 mm LED: Green
×4
5 mm LED: Yellow
5 mm LED: Yellow
×7
SparkFun led white generic
×5
Tweezers (generic)
×1
Jumper wires (generic)
Jumper wires (generic)
×40
General Purpose Transistor NPN
General Purpose Transistor NPN
×16
Resistor 330 ohm
Resistor 330 ohm
×16
Resistor 100k ohm
Resistor 100k ohm
×16
Resistor 4.75k ohm
Resistor 4.75k ohm
×3
common cathode 13mm 7 segment display
×24
Texas Instruments max 6951
×4
Capacitor 100 nF
Capacitor 100 nF
×4
capacitor ceramic 22 microFarad
×4
27 picoFarad capacitor ceramic
×1
prototyping boards generic 154 mm x 77 mm
×3
Pushbutton switch 12mm
SparkFun Pushbutton switch 12mm
×19
Male/Female Jumper Wires
Male/Female Jumper Wires
×1
30 AWG prototyping wire 30 metres
×1
OHP transparent sheets A4 generic
×2
A4 adhesive sheets plane white
×2
papertape generic
×1

Software apps and online services

Inkscape SVG editor
CorelDraw X7 / Adobe Photoshop CS5 or later

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)
Laserjet printer generic

Story

Read more

Schematics

AGC DSKY(DiSplay & KeYboard) COMPONENTS

The Apollo Guidance Computer consisted of multiple control & Logic modules implemented using micrologic NOR gates "welded" and dipped in epoxy liquid. However the DSKY or DiSplay & KeYboard provided the austronauts with a calculator like interface to monitor the control, navigational parameters and also entered programs to do specific jobs using the keyboard provided as part of the interface
