XandR(Arduino ESP32 Multi tools)

.....Update 9/11/2023

Sketch will be available github with additional feature like evil portal

***Update >>>Initial release Binaries&PCB>>> https://github.com/reltkaine/XandR

Project XandR is an Arduino base multi tool that utilize ESP32(ESP32S2 and ESP32) microcontroller....

Initial purpose is to use all my unused module but eventually after seeing FlipperSero Google ADS,,,, while researching for the used of nrf24, cc1101 and ESP32...Just decided try to make a close or similar project that will be based on Arduino and its library......

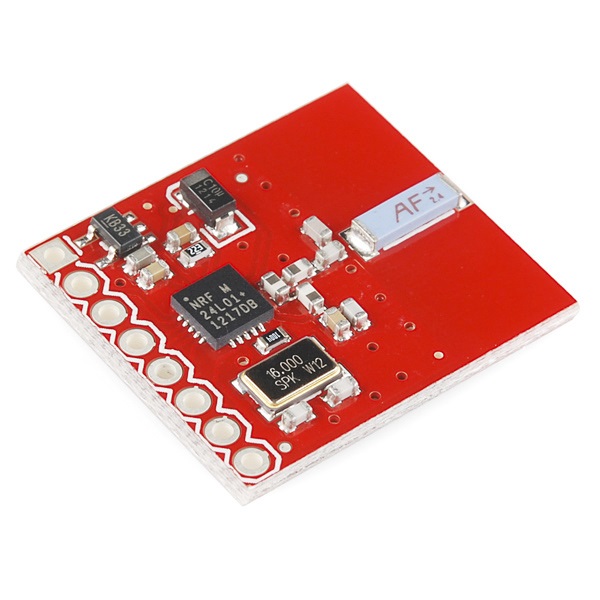

Integrate SD Card, CC1101, NRF24L01, IR receiver and transmitter in one PCB Package design....

Additional Module will include RFID/NFC reader(PN532) currently PN522 has been tested....

What it can do(Current Form)

BADUSB run ducky script from SDCARD(ESP32S2 *USB port/ESP32 *BLT *Unstable) the DuckyScriptInerpreter made by Baptiste M. (Creased) *modified

RF communication NRF24 and CC1101(w/frequency analyzer)

Packet Wifi Sniffer based from *spacehuhn sniff handshake protocol and save in SDCARD

IR Remote controller sniff and repeater

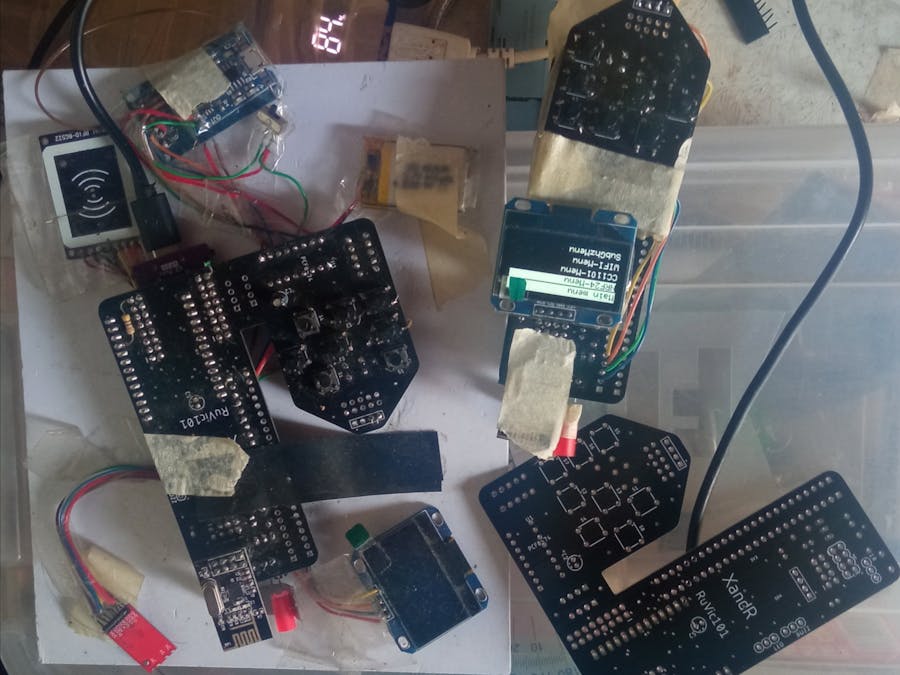

Written in Arduino and Utilize both ESP32 and ESP32S2 in the demo video ESP32(whiteboard test rig) and ESP32S2(semi pocket form) all library uses most used known library for these module....

Support

[](https://www.paypal.me/ruvics/10usd)

DEMO

Evil Portal (NEW)
