The soldering
To better monitor the temperature and humidity of the environment, I designed a solution that is customizable for flexible selection by users, allowing 24/7 monitoring of temperature and humidity of two different places, giving the instant notifications from two directions ( from hardware to software and from software to hardware ), modular in design, and highly scalable for deployment.
SOFTWARE:- Arduino IDE, Visual Studio, and TCP server ( set up via a virtual host).
- Arduino IDE: To drive sensors to collect and send data to the TCP server.
- Visual Studio: To program to get an upper computer (windows APP ) to display the real-time temperature and humidity.
- TCP server: To make the upper computer and the hardware be eligible to read and forward data to each other.

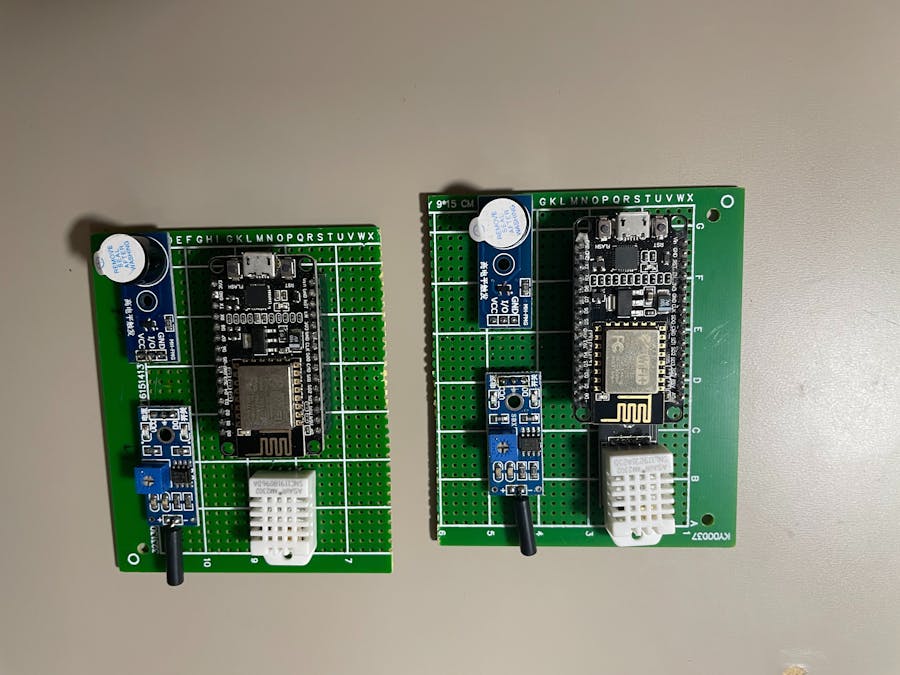

Two DHT22 sensors, two NodeMCU, sodering board, two power banks, and two buzzer modules.
IMPLEMENTATION PROCESS:- Program on Arduino IDE to collect real-time data of temperature and humidity from DHT22.
- Purchase a cloud service (virtual host) and use the C# application service to open the service for forwarding.
- Program on Arduino IDE to make the ESP8266NodeMCU is able to send the real-time data which is collected by DHT22 to the TCP server.
- Use the Network-Assistant ( a software ) to check the communication between the TCP server and the microcontroller(ESP8266NodeMCU).
The picture indicates how the NetworkAssistant check the communication between TCP server and microcontroller.
- Program on VisualStudio to get an upper computer and connect the upper computer to the TCP server. The upper computer can differentiate and display two sets of data collected by two different sensors(DHT22) from two different places, in addition, the upper computer can send an alert to user by instructing the buzzer module to beep.
This picture shows the latest measurement data.
System Block Diagram.
/*********By HuiQiao
*********/
#include <ESP8266WiFi.h>
#include <DHT.h>
#define DHTPIN D5
#define Vibrating_PIN D1
#define LED_PIN 12
#define DHTTYPE DHT22 // DHT 22
DHT dht(DHTPIN, DHTTYPE);
const char *ssid = "your WiFi ";
const char *password = "WiFi password";
const IPAddress serverIP(); //,IP address of your server
uint16_t serverPort = 8098;
WiFiClient client;
int PIN_Sta;
void setup()
{
Serial.begin(115200);
Serial.println();
dht.begin();
pinMode(Vibrating_PIN, INPUT);
pinMode(LED_PIN, OUTPUT);
WiFi.mode(WIFI_STA);
// WiFi.setSleep
WiFi.begin(ssid, password);
while (WiFi.status() != WL_CONNECTED)
{
delay(500);
Serial.print(".");
}
Serial.println("Connected");
Serial.print("IP Address:");
Serial.println(WiFi.localIP());
}
int GetCnt=0;
char SendBuf[50]={0};
char tempBuf[10]={0};
char humiBuf[10]={0};
int SendTimer=0;
void Getdata_WifiSend(void)
{
float humi = dht.readHumidity();
float temp = dht.readTemperature();
if (isnan(humi) || isnan(temp)) {
Serial.println(F("Failed to read from DHT sensor!"));
return;
}
dtostrf(temp,2,2,tempBuf);
dtostrf(humi,2,2,humiBuf);
Serial.print("Humidity: ");
Serial.print(humi);
Serial.println("% Temperature: ");
Serial.print(temp);
Serial.println("C ");
}
int Deifg = 0;
void loop()
{
Serial.println("");
if (client.connect(serverIP, serverPort))
{
Serial.println("");
// client.print("Hello world!");
while (client.connected() || client.available())
{
if(GetCnt++>3000)//3S Get
{
Getdata_WifiSend();
GetCnt=0;
}
if(++SendTimer>1000)//500ms Send
{
SendTimer=0;
sprintf(SendBuf,"ID11,Temperature:%s,Humidity:%s,Vibration:%d\r\n",tempBuf,humiBuf,PIN_Sta);
client.write(SendBuf);
}
PIN_Sta=digitalRead(Vibrating_PIN);
if (client.available())
{
String line = client.readStringUntil('\n');
if(line.indexOf("Set_ID1")!=-1)
{
if(line.indexOf("ON")!=-1)
{
digitalWrite(LED_PIN, HIGH);
}
else if(line.indexOf("OFF")!=-1)
{
digitalWrite(LED_PIN,LOW);
}
}
}
delay(1);
}
Serial.println("");
client.stop();
}
else
{
Serial.println("");
client.stop();
}
}
/*********BY HuiQiao*********/
#include <ESP8266WiFi.h>
#include <DHT.h>
#define DHTPIN 14 // NodeMCU D4
#define Vibrating_PIN 5 // NodeMCU D1
#define DHTTYPE DHT22 // DHT 22
DHT dht(DHTPIN, DHTTYPE);
const char *ssid = "";
const char *password = "";
const IPAddress serverIP();
uint16_t serverPort = 8098;
WiFiClient client;
int PIN_Sta;
void setup()
{
Serial.begin(115200);
Serial.println();
dht.begin();
pinMode(Vibrating_PIN, INPUT);
pinMode(LED_PIN, OUTPUT);
digitalWrite(LED_PIN,HIGH);
WiFi.mode(WIFI_STA);
// WiFi.setSleep
WiFi.begin(ssid, password);
while (WiFi.status() != WL_CONNECTED)
{
delay(500);
Serial.print(".");
}
Serial.println("Connected");
Serial.print("IP Address:");
Serial.println(WiFi.localIP());
}
int GetCnt=0;
char SendBuf[50]={0};
char tempBuf[10]={0};
char humiBuf[10]={0};
int SendTimer=0;
void Getdata_WifiSend(void)
{
float humi = dht.readHumidity();
float temp = dht.readTemperature();
if (isnan(humi) || isnan(temp)) {
Serial.println(F("Failed to read from DHT sensor!"));
return;
}
//temp=25.3;
//humi=55.9;
dtostrf(temp,2,2,tempBuf);
dtostrf(humi,2,2,humiBuf);
Serial.print("Humidity: ");
Serial.print(humi);
Serial.println("% Temperature: ");
Serial.print(temp);
Serial.println("C ");
}
int Deifg = 0;
void loop()
{
Serial.println("");
if (client.connect(serverIP, serverPort))
{
Serial.println("");
// client.print
while (client.connected() || client.available())
{
if(GetCnt++>3000)//3S Get
{
Getdata_WifiSend();
GetCnt=0;
}
if(++SendTimer>1000)//1000ms Send
{
SendTimer=0;
sprintf(SendBuf,"ID22,Temperature:%s,Humidity:%s,Vibration:%d\r\n",tempBuf,humiBuf,PIN_Sta);
client.write(SendBuf);
}
PIN_Sta=digitalRead(Vibrating_PIN);
if (client.available())
{
String line = client.readStringUntil('\n');
if(line.indexOf("Set_ID2")!=-1)
{
if(line.indexOf("ON")!=-1)
{
digitalWrite(LED_PIN, HIGH);
}
else if(line.indexOf("OFF")!=-1)
{
digitalWrite(LED_PIN,LOW);
}
}
}
delay(1);
}
Serial.println("");
client.stop();
}
else
{
Serial.println("");
client.stop();
}
}
/*******By HuiQiao*********/
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Net;
using System.Net.Sockets;
using System.Text;
using System.Text.RegularExpressions;
using System.Threading;
using System.Windows.Forms;
using System.Runtime.InteropServices;
namespace TCPClient
{
public partial class Form1 : Form
{
private TcpClient myTcpClient = null;// TcpClient
Thread ConnectThread;
string ipAddress;//ip
int Port = 0;
private bool Conctifg = false;
bool LianJSta = false;
private NetworkStream networkstrem = null;
private Thread ReceiveThread;
public Form1()
{
InitializeComponent();
}
public class APIs
{
[DllImport("Kernel32.dll")]
public static extern bool Beep(int frequency, int duration);
}
private void Form1_Load(object sender, EventArgs e)
{
//getIPAddress();//.IP,
}
public static string Substring(string text, string start, string end)
{
Regex rg = new Regex("(?<=(" + start + "))[.\\s\\S]*?(?=(" + end + "))", RegexOptions.Multiline | RegexOptions.Singleline);
string NameText = rg.Match(text).Value;
return NameText;
}
bool ifg = false;
private void ConnectMethod()
{
myTcpClient = new TcpClient(); //myTcpClient
try
{
myTcpClient.Connect(ipAddress, Port);
networkstrem = myTcpClient.GetStream();
ReceiveThread = new Thread(ReceiveDataMethod);
ReceiveThread.Start();
Invoke((new Action(() =>
{
button1.Text = "Disconnect";
LianJSta = true;
})));
}
catch (Exception)
{
Invoke((new Action(() =>
{
button1.Text = "Connect";
})));
try { ReceiveThread.Abort(); }
catch { }
try { networkstrem.Dispose(); }
catch { }
try { myTcpClient.Close(); }//TCP
catch { }
}
}
public static string StringMidStrEx(string sourse, string startstr, string endstr)
{
string result = string.Empty;
int startindex, endindex;
try
{
startindex = sourse.IndexOf(startstr);
if (startindex == -1)
return result;
string tmpstr = sourse.Substring(startindex + startstr.Length);
endindex = tmpstr.IndexOf(endstr);
if (endindex == -1)
return result;
result = tmpstr.Remove(endindex);
}
catch (Exception ex)
{
Console.WriteLine("MidStrEx Err:" + ex.Message);
}
return result;
}
private void ReceiveDataMethod()
{
int RecvCnt = 0;
byte[] recvBytes = new byte[1024*1024];
while (true)
{
if (Conctifg)//
{
break;
}
try
{
//
if ((myTcpClient.Client.Poll(20, SelectMode.SelectRead)) && (myTcpClient.Client.Available == 0))
{
myTcpClient.Close();
}
RecvCnt = networkstrem.Read(recvBytes, 0, recvBytes.Length);
Invoke((new Action(() =>
{
string RxStr = new ASCIIEncoding().GetString(recvBytes, 0, RecvCnt);
if (RxStr.IndexOf("Temperature") != -1 && RxStr.IndexOf("\r\n") != -1)
{
string tempStr; string humiStr; string VibStr; string Kqsd; string Gz;
tempStr = StringMidStrEx(RxStr, "Temperature:", ",");
humiStr = StringMidStrEx(RxStr, "Humidity:", ",");
VibStr = StringMidStrEx(RxStr, "Vibration:", "\r\n");
if (tempStr != "" && humiStr != "" && VibStr != "" )
{
float Tempnum = float.Parse(tempStr);
float HumiNum=float.Parse(humiStr);
Text1.Text = tempStr;
Text2.Text = humiStr;
Text3.Text = VibStr;
if (Tempnum < 29|| HumiNum<40|| HumiNum>70)
{
ifg = true;
}
else
{
ifg = false;
}
}
}
})));
}
catch (Exception ex)//
{
//
try
{
Invoke((new Action(() =>
{
button1.Text = "Connect";
})));
}
catch
{
}
try {
ReceiveThread.Abort();
break;//break
}
catch {
}
try {
networkstrem.Dispose();
}
catch { }
try {
myTcpClient.Close();
}//TCP
catch { }
}
}
}
private void button1_Click(object sender, EventArgs e)
{
if (button1.Text == "Connect")
{
ipAddress = comboBox1.Text.ToString();//IP
Port = Convert.ToInt32(textBox1.Text.ToString());
ConnectThread = new Thread(ConnectMethod);
ConnectThread.Start();
Conctifg = false;
timer1.Start();
}
else
{
try {
Conctifg = true;
ReceiveThread.Abort();
networkstrem.Dispose();
myTcpClient.Close();//tcp
timer1.Stop();
} catch {
}
Invoke((new Action(() =>
{
button1.Text = "Connect";
})));
LianJSta = false;
}
}
private void comboBox1_DropDown(object sender, EventArgs e)
{
// getIPAddress();//ip
}
private void Form1_FormClosed(object sender, FormClosedEventArgs e)
{
try {
ReceiveThread.Abort();
}
catch { }
try { networkstrem.Dispose(); }
catch { }
try { myTcpClient.Close(); }//TCP
catch { }
System.Environment.Exit(0);
}
private static byte[] strToToHexByte(String hexString)
{
int i;
bool Flag = false;
hexString = hexString.Replace(" ", "");//
if ((hexString.Length % 2) != 0)
{
Flag = true;
}
if (Flag == true)
{
byte[] returnBytes = new byte[(hexString.Length + 1) / 2];
try
{
for (i = 0; i < (hexString.Length - 1) / 2; i++)
{
returnBytes[i] = Convert.ToByte(hexString.Substring(i * 2, 2), 16);
}
returnBytes[returnBytes.Length - 1] = Convert.ToByte(hexString.Substring(hexString.Length - 1, 1).PadLeft(2, '0'), 16);
}
catch
{
for (i = 0; i < returnBytes.Length; i++)
{
returnBytes[i] = 0;
}
MessageBox.Show("16A-F,0", "");
}
return returnBytes;
}
else
{
byte[] returnBytes = new byte[(hexString.Length) / 2];
try
{
for (i = 0; i < returnBytes.Length; i++)
{
returnBytes[i] = Convert.ToByte(hexString.Substring(i * 2, 2), 16);
}
}
catch
{
for (i = 0; i < returnBytes.Length; i++)
{
returnBytes[i] = 0;
}
MessageBox.Show("16A-F,0", "");
}
return returnBytes;
}
}
string ste = "";
int count = 0;
bool flag = false;
private void timer1_Tick_1(object sender, EventArgs e)
{
if (ifg == true)
{
if (flag == false)
{
APIs.Beep(2000, 500);
flag = true;
}
else
{
if (count++ > 50)
{
count = 0;
APIs.Beep(2000, 500);
}
}
}
}
}
}
